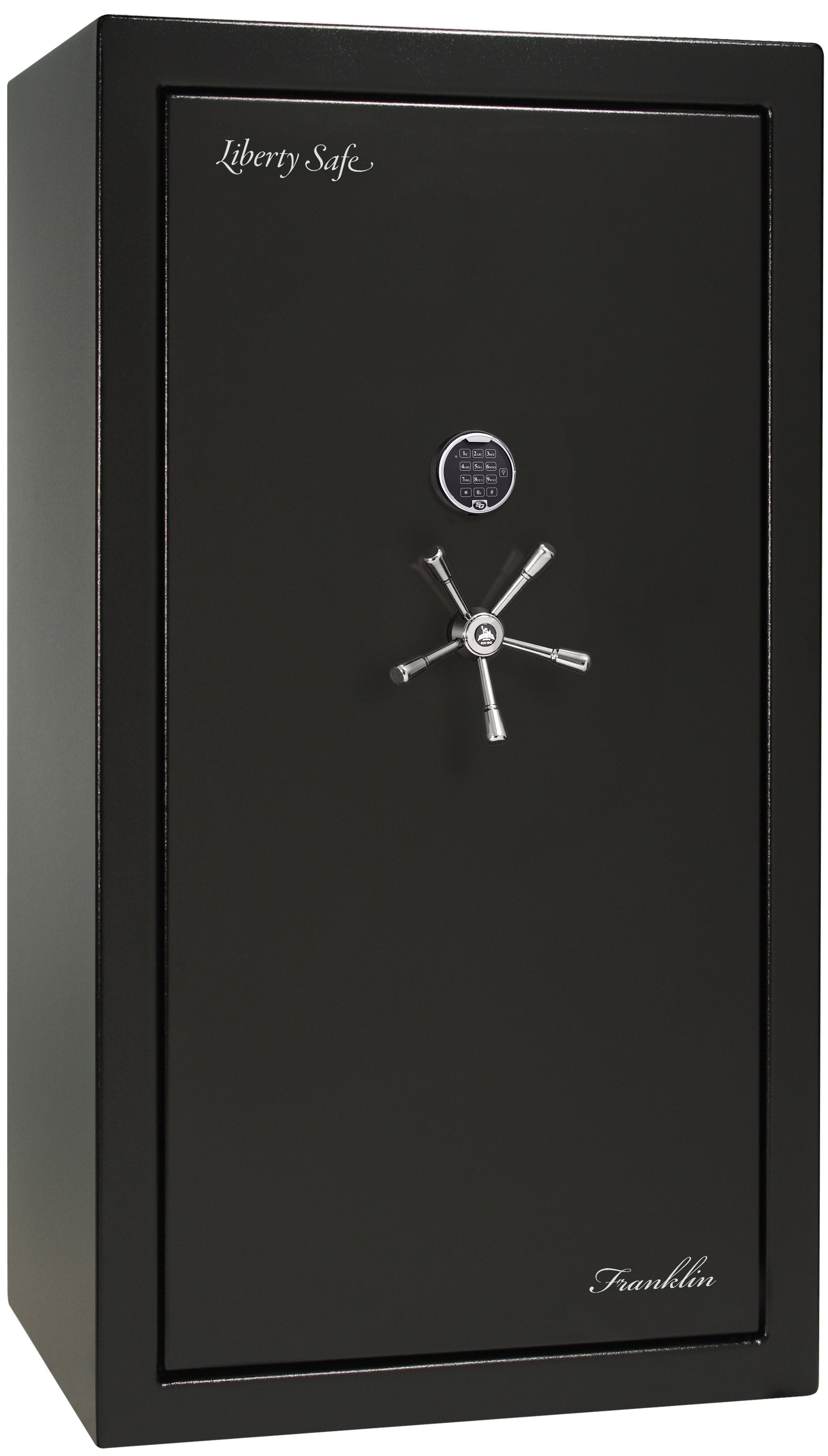

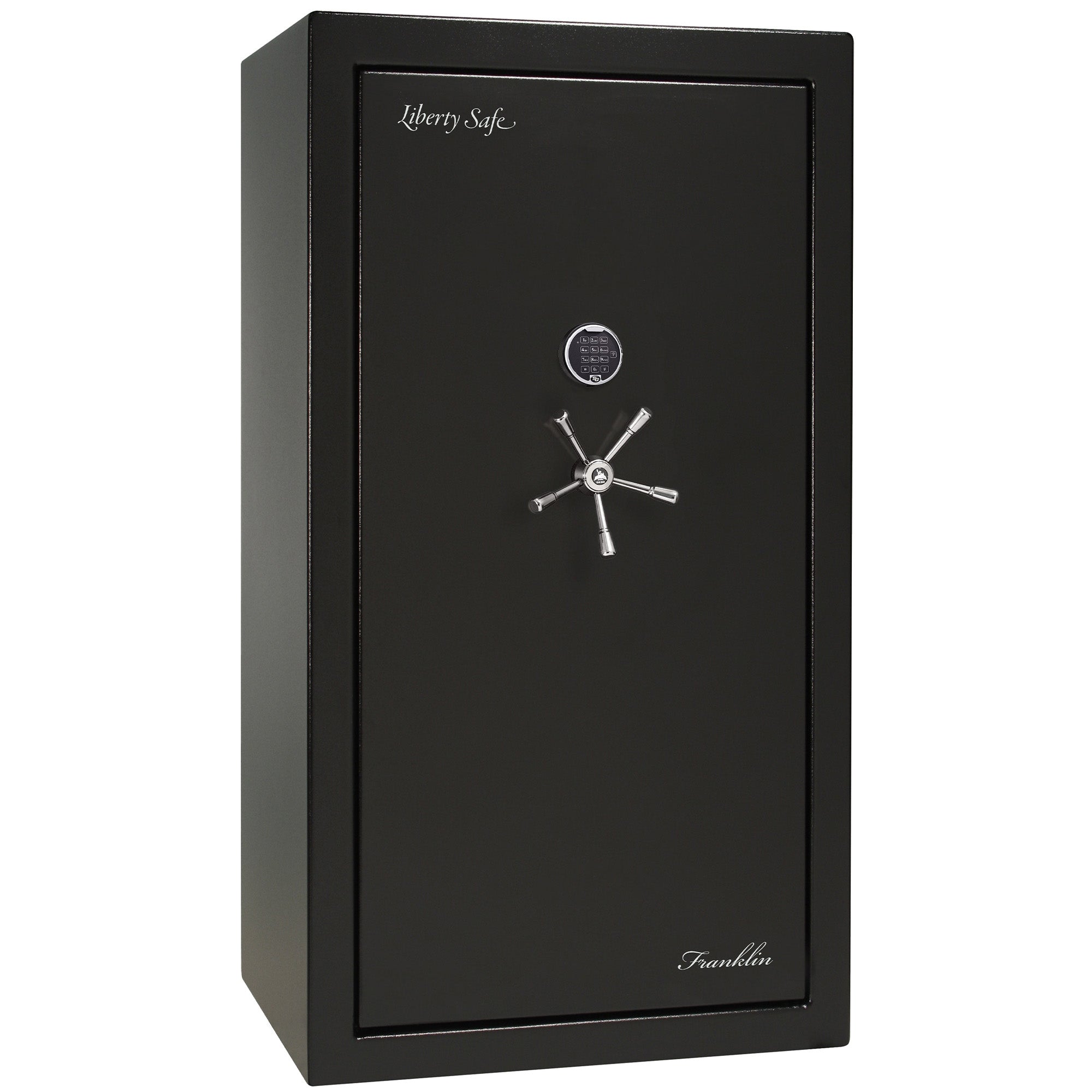

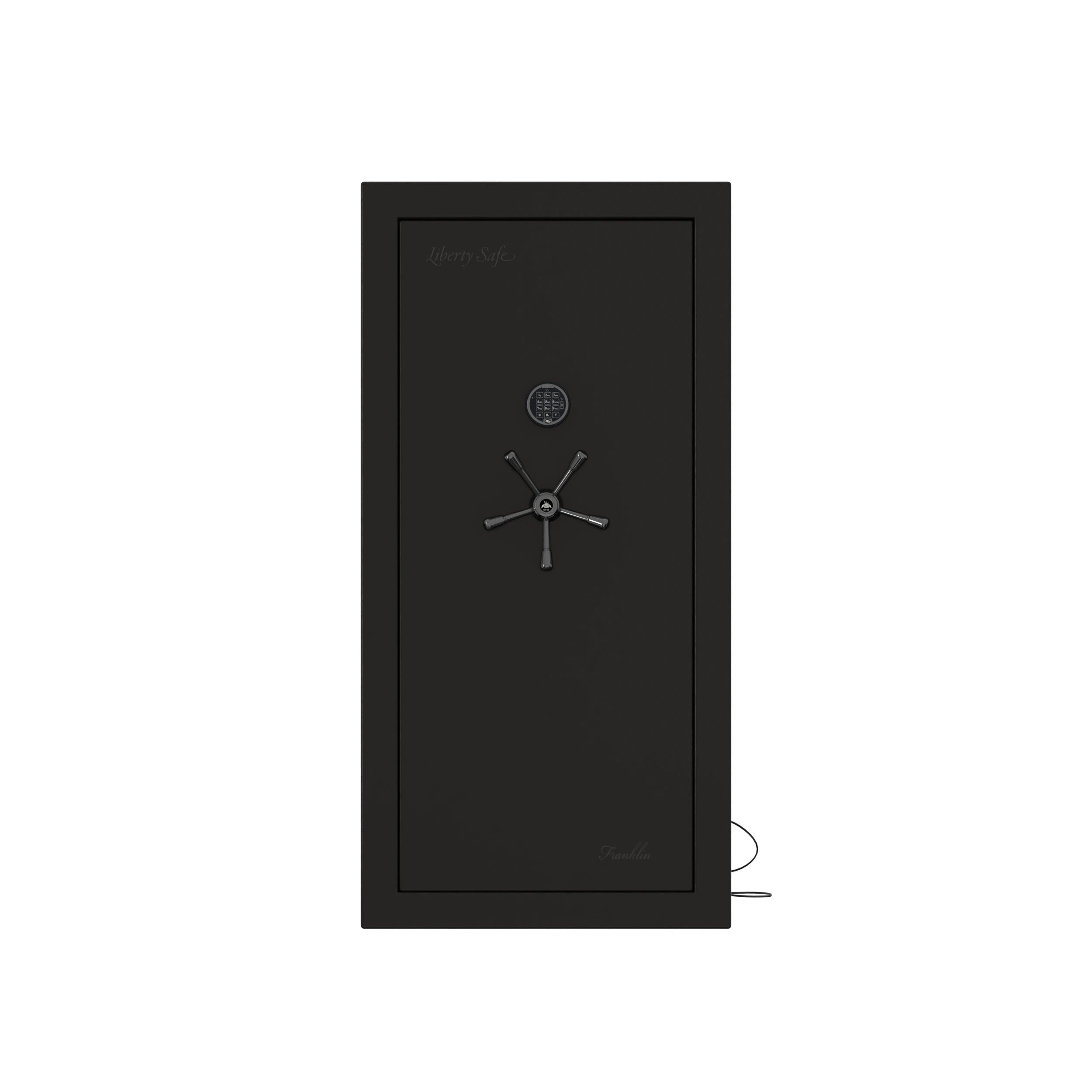

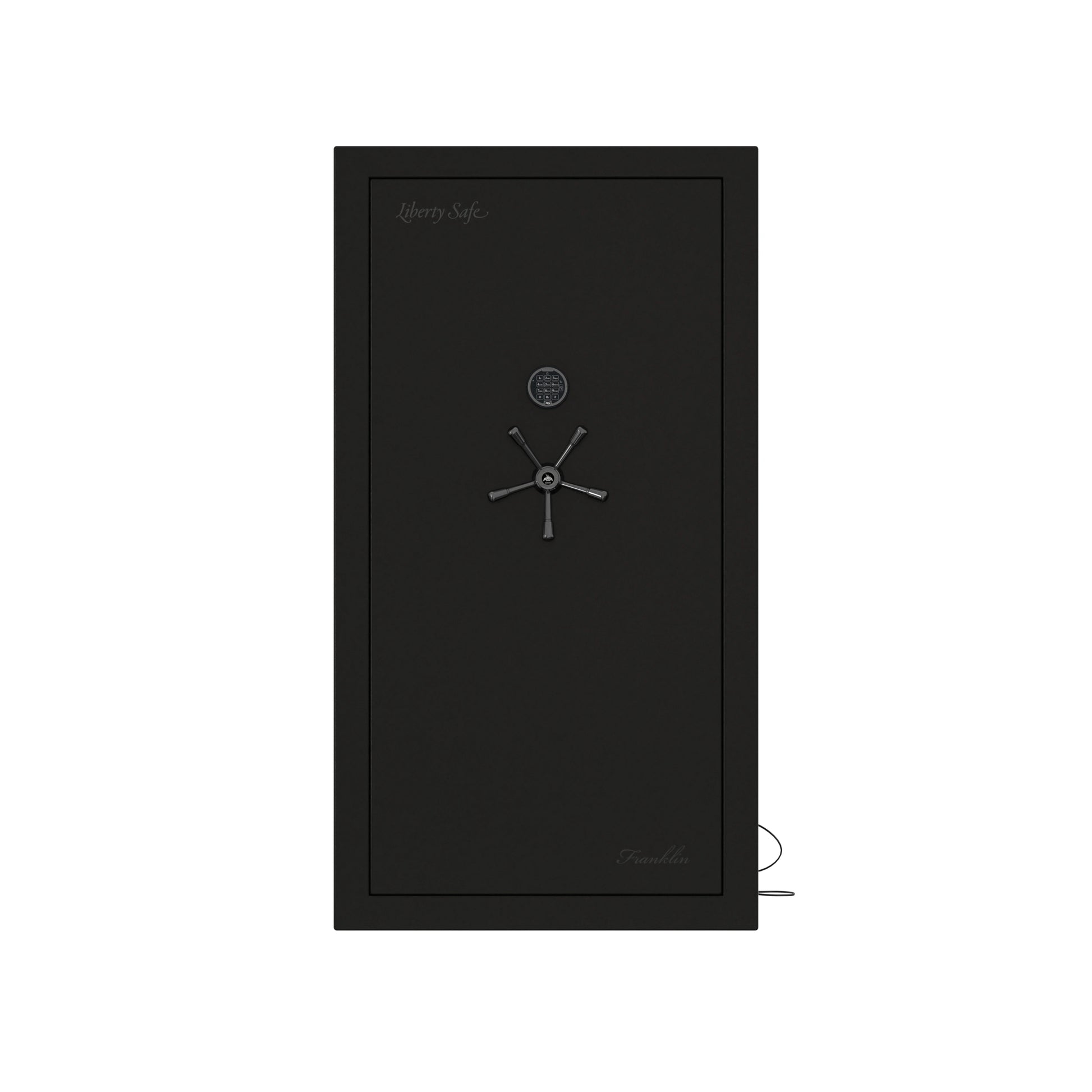

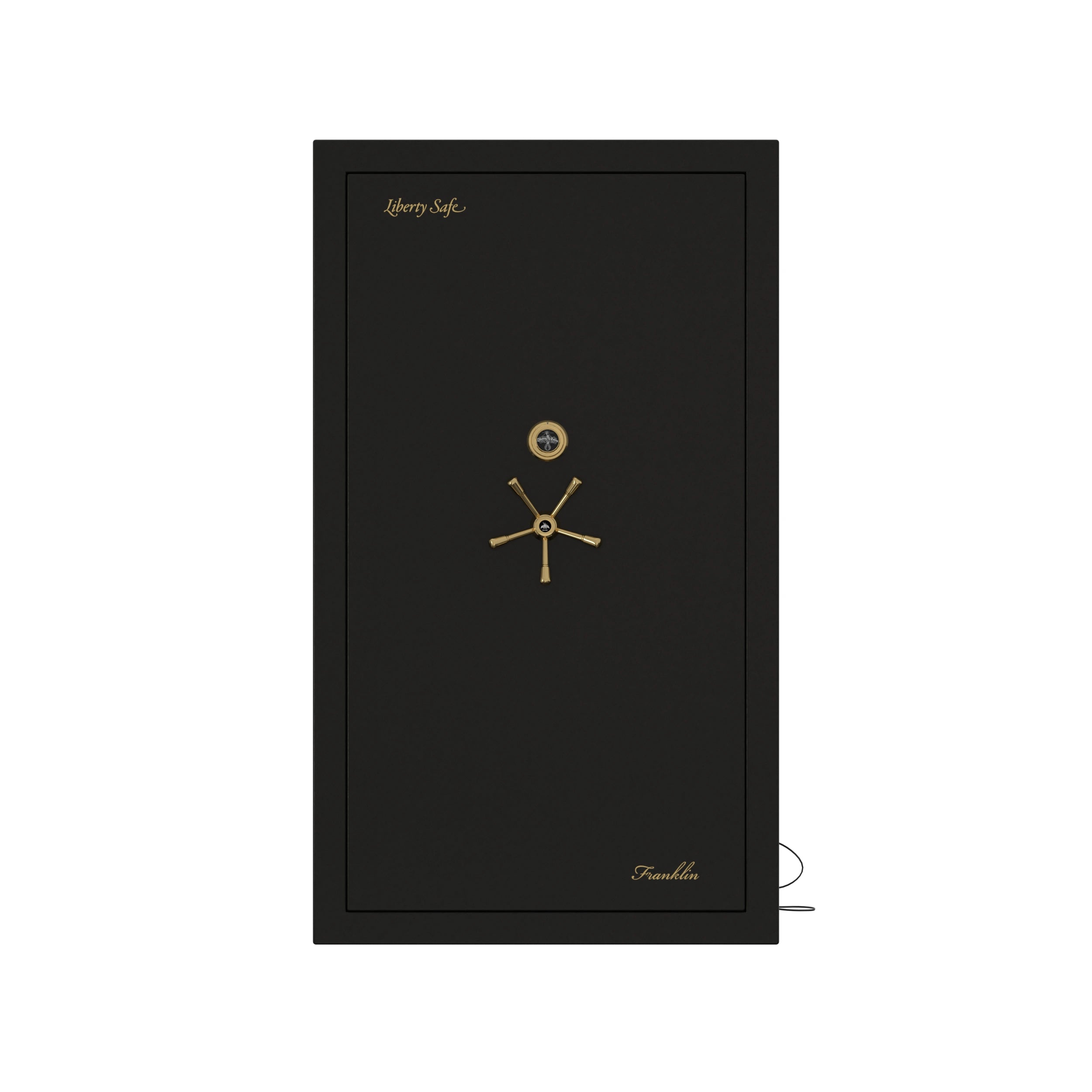

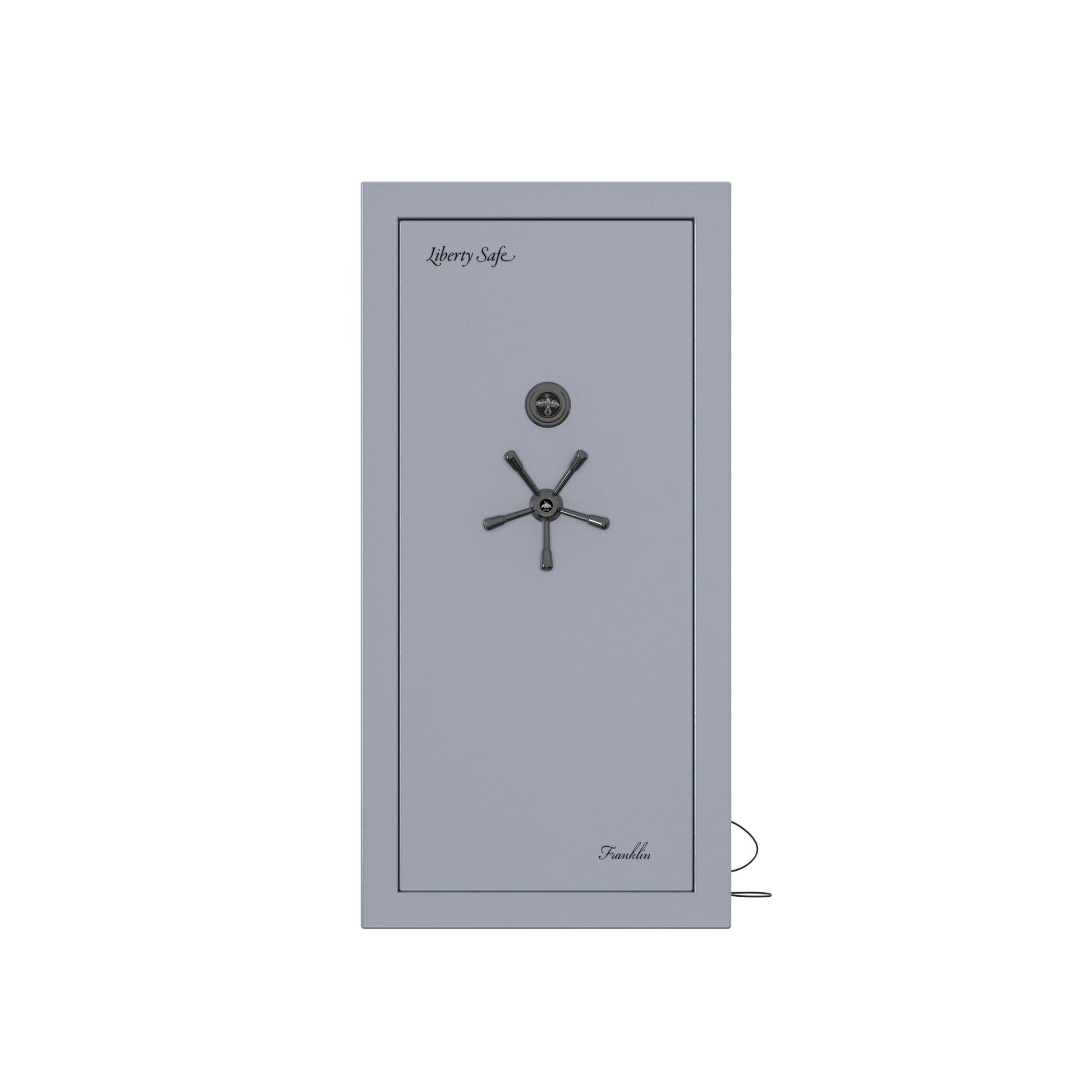

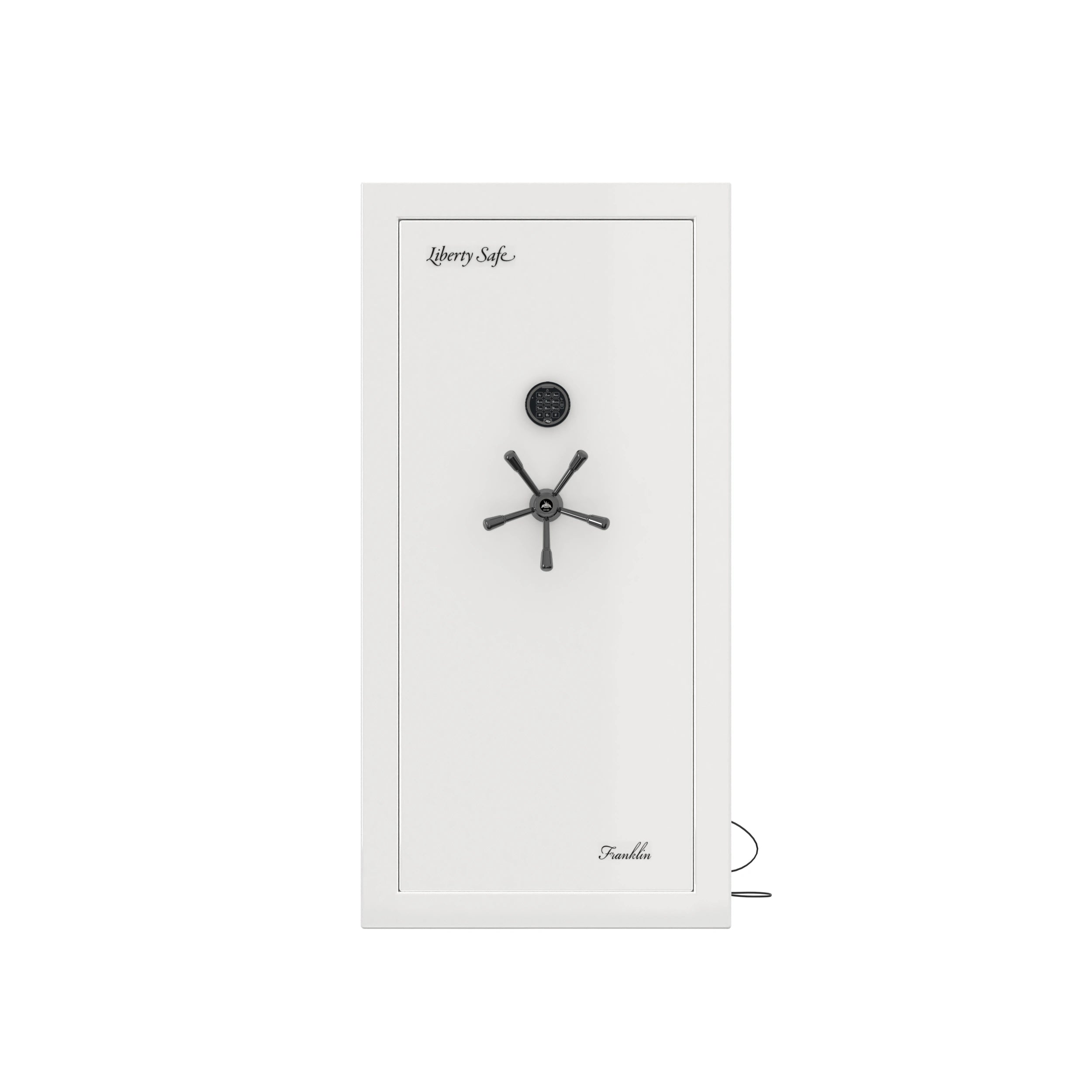

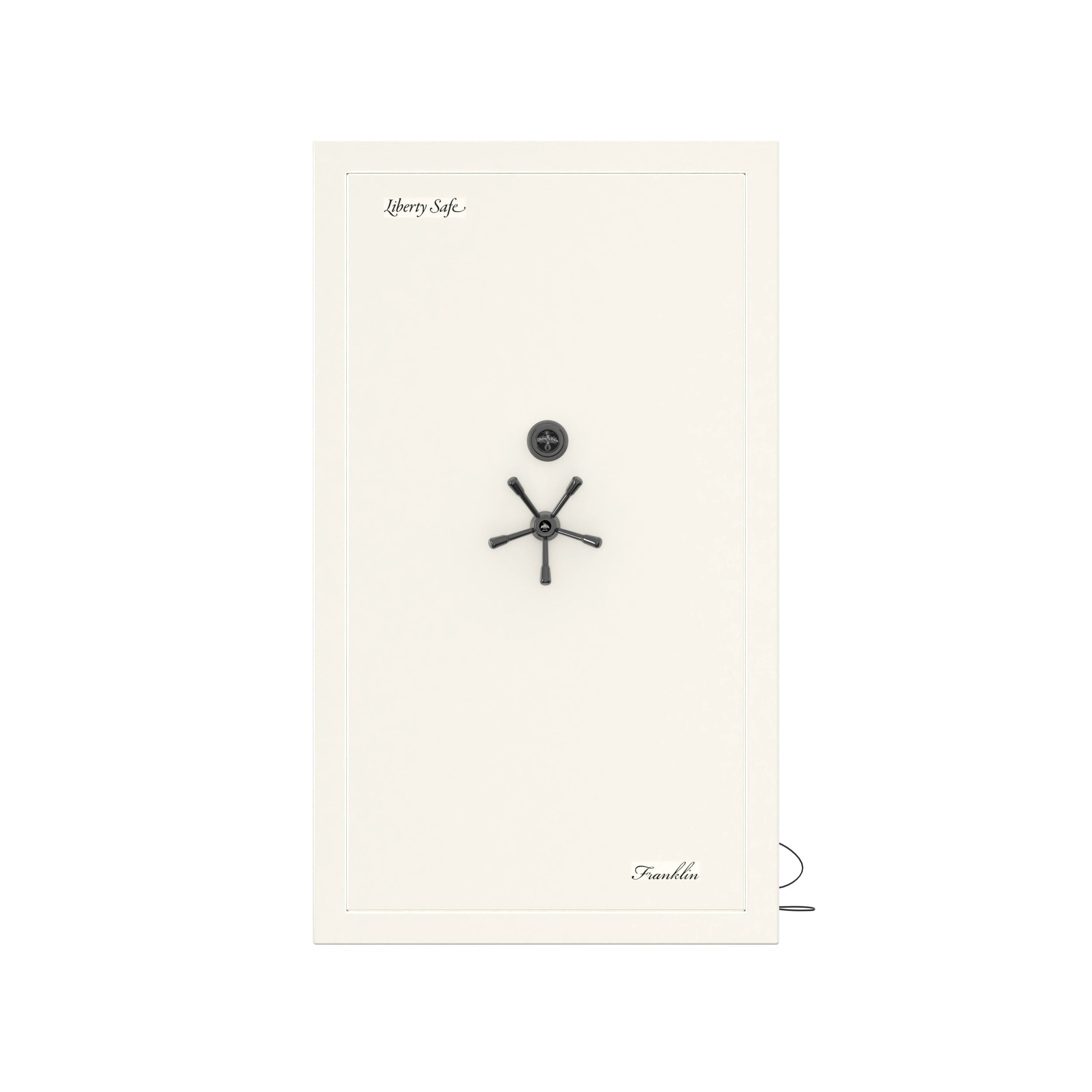

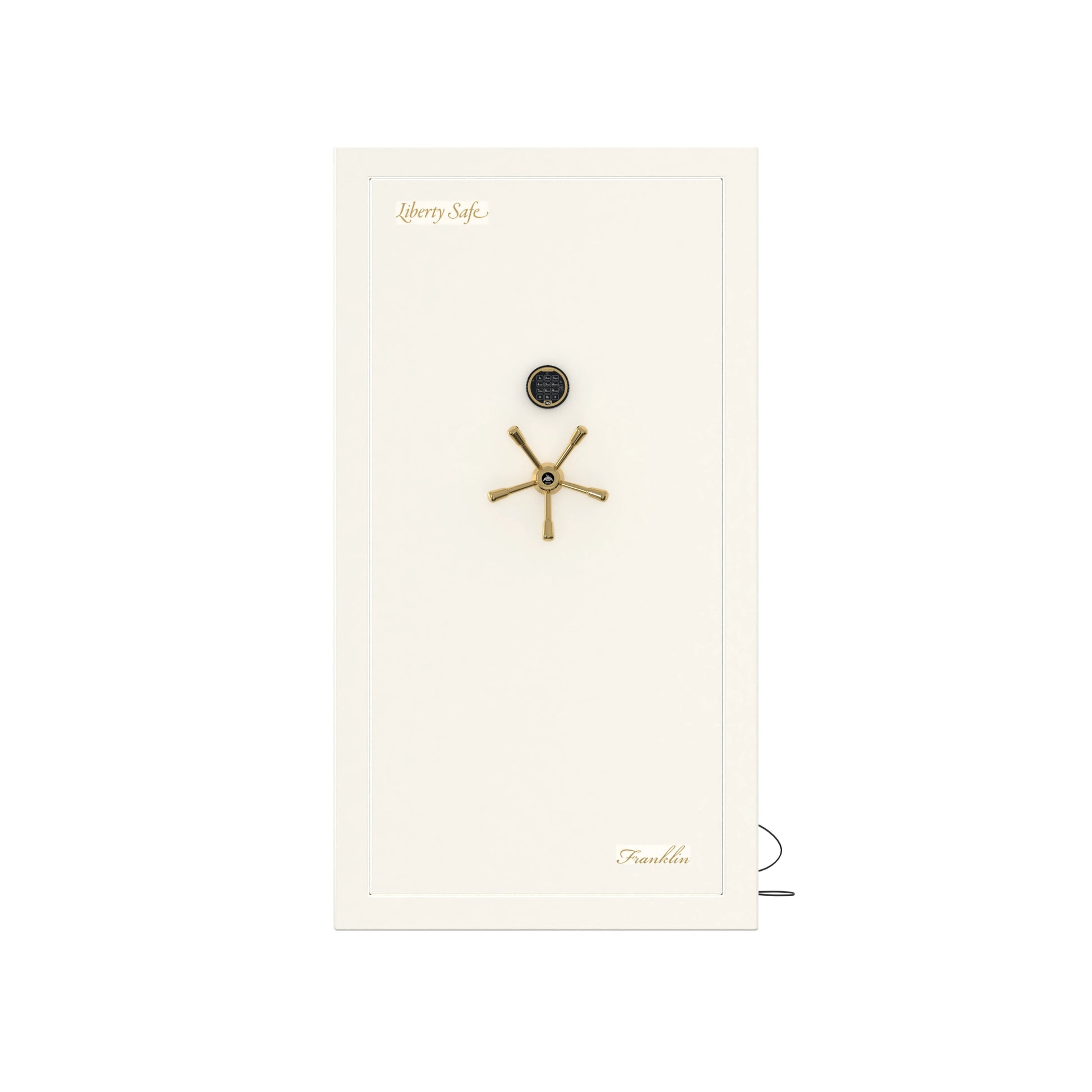

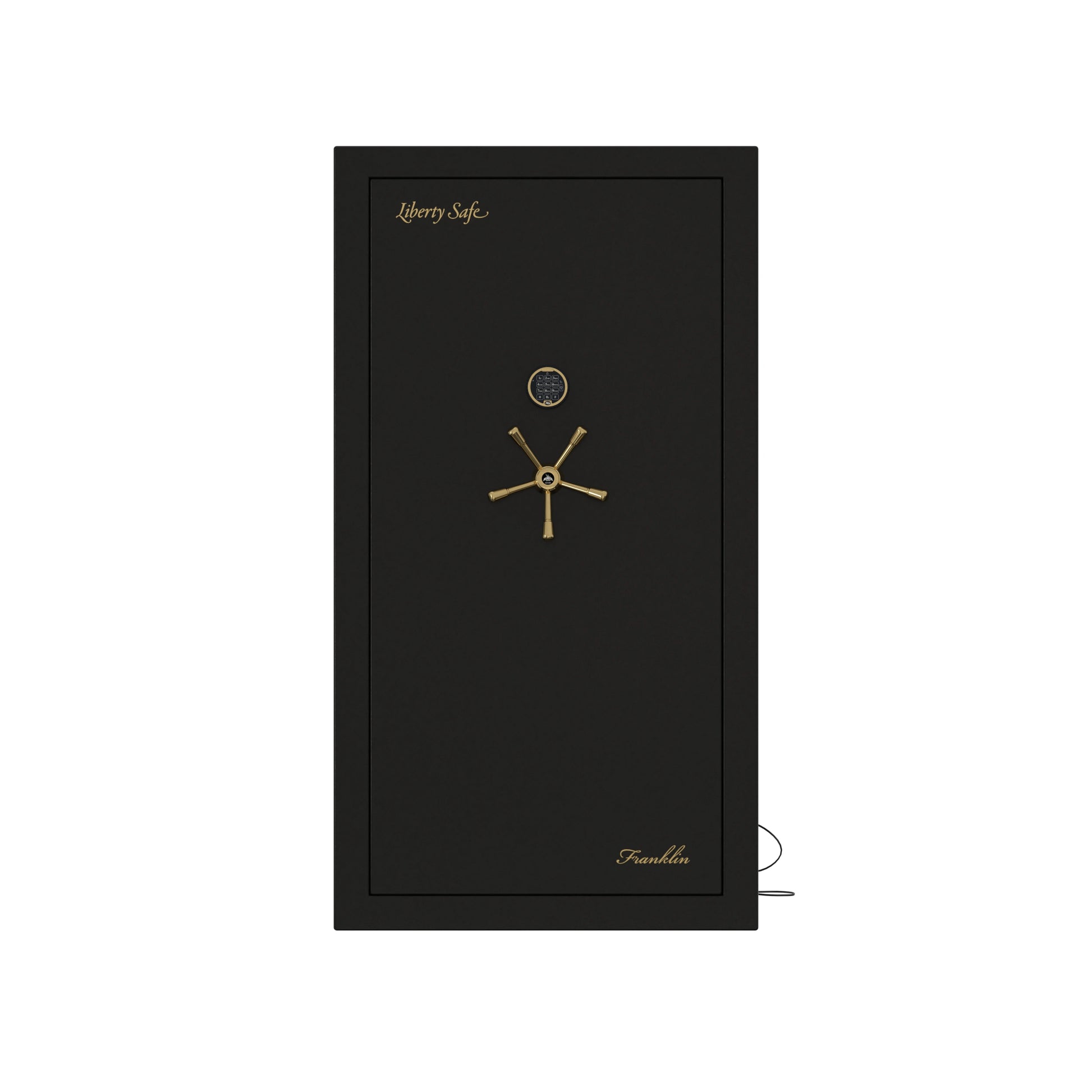

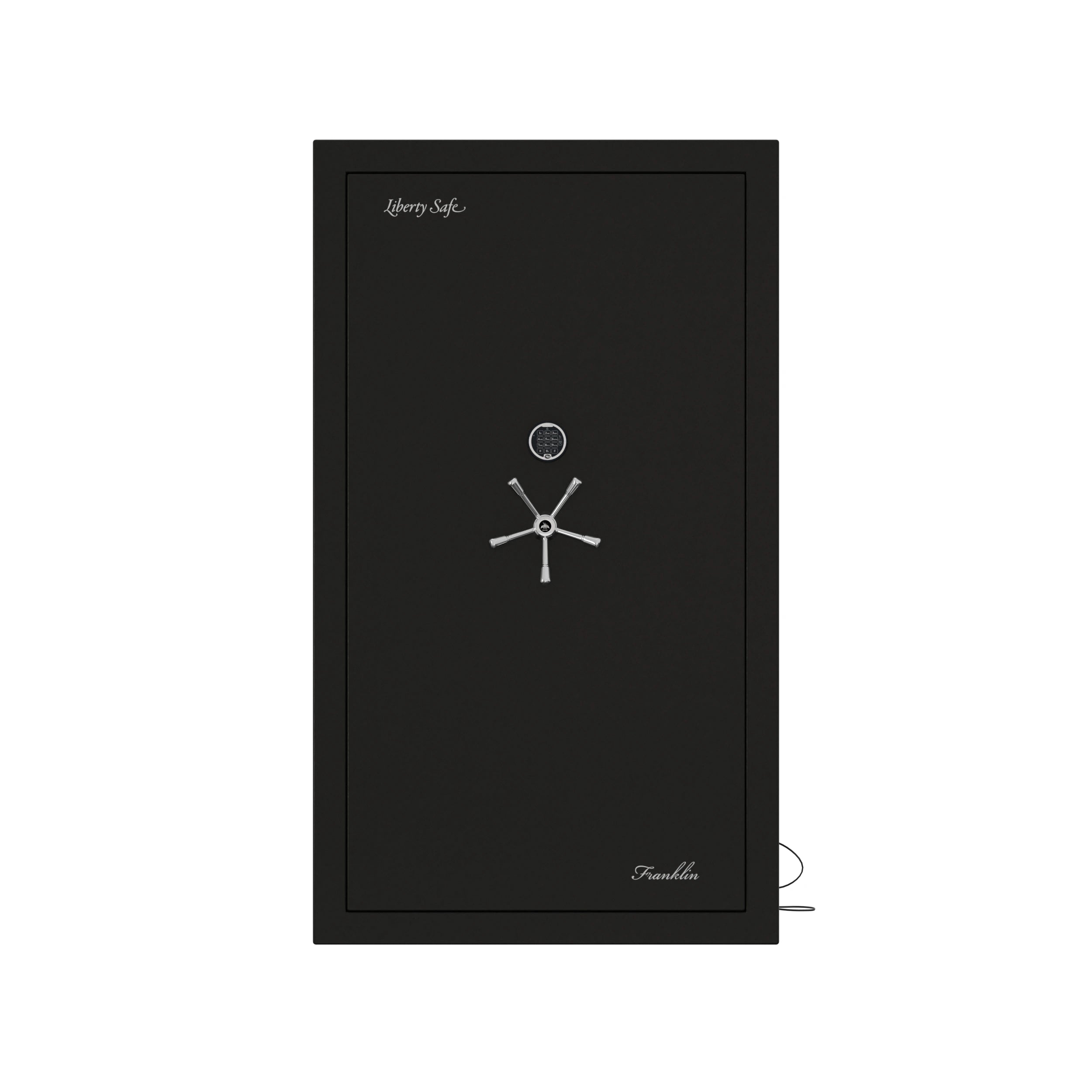

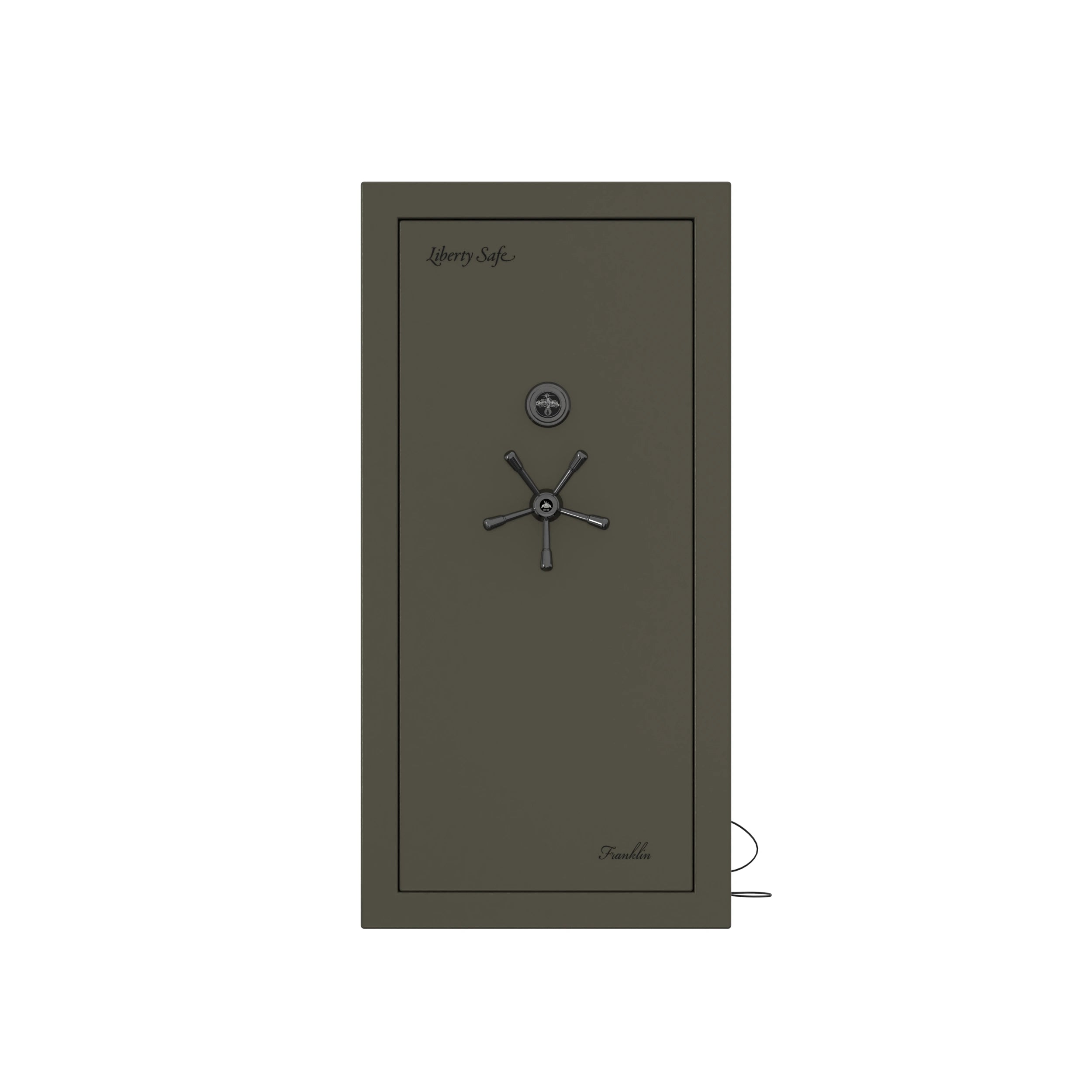

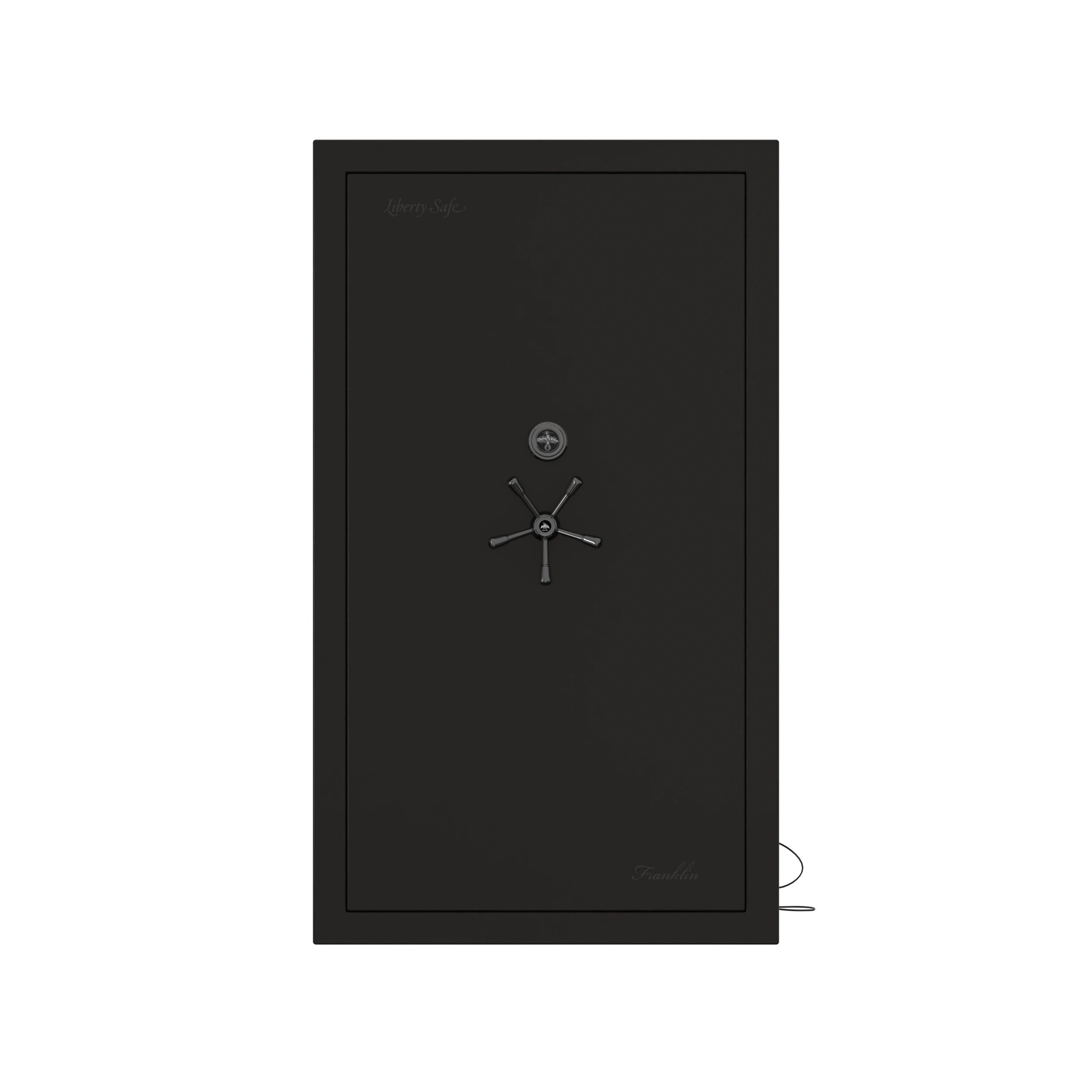

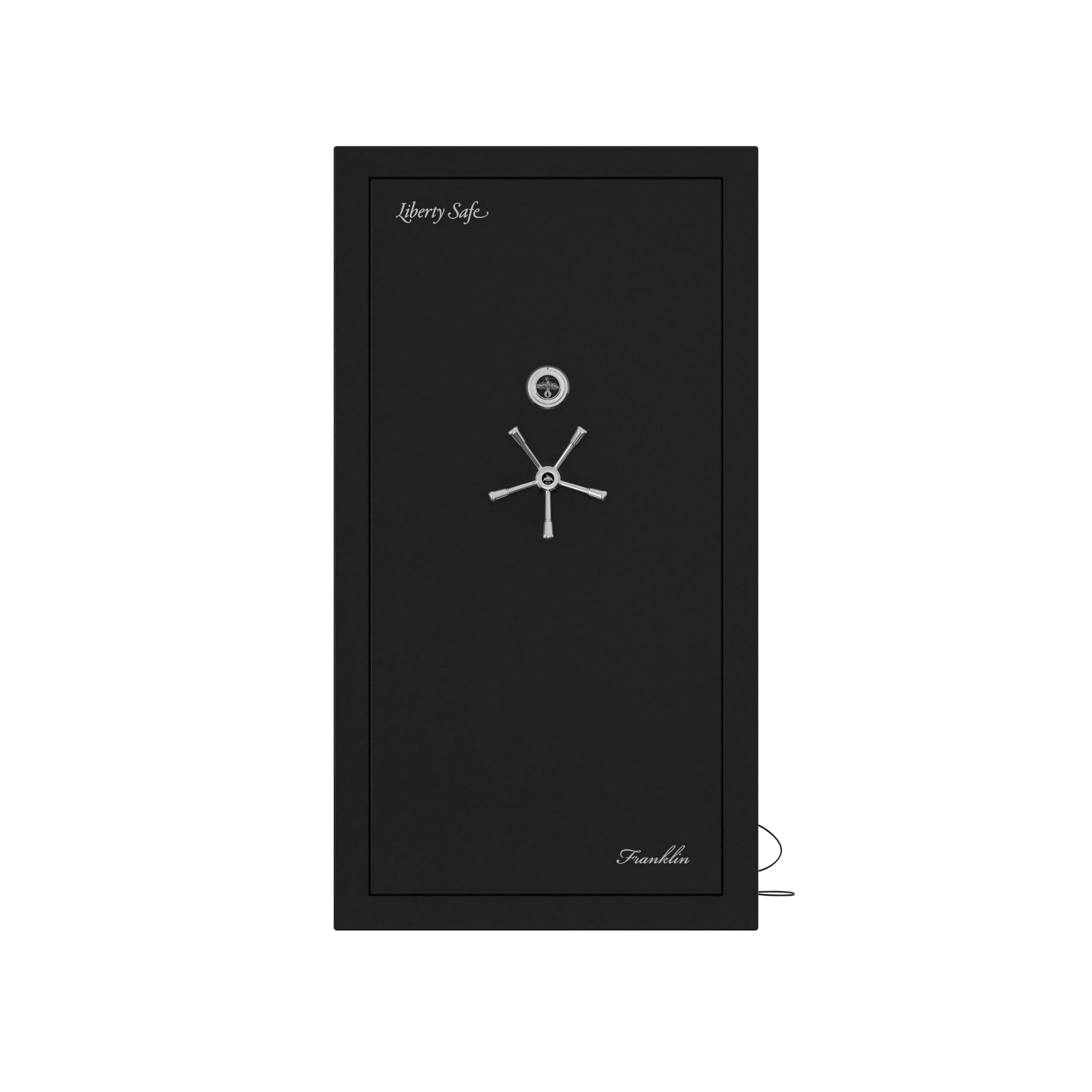

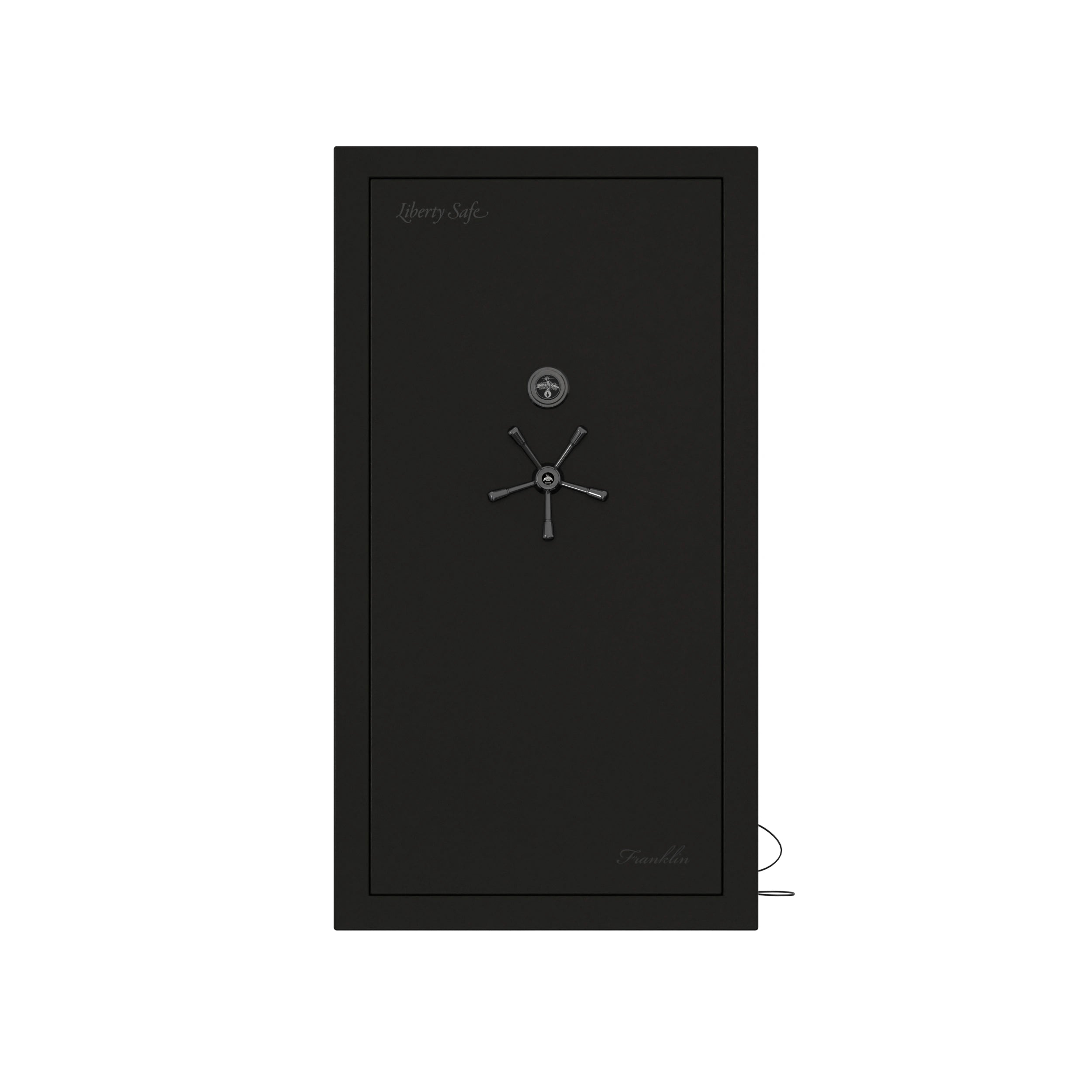

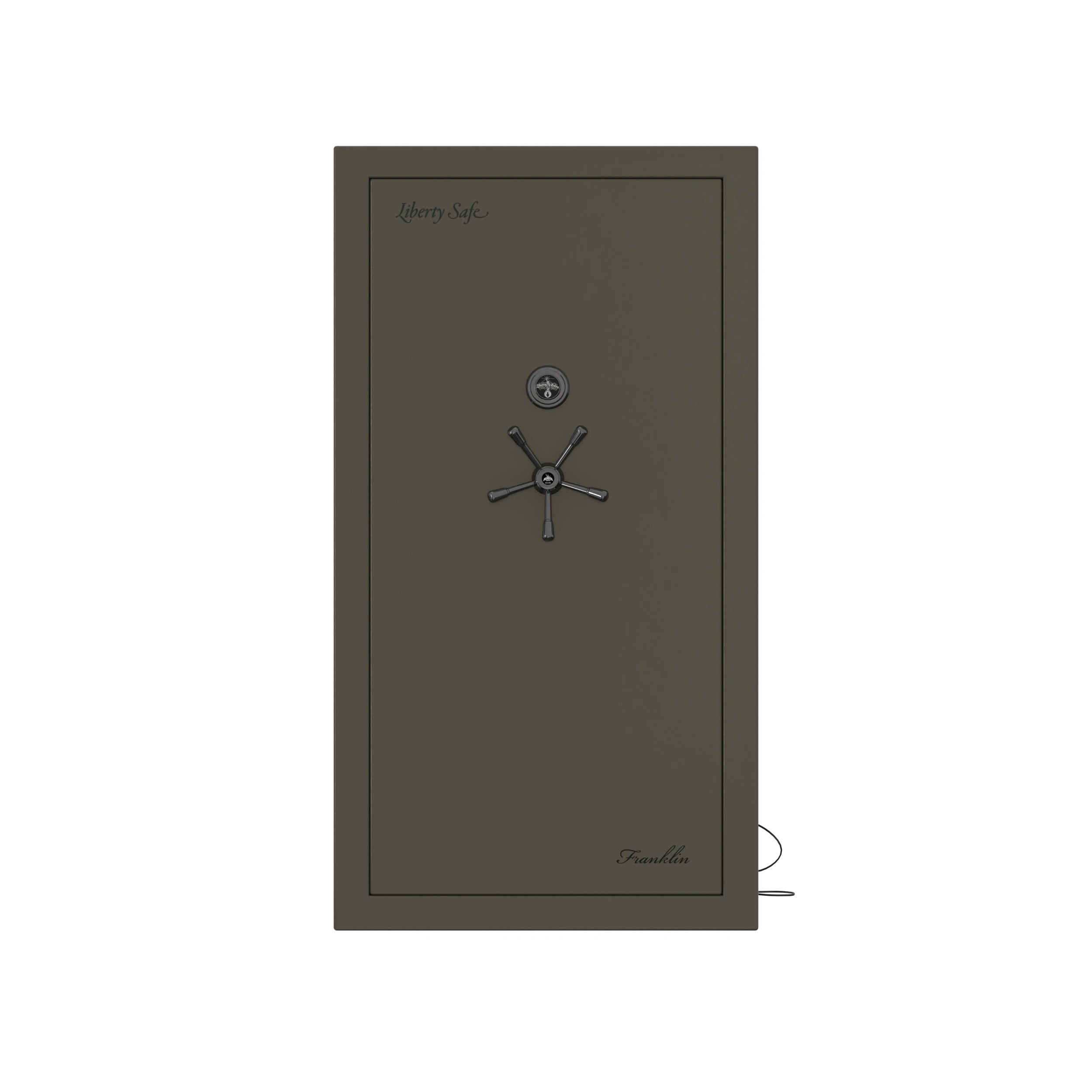

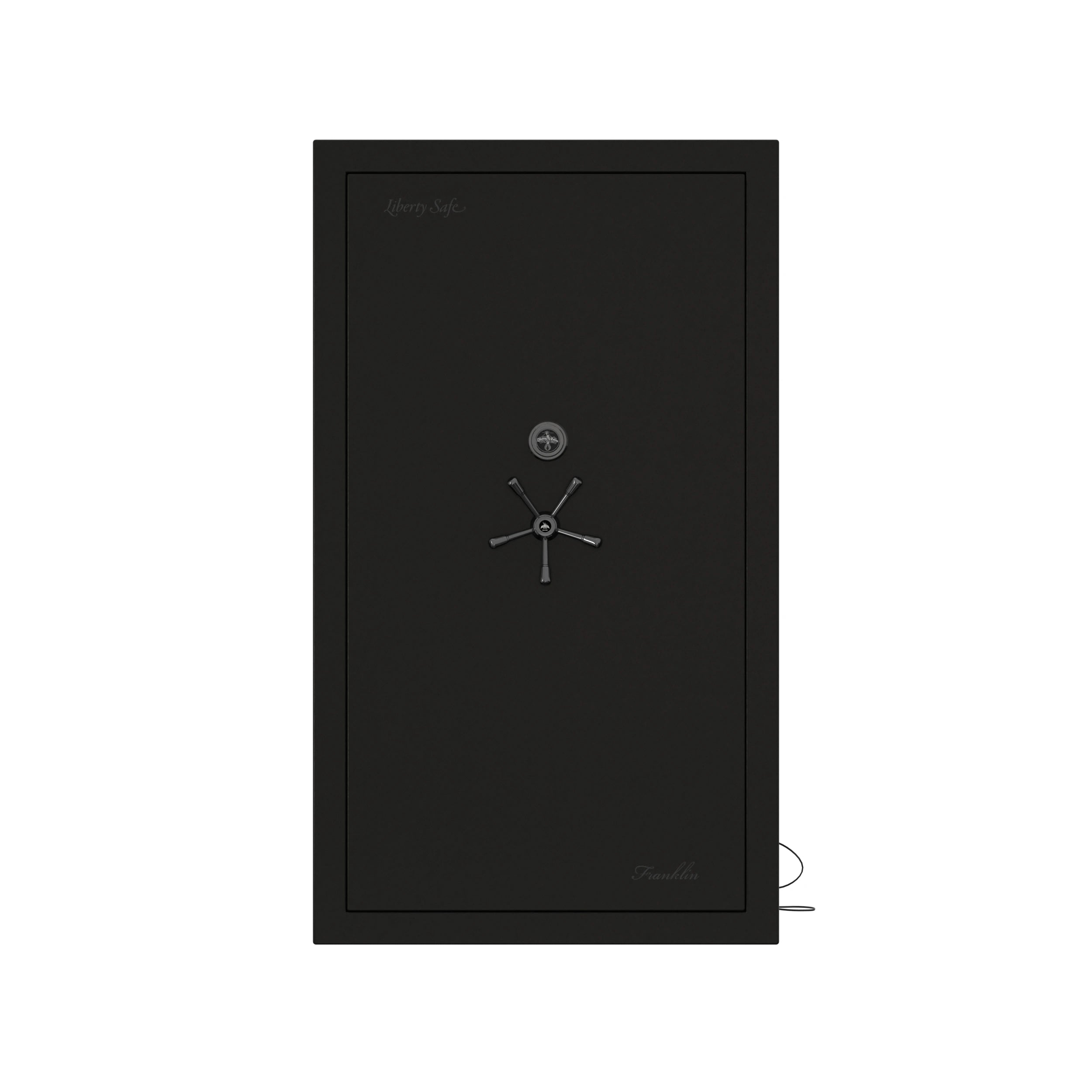

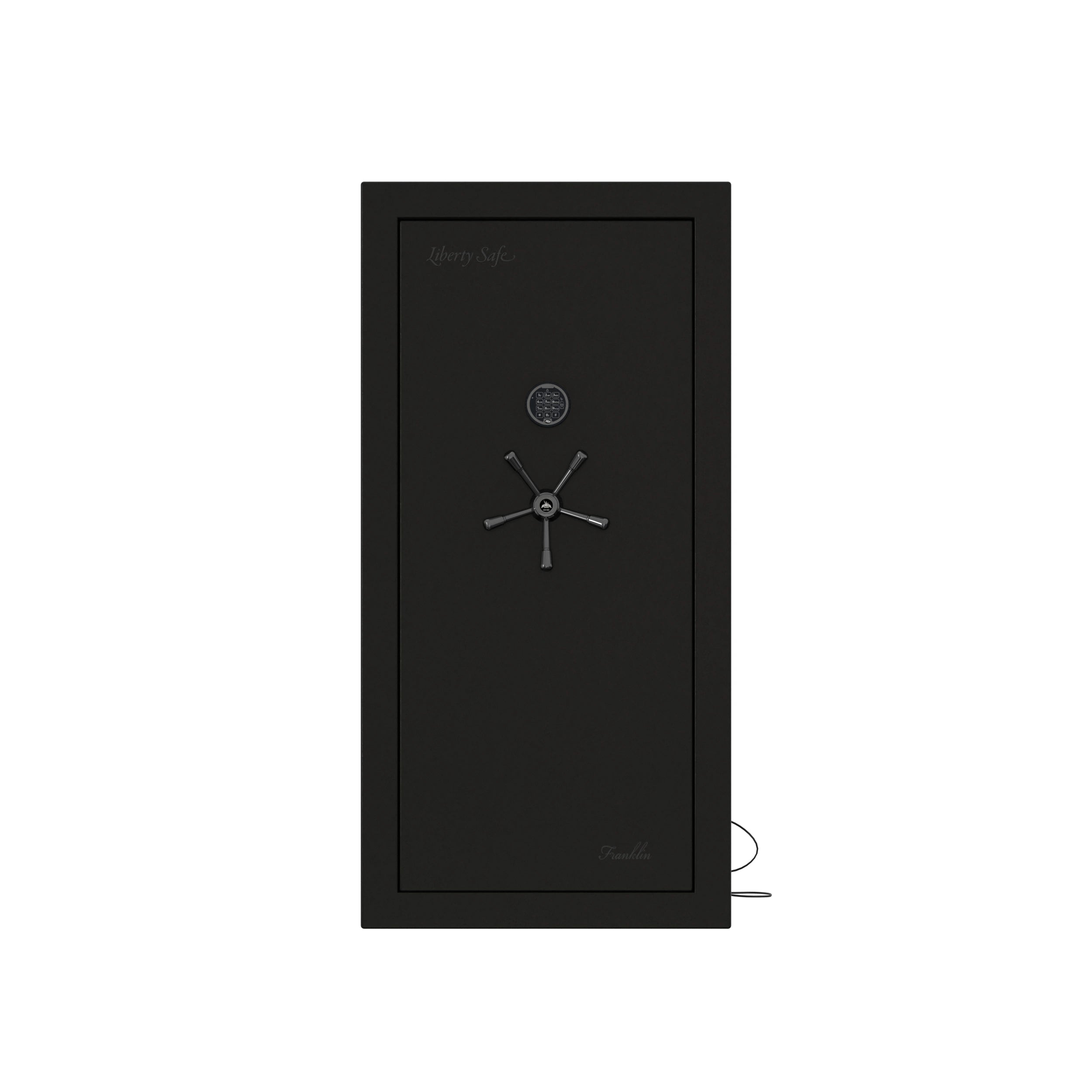

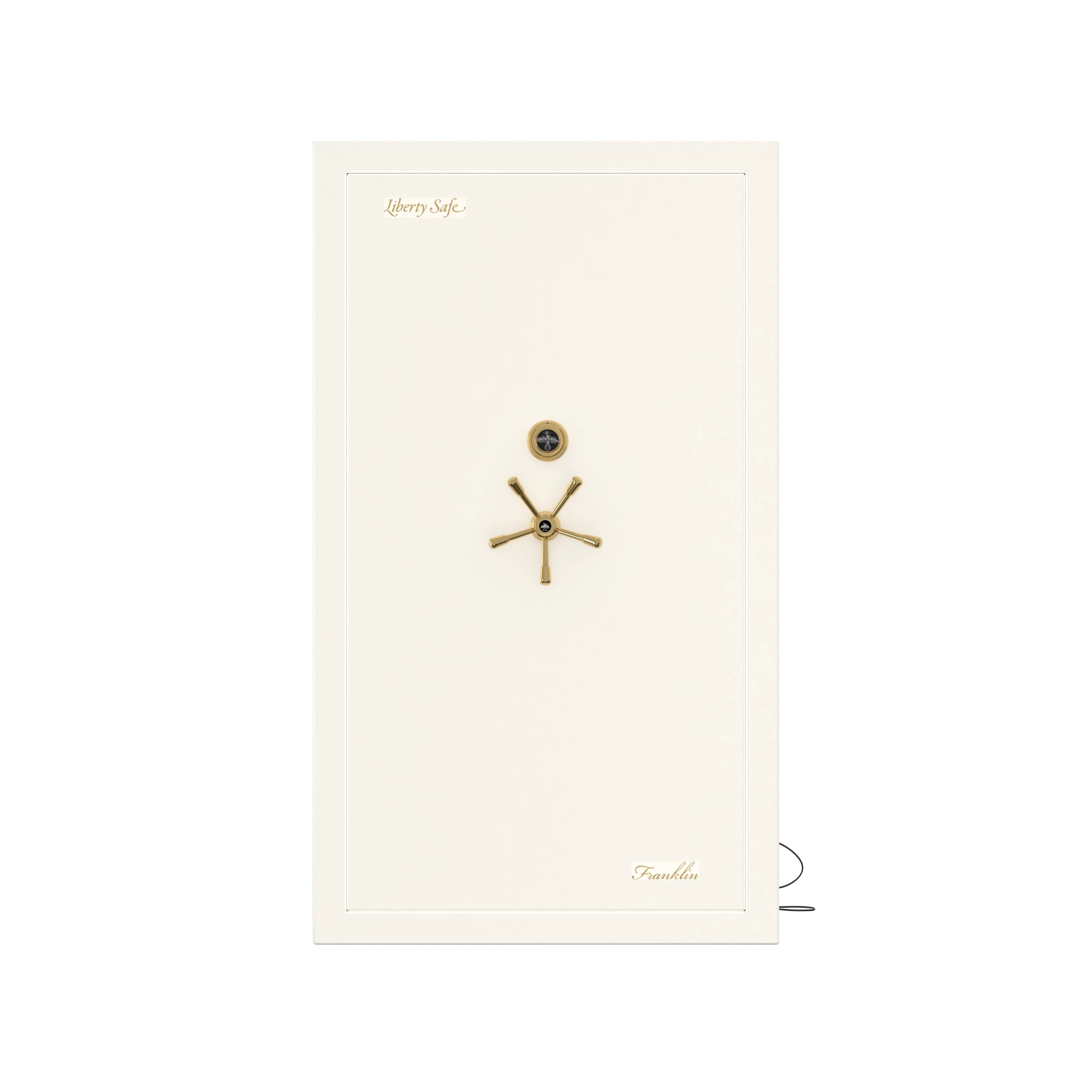

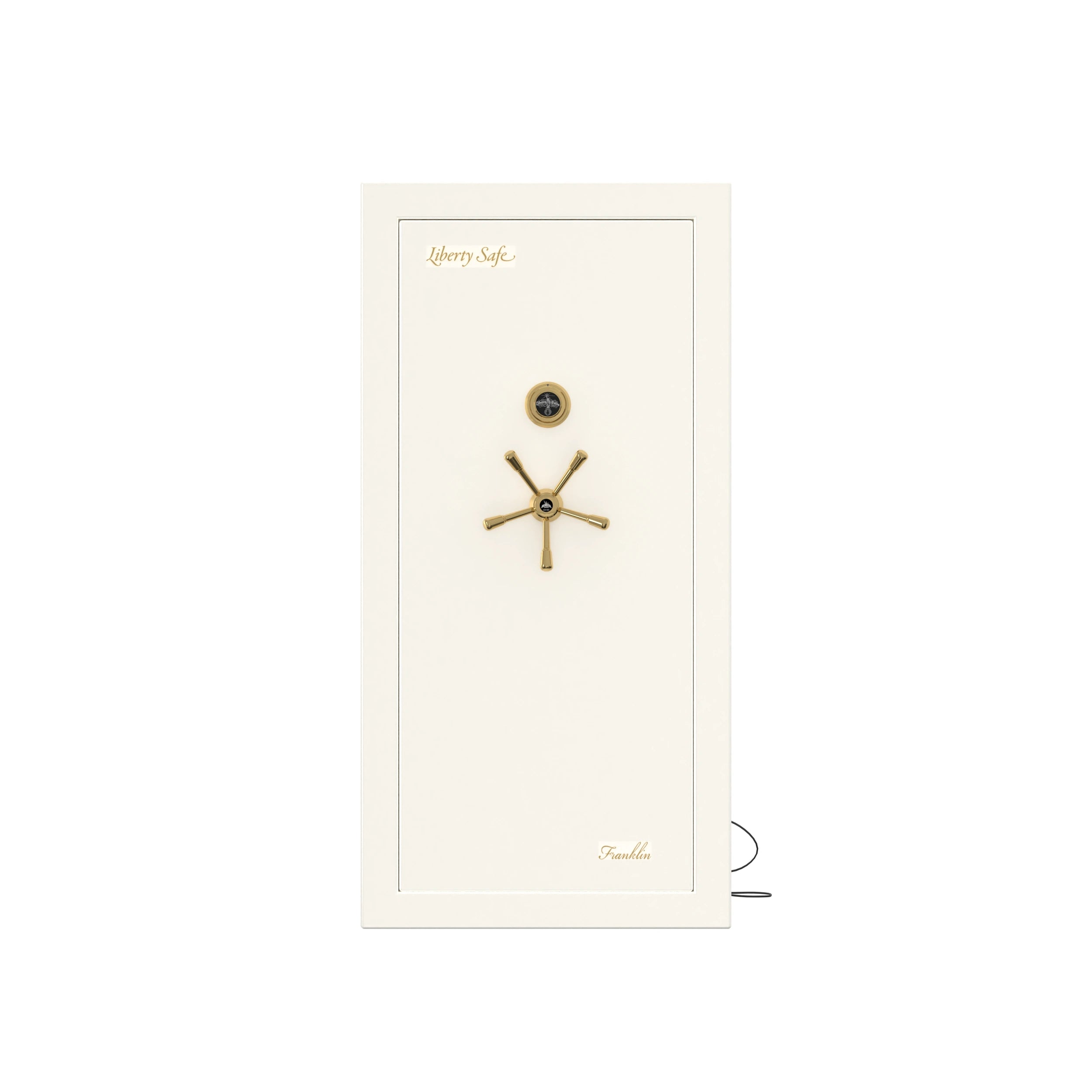

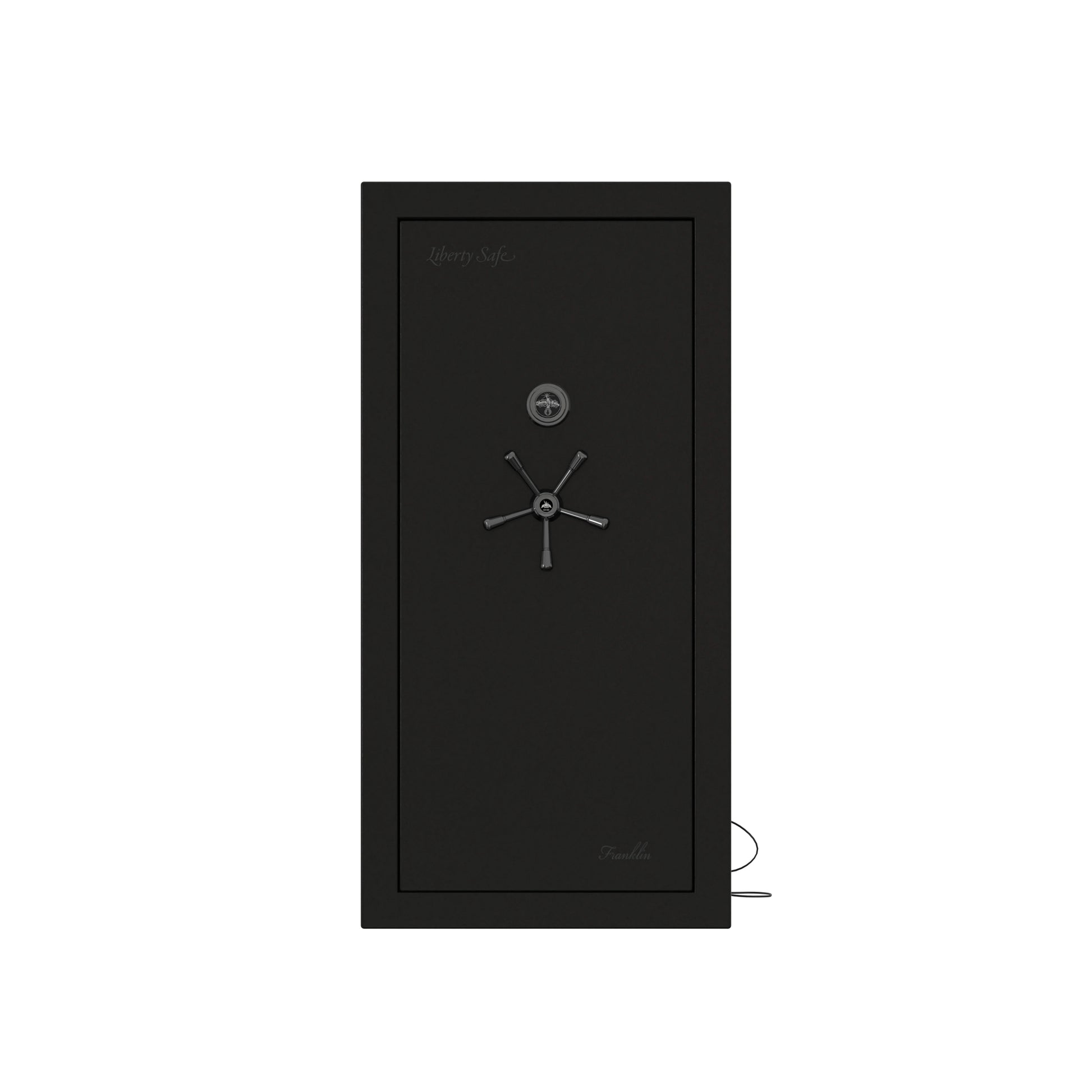

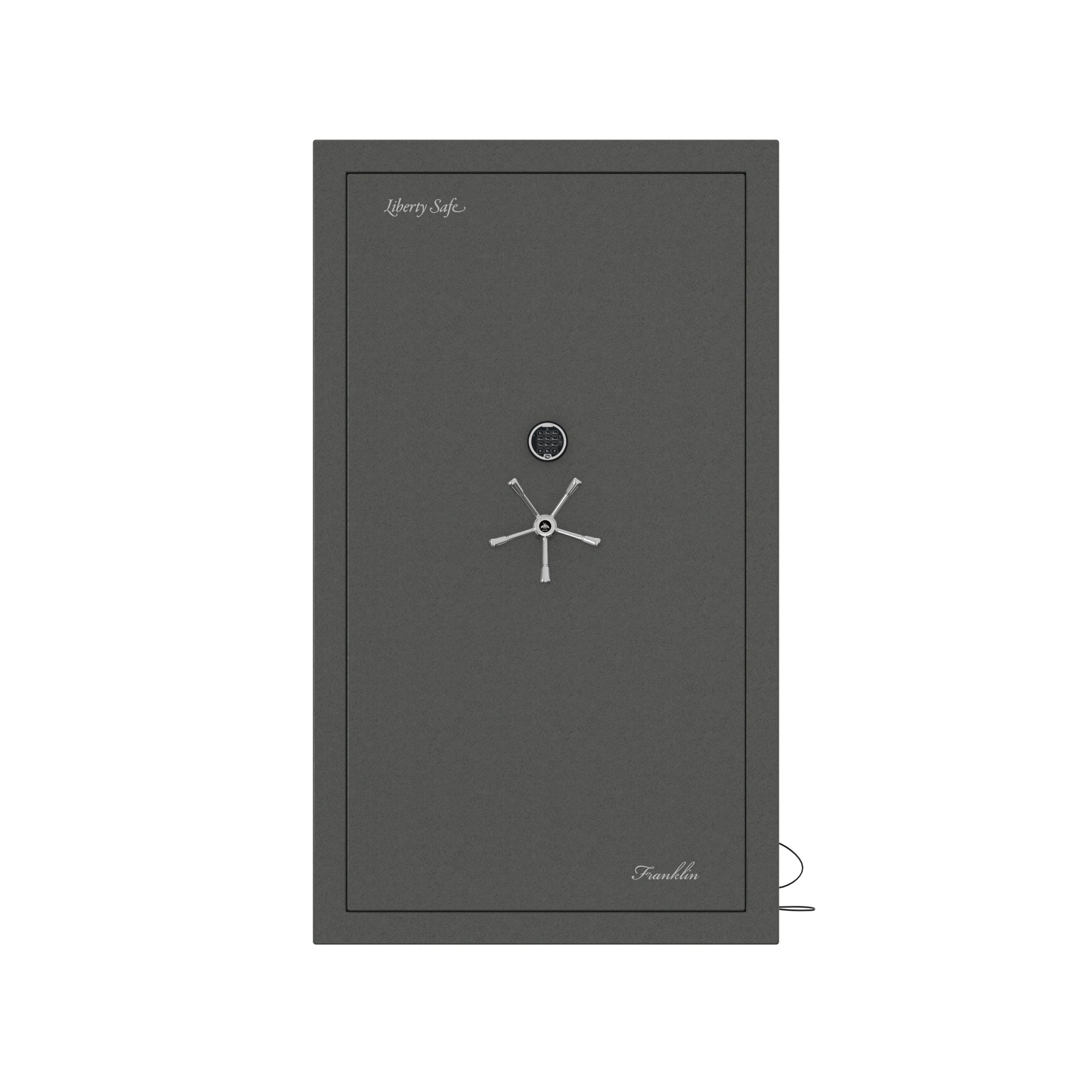

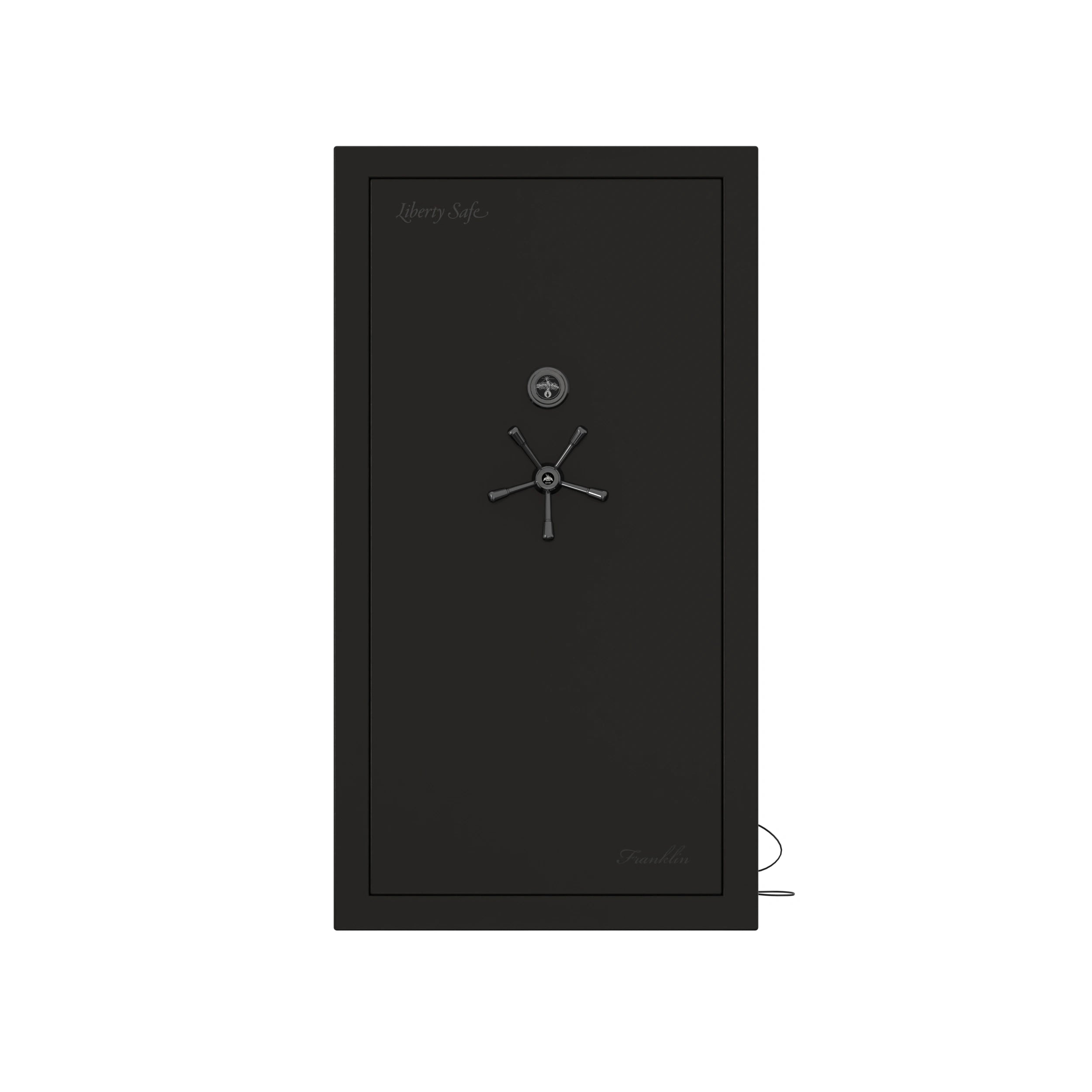

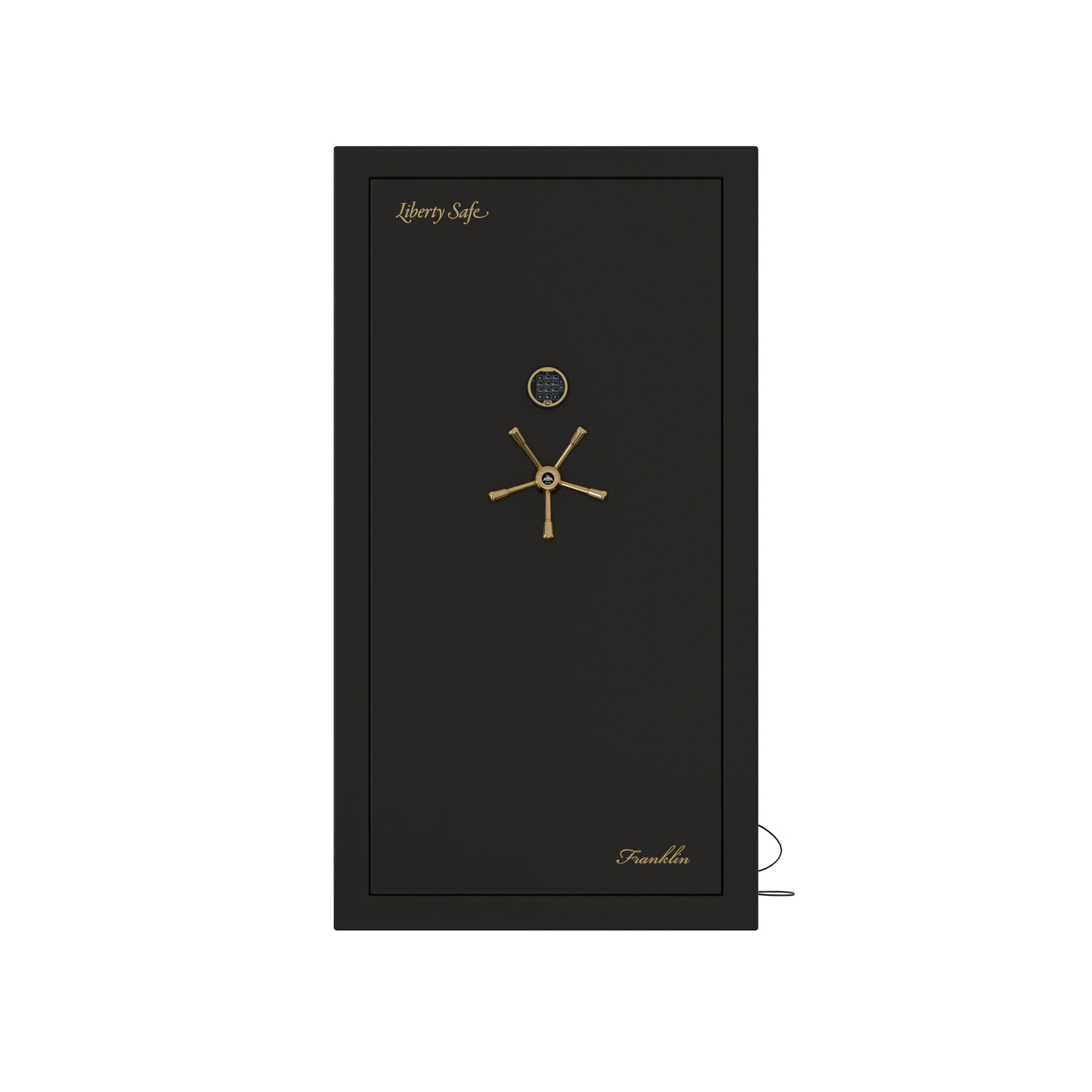

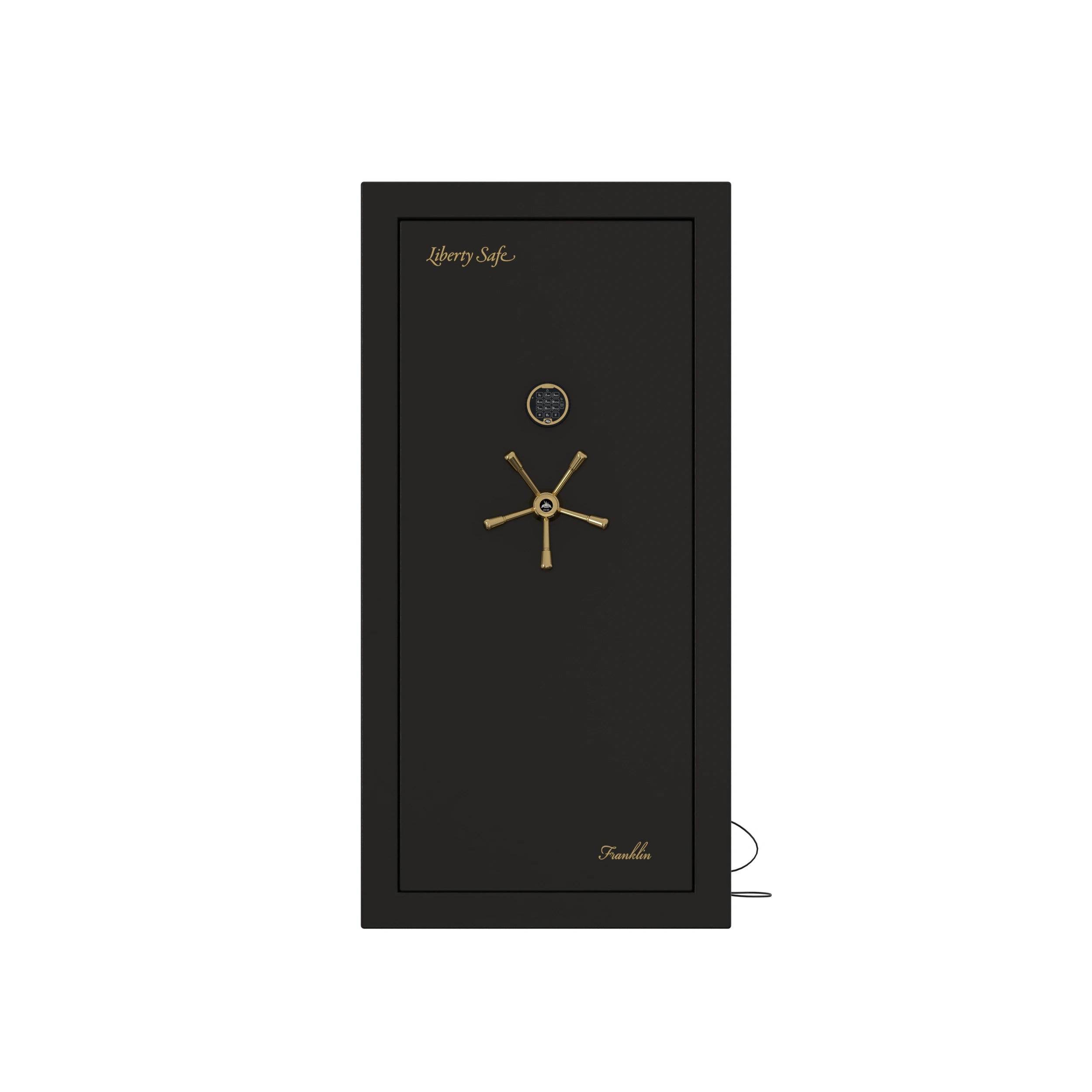

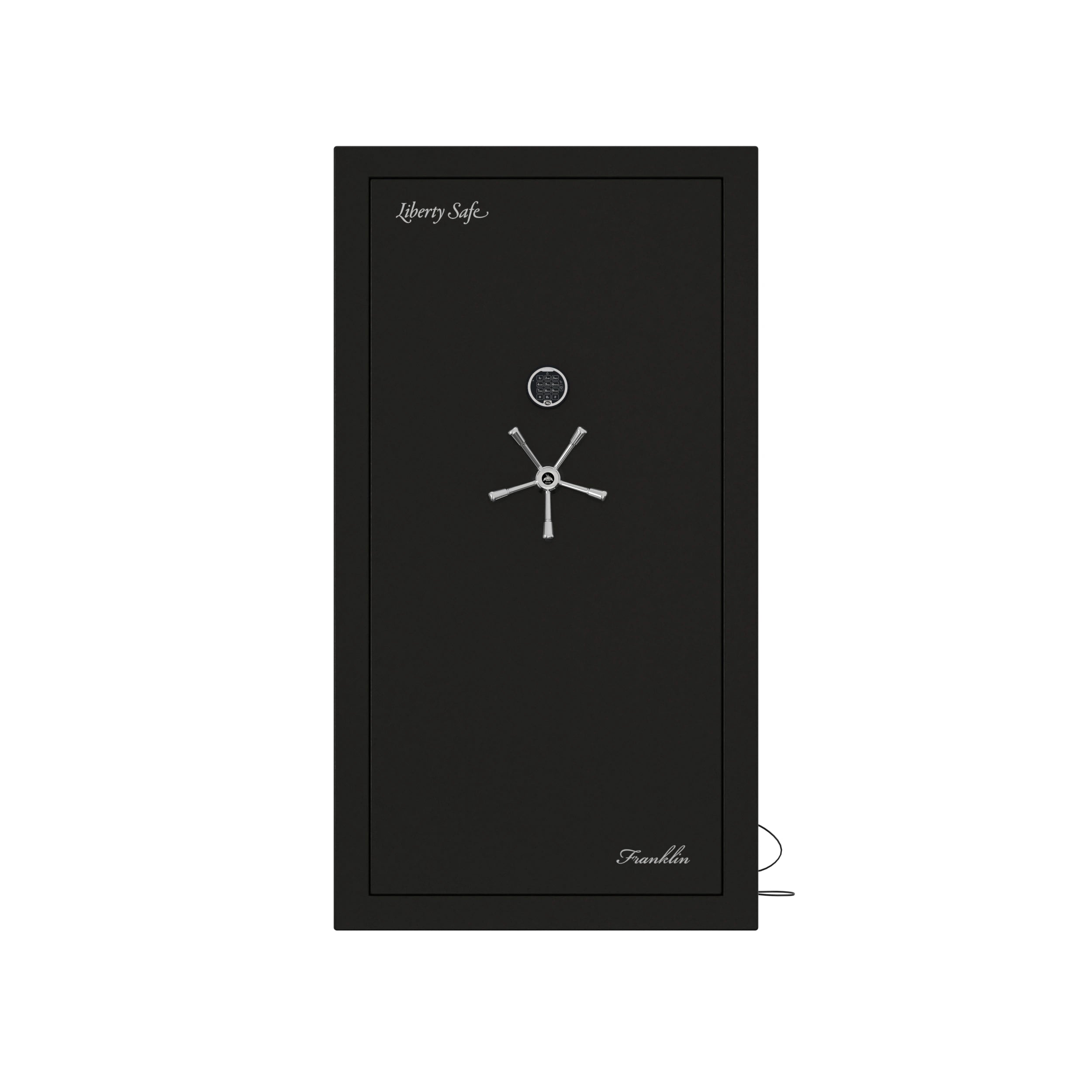

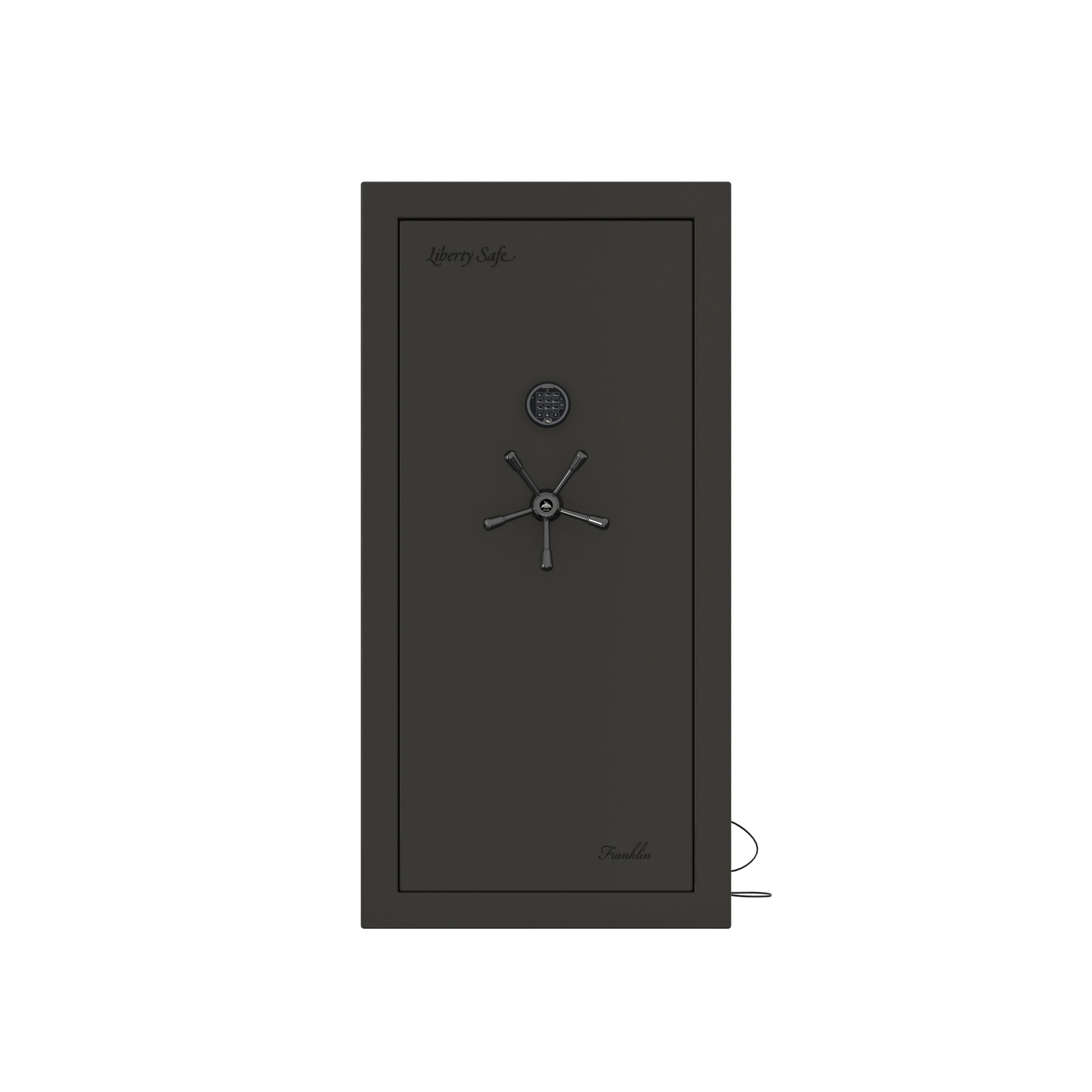

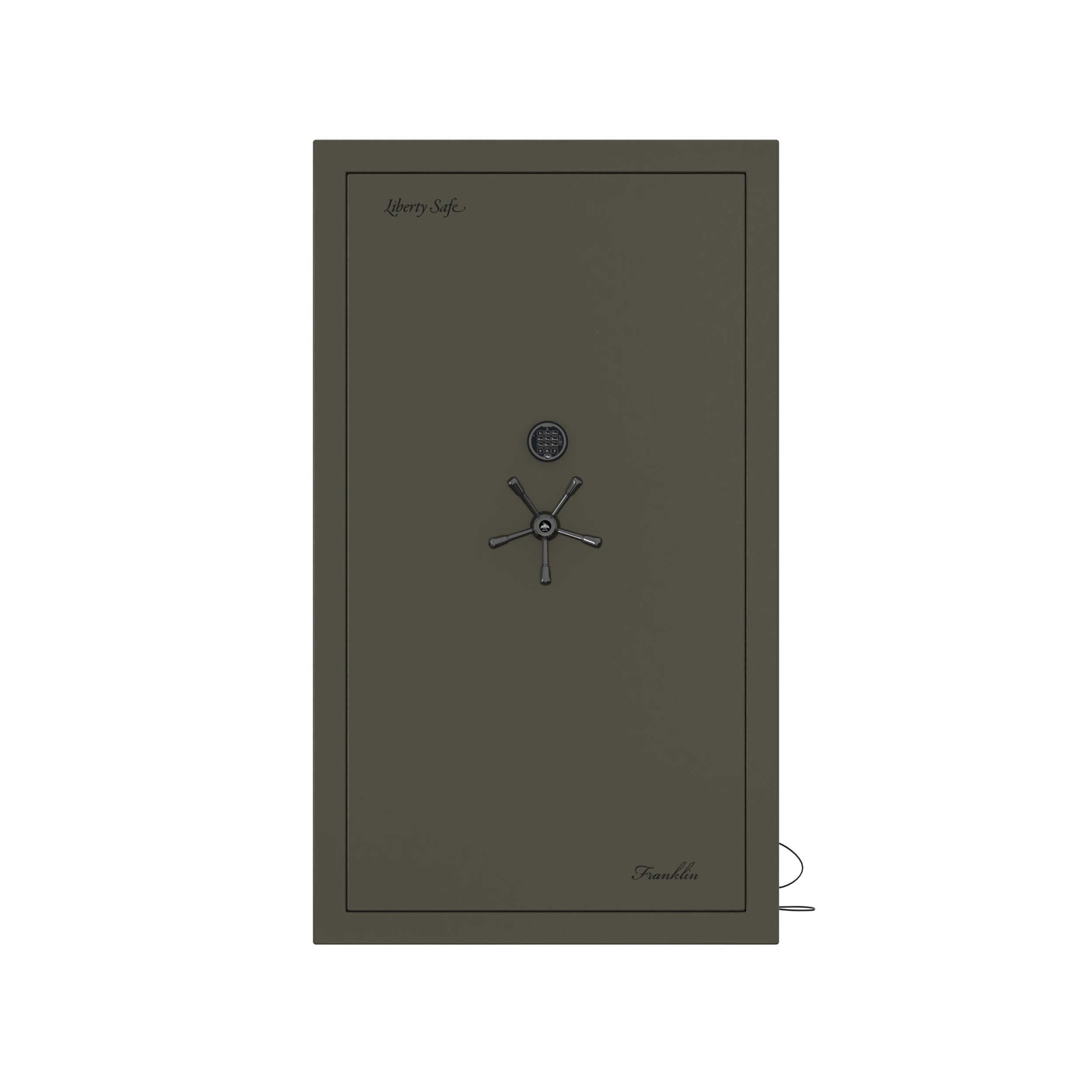

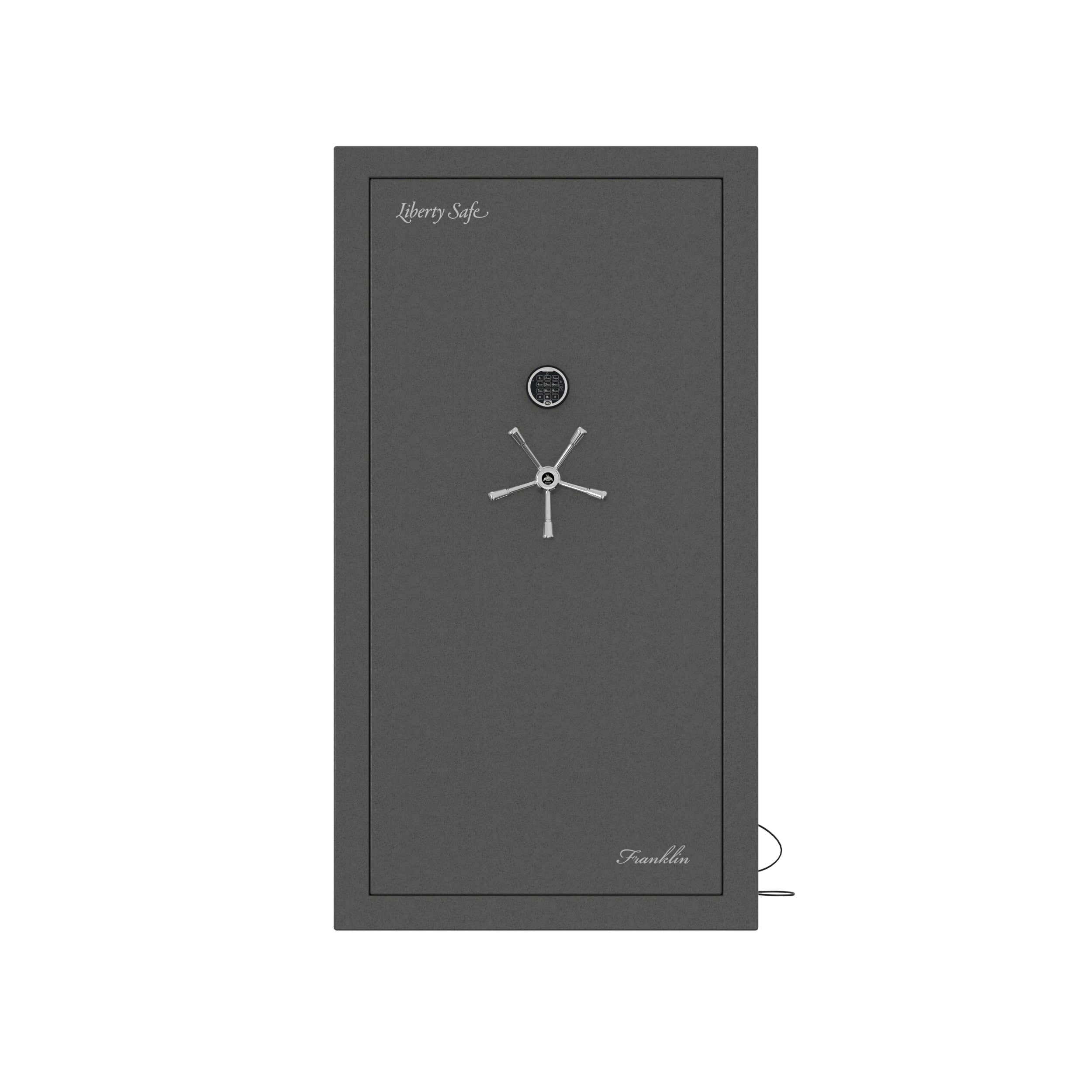

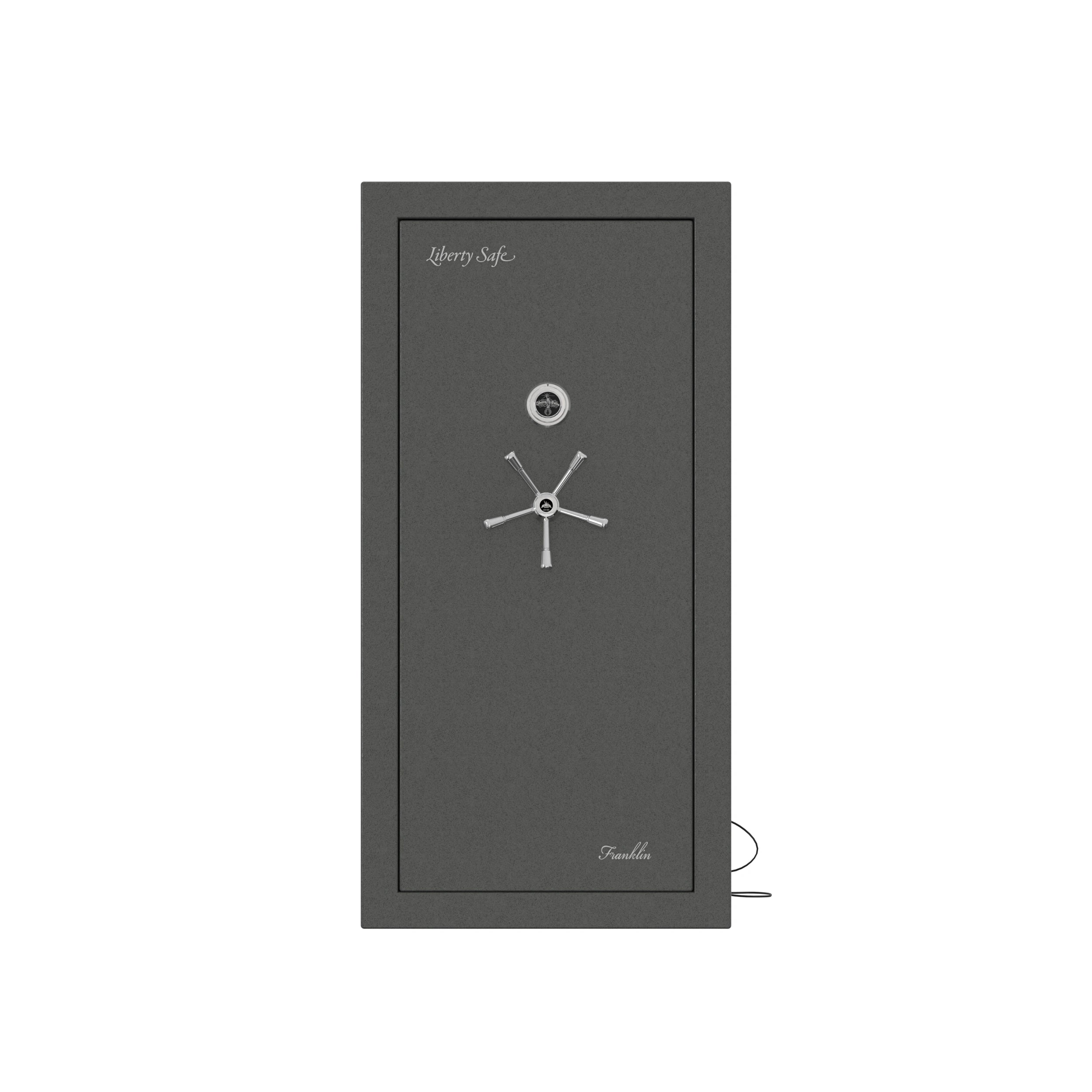

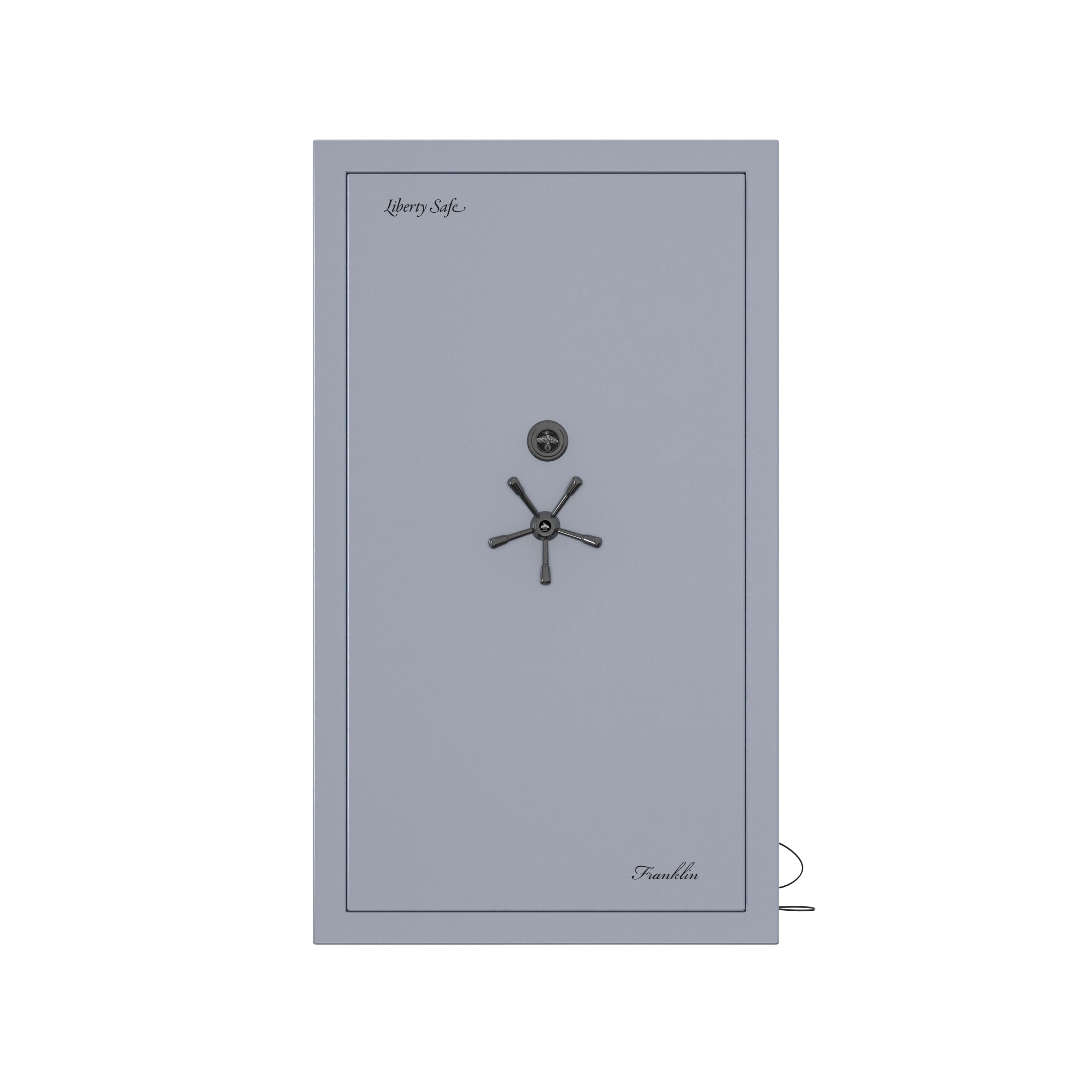

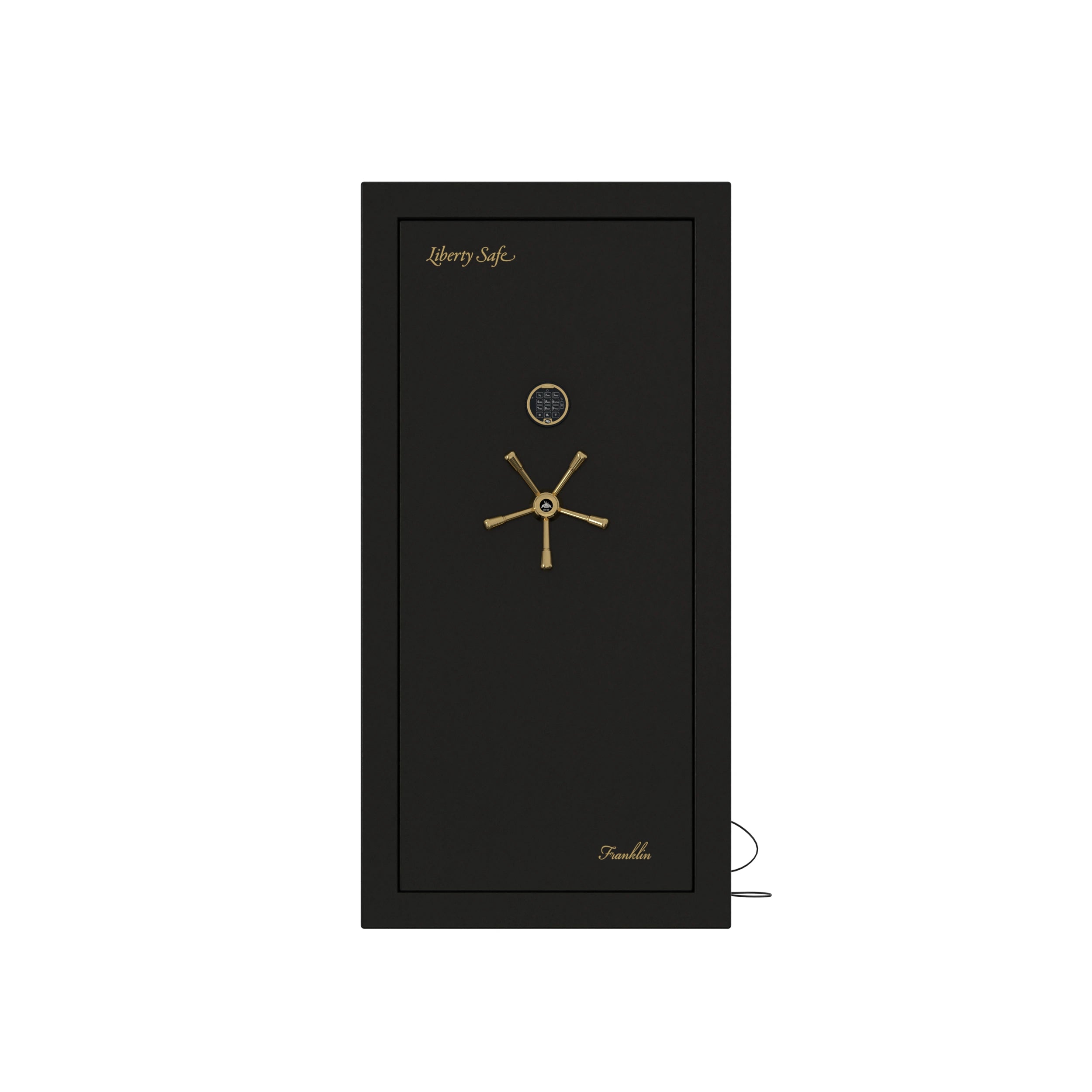

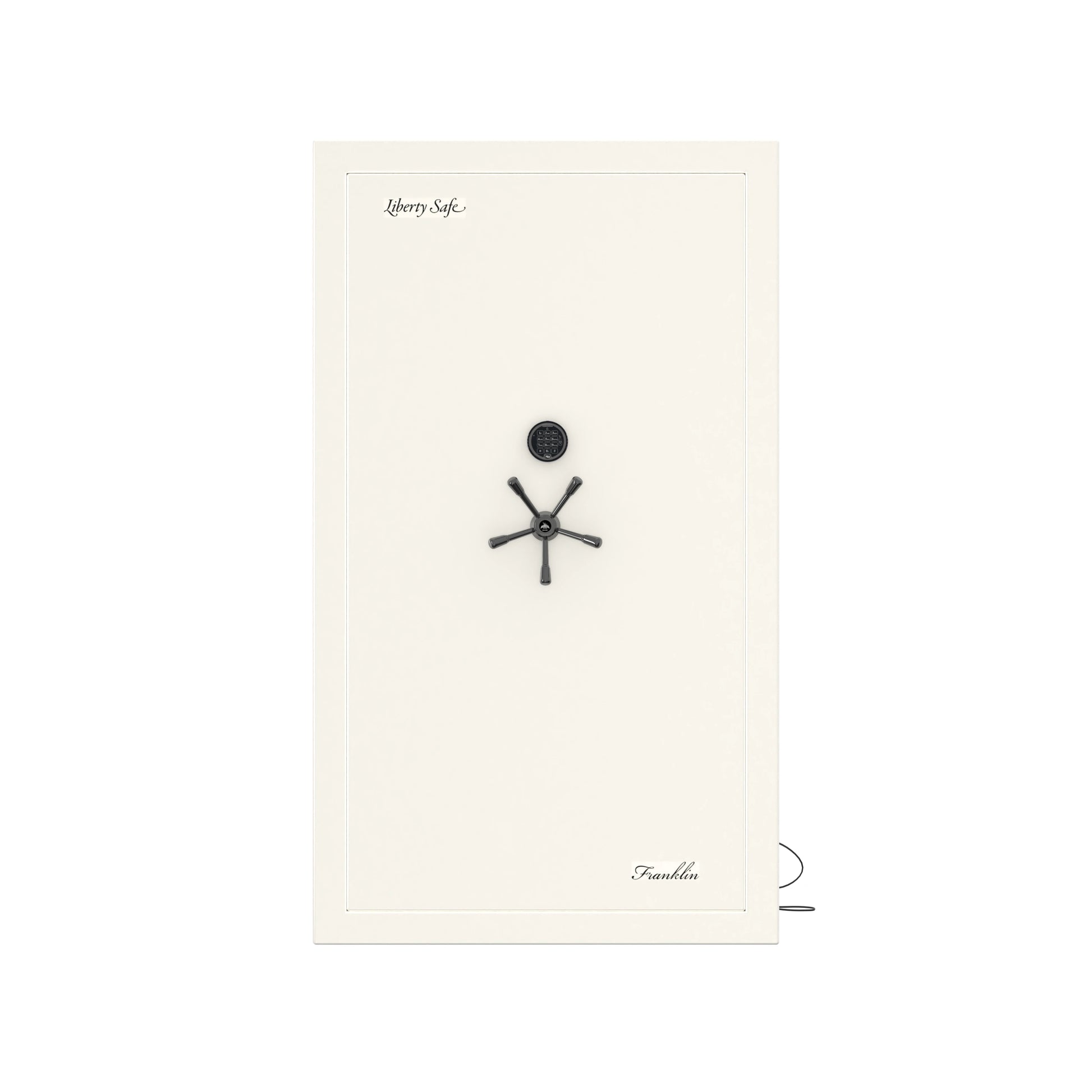

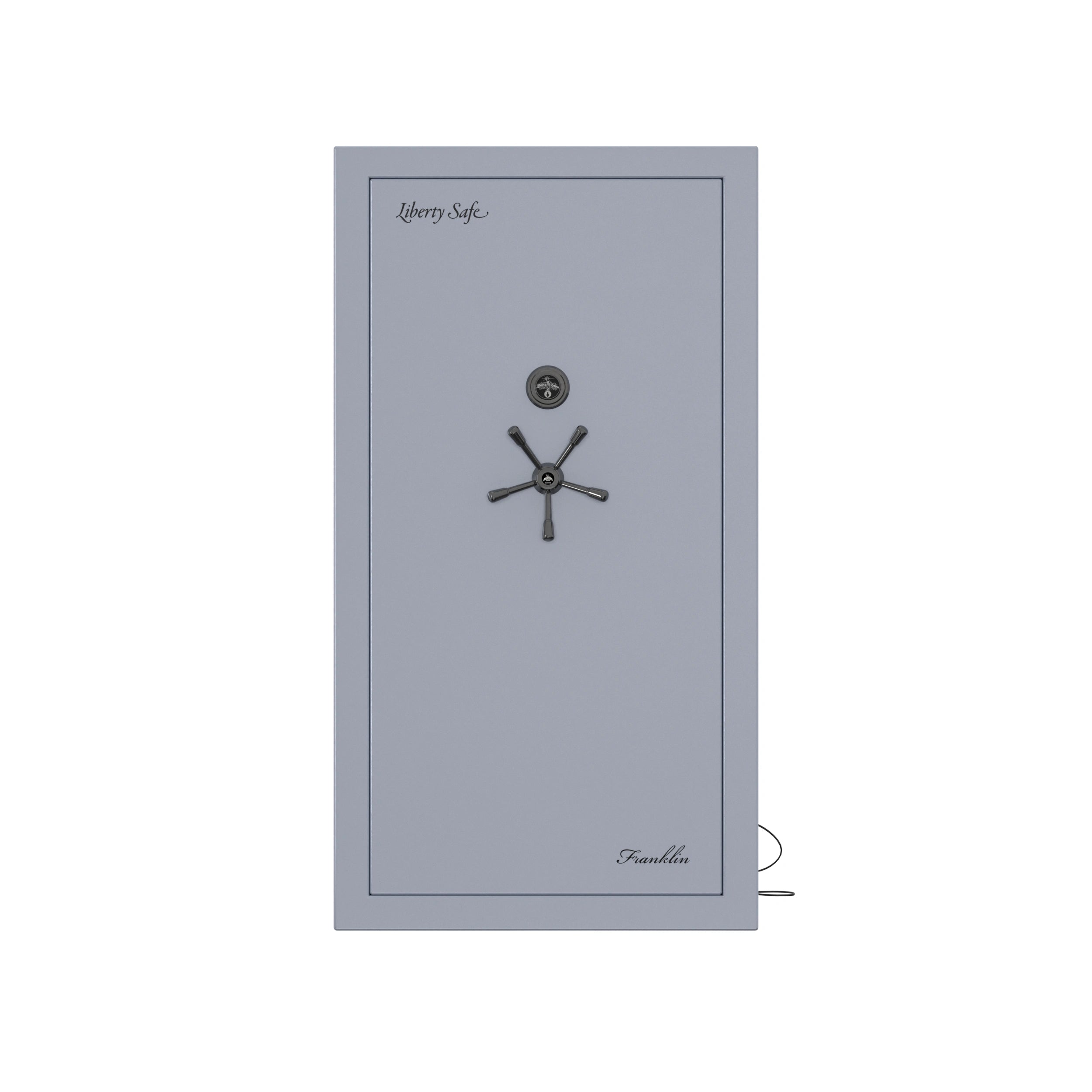

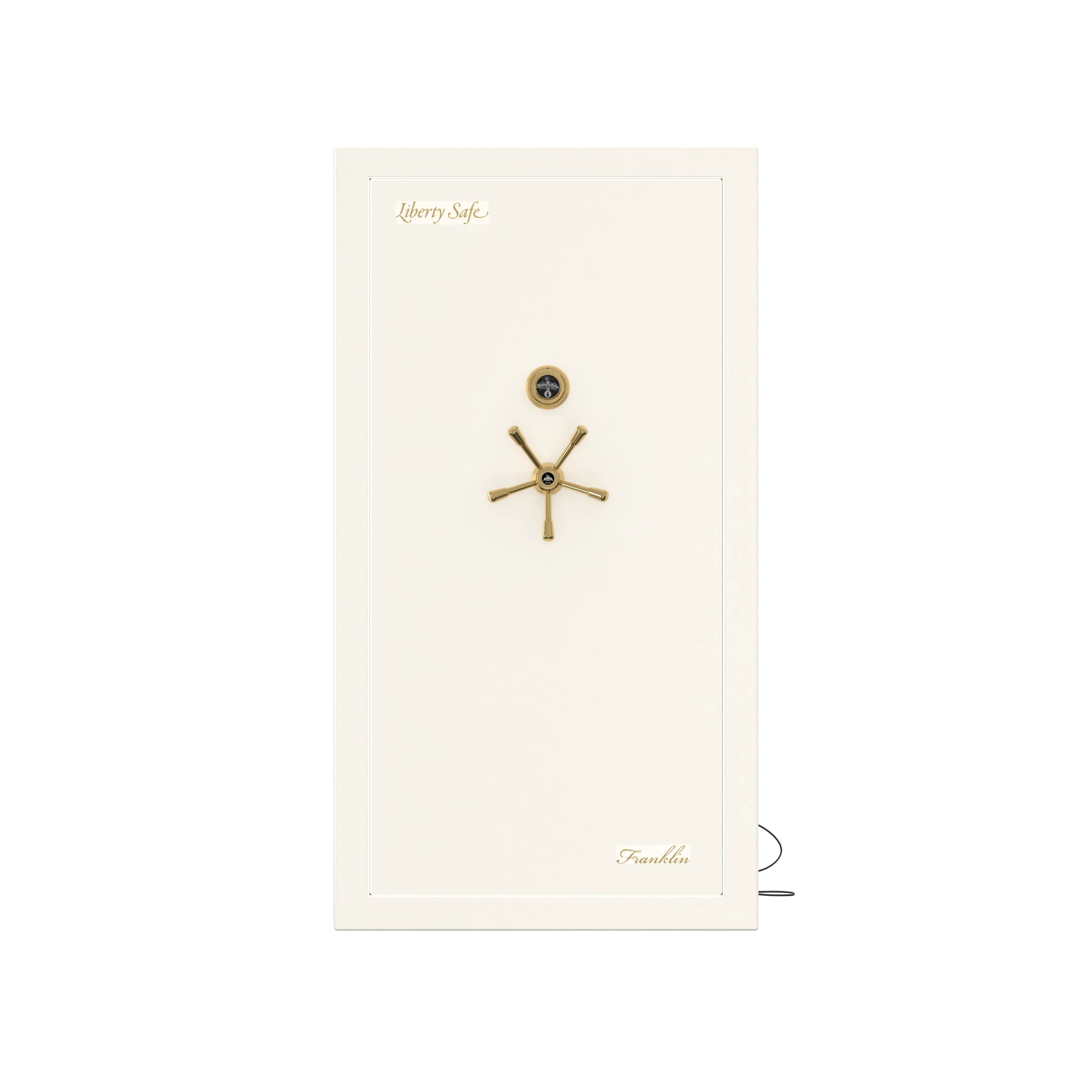

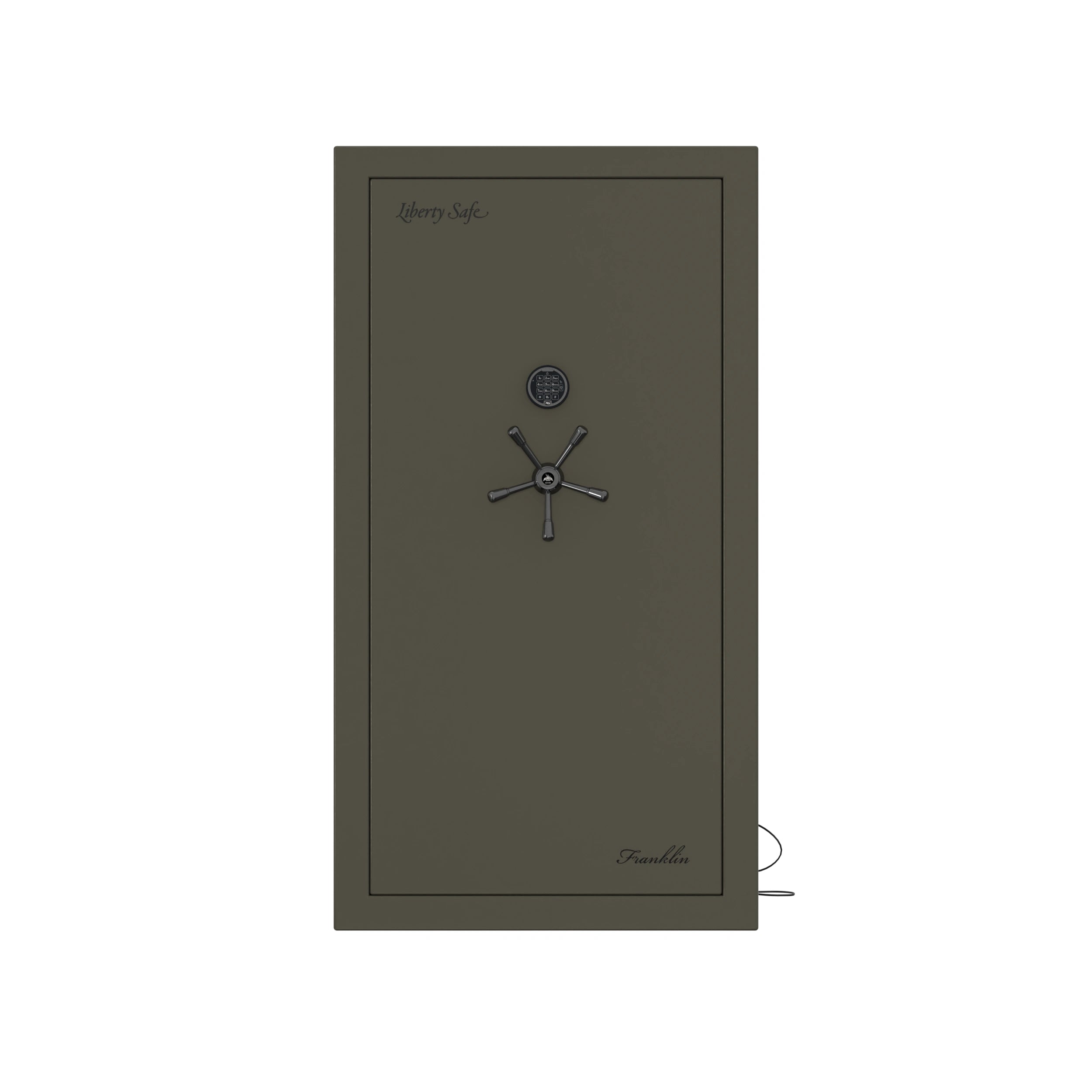

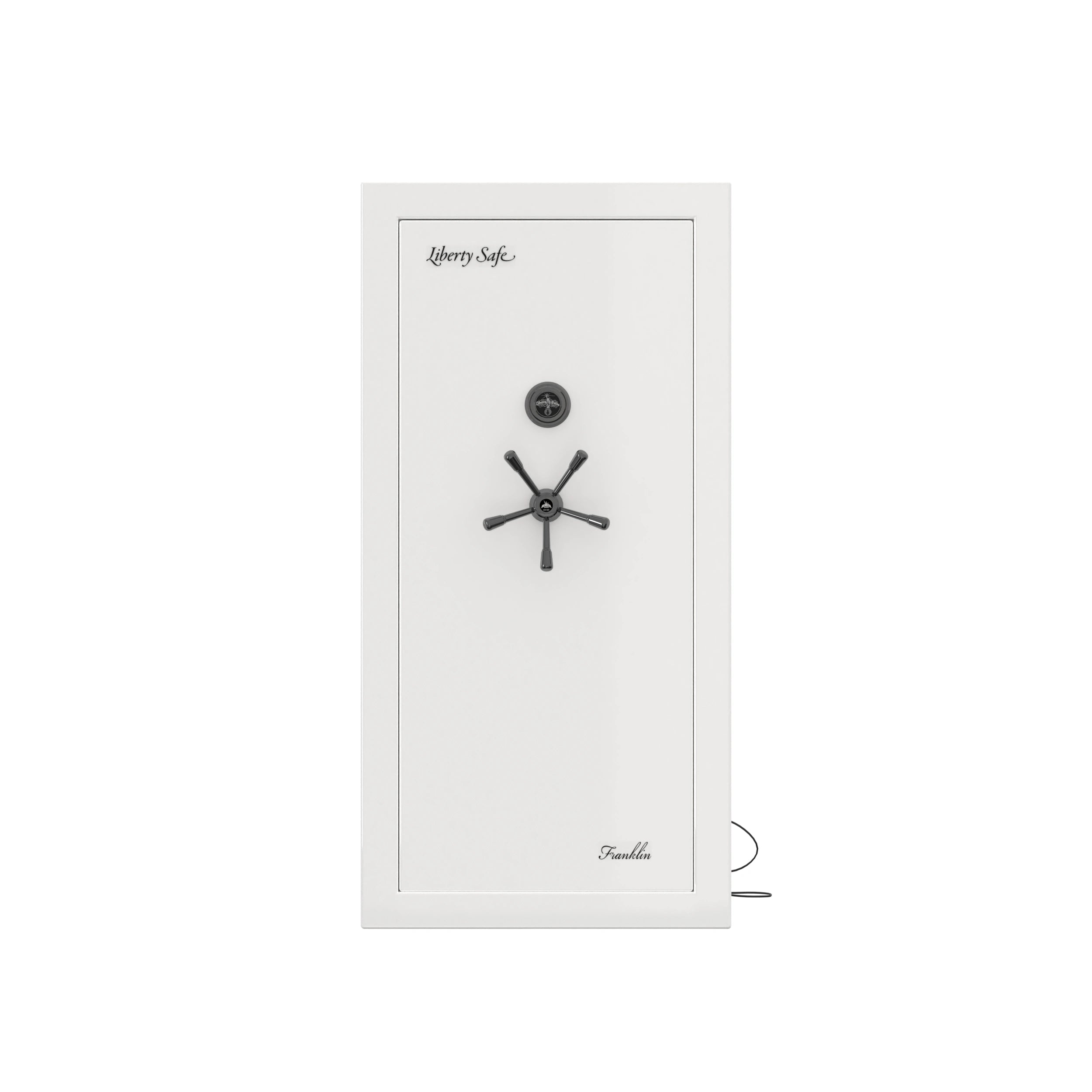

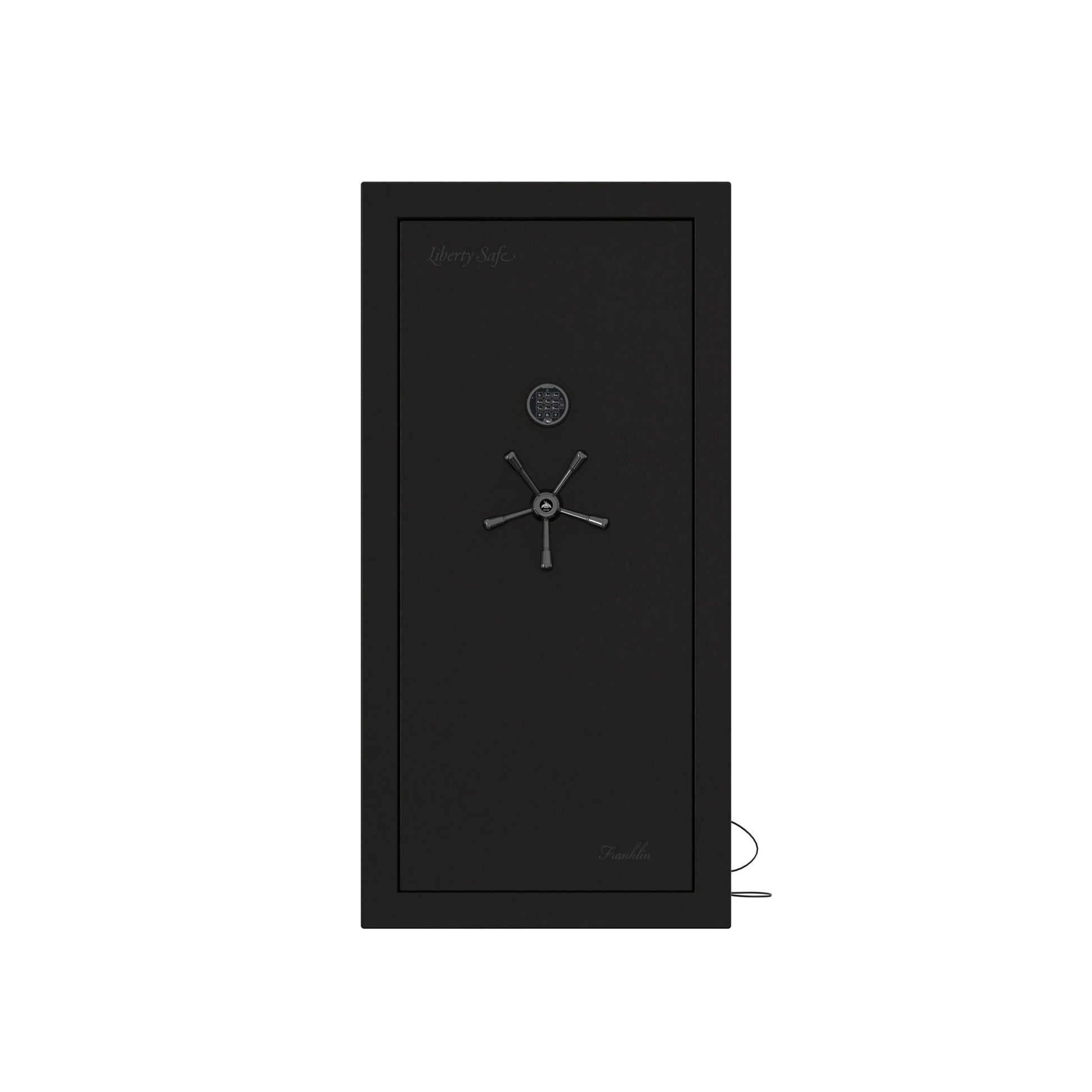

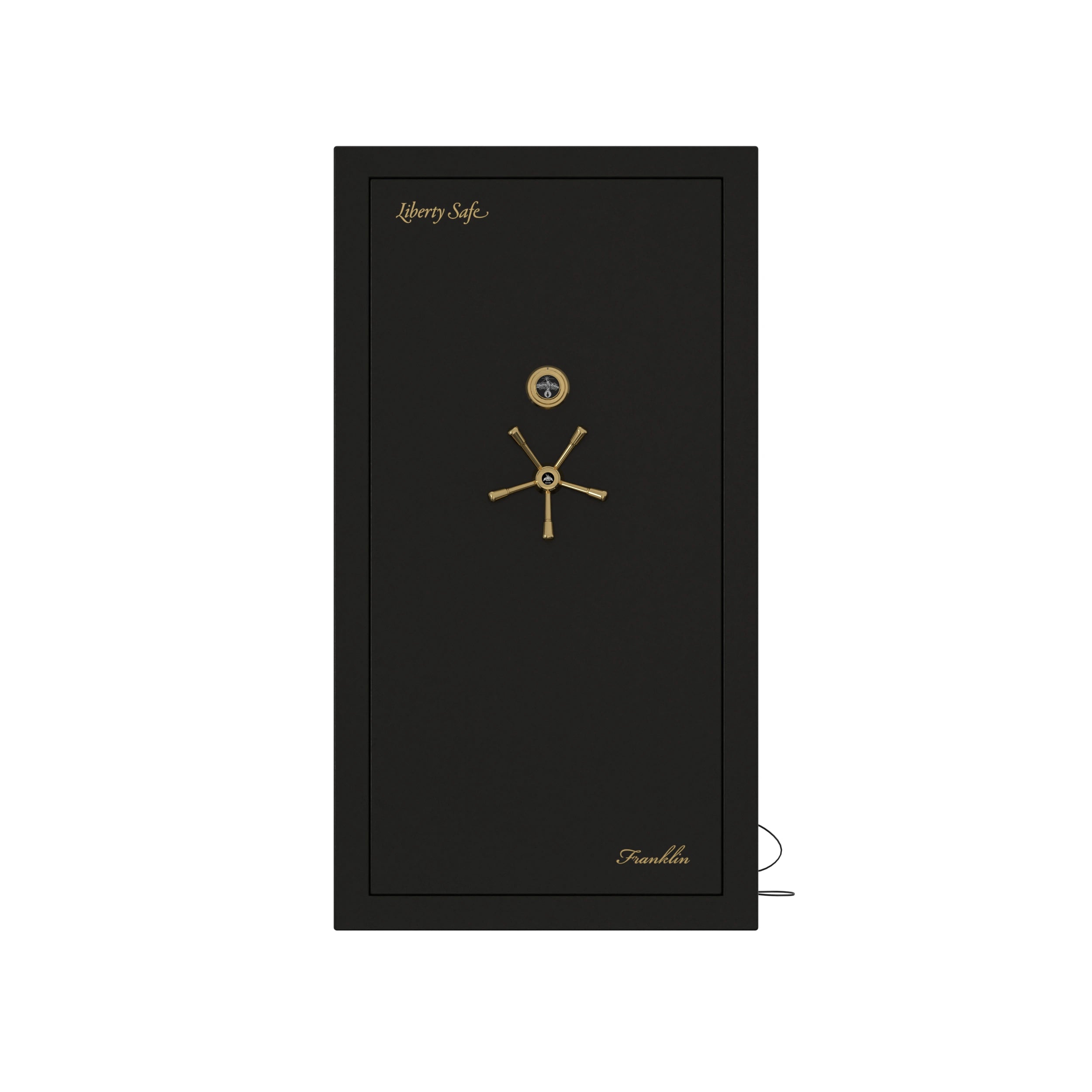

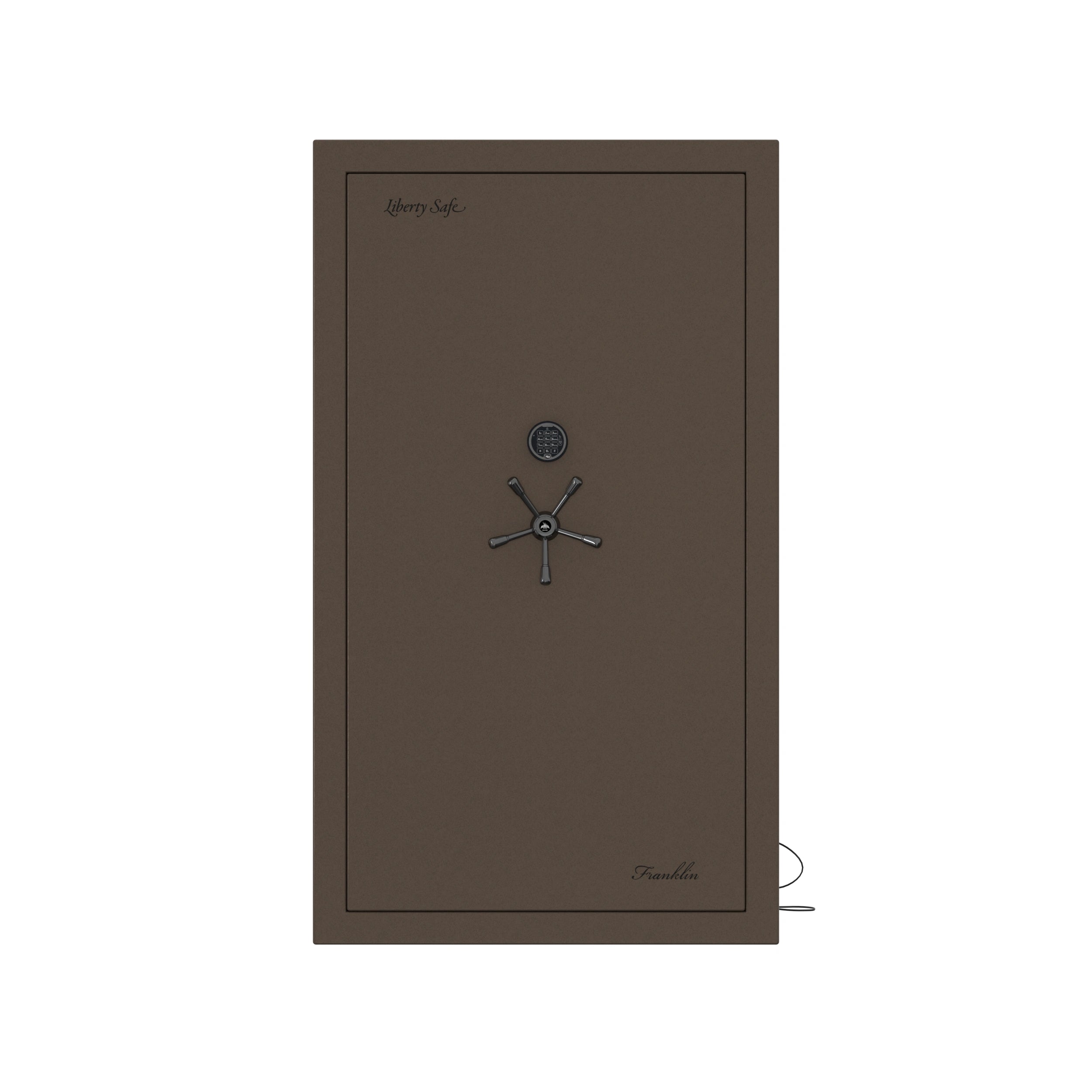

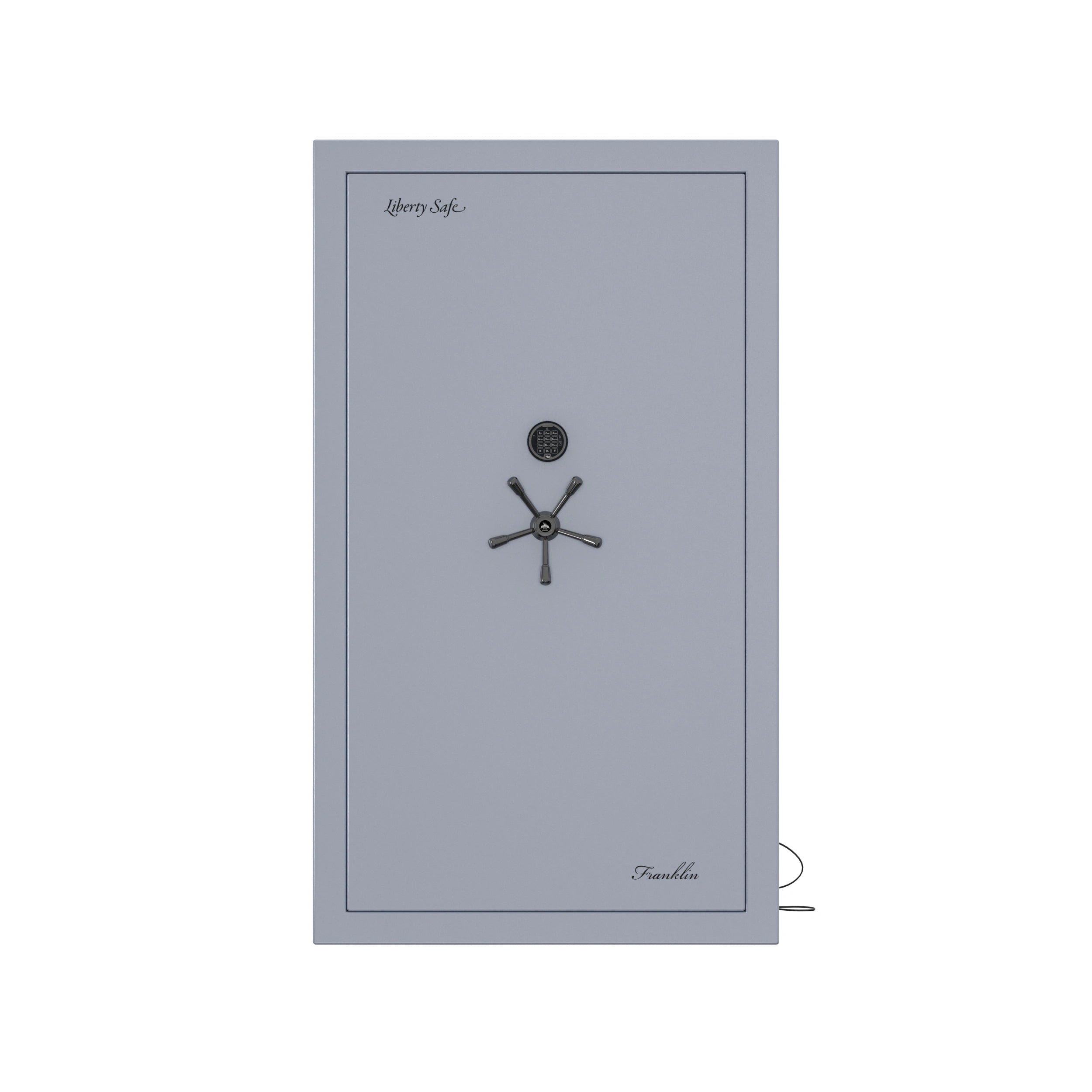

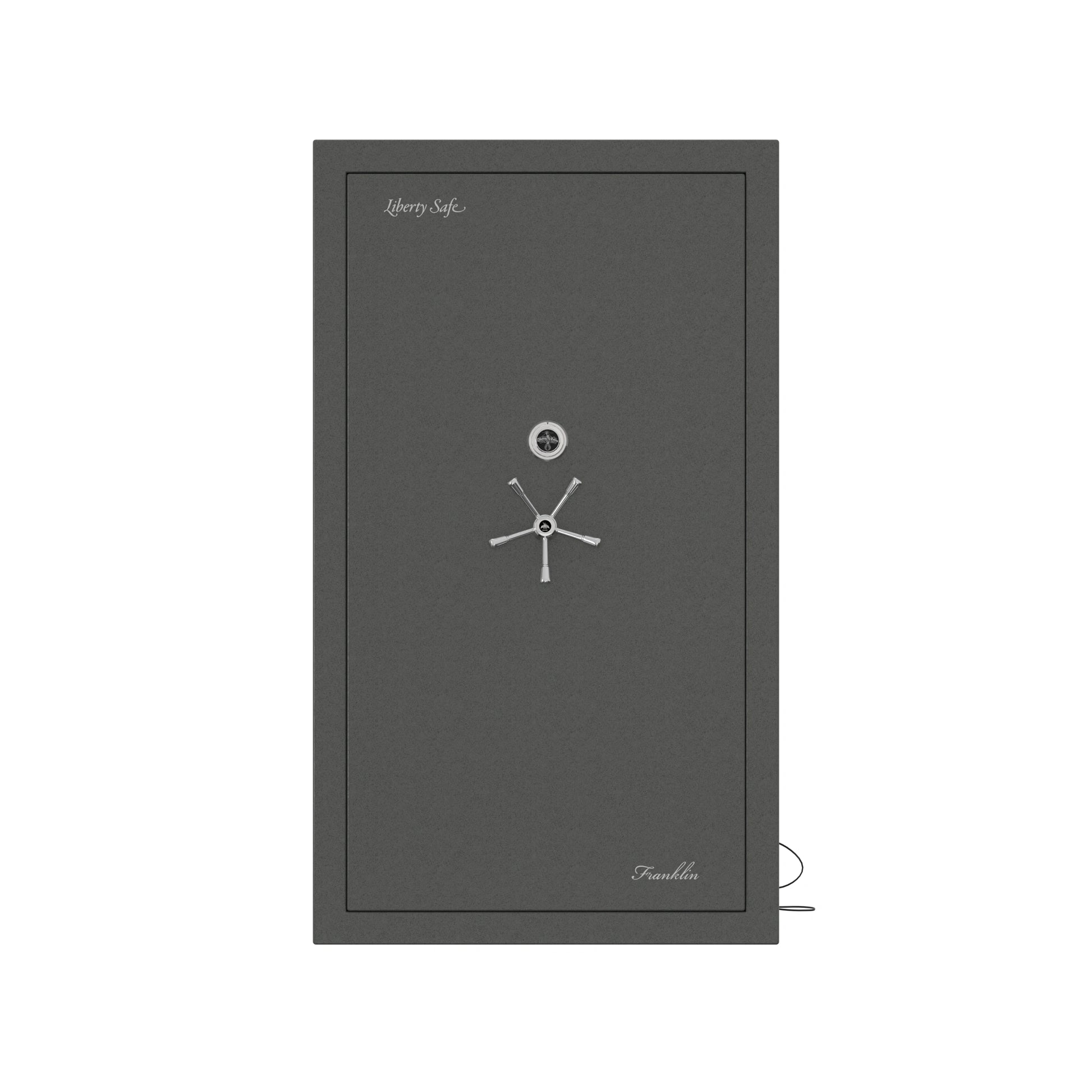

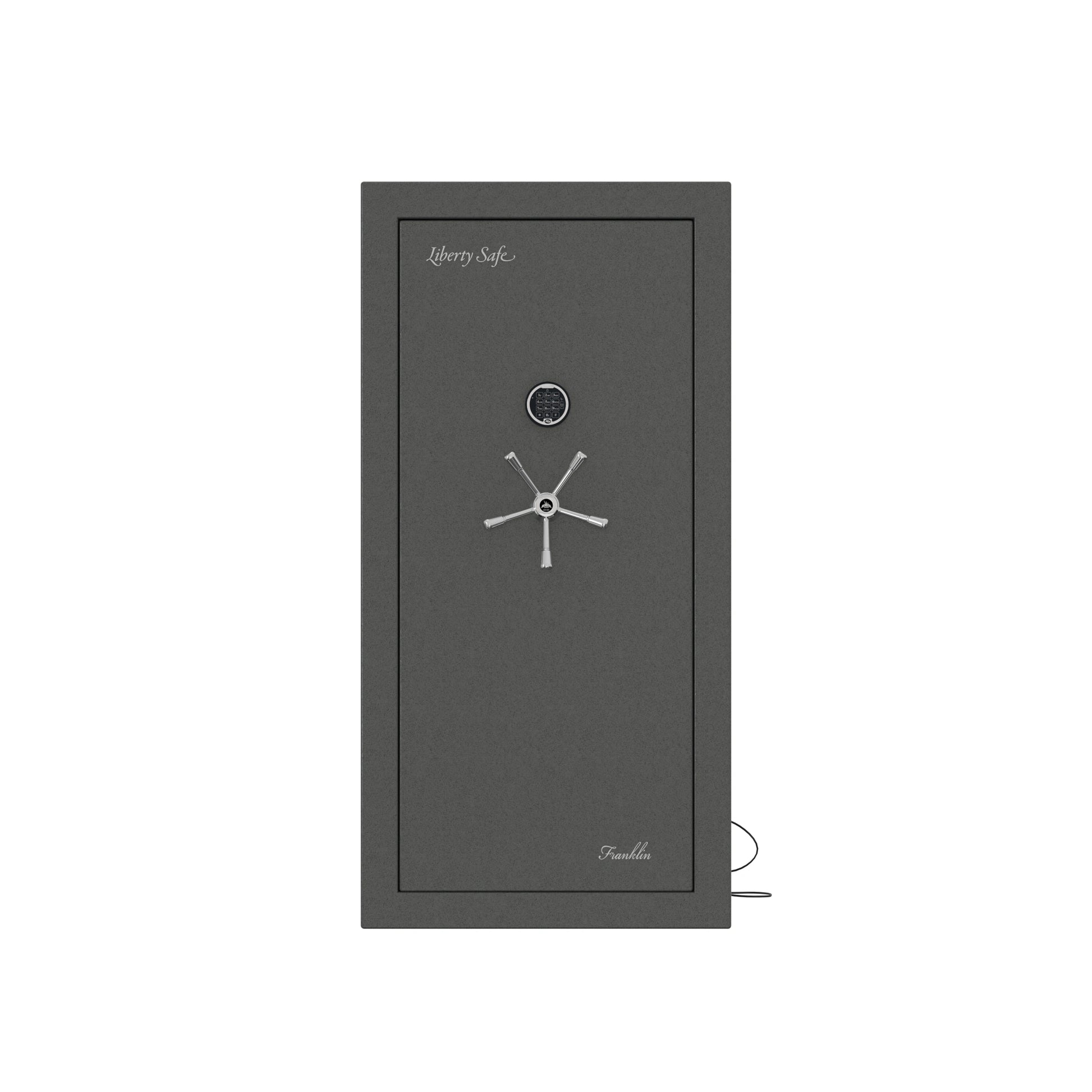

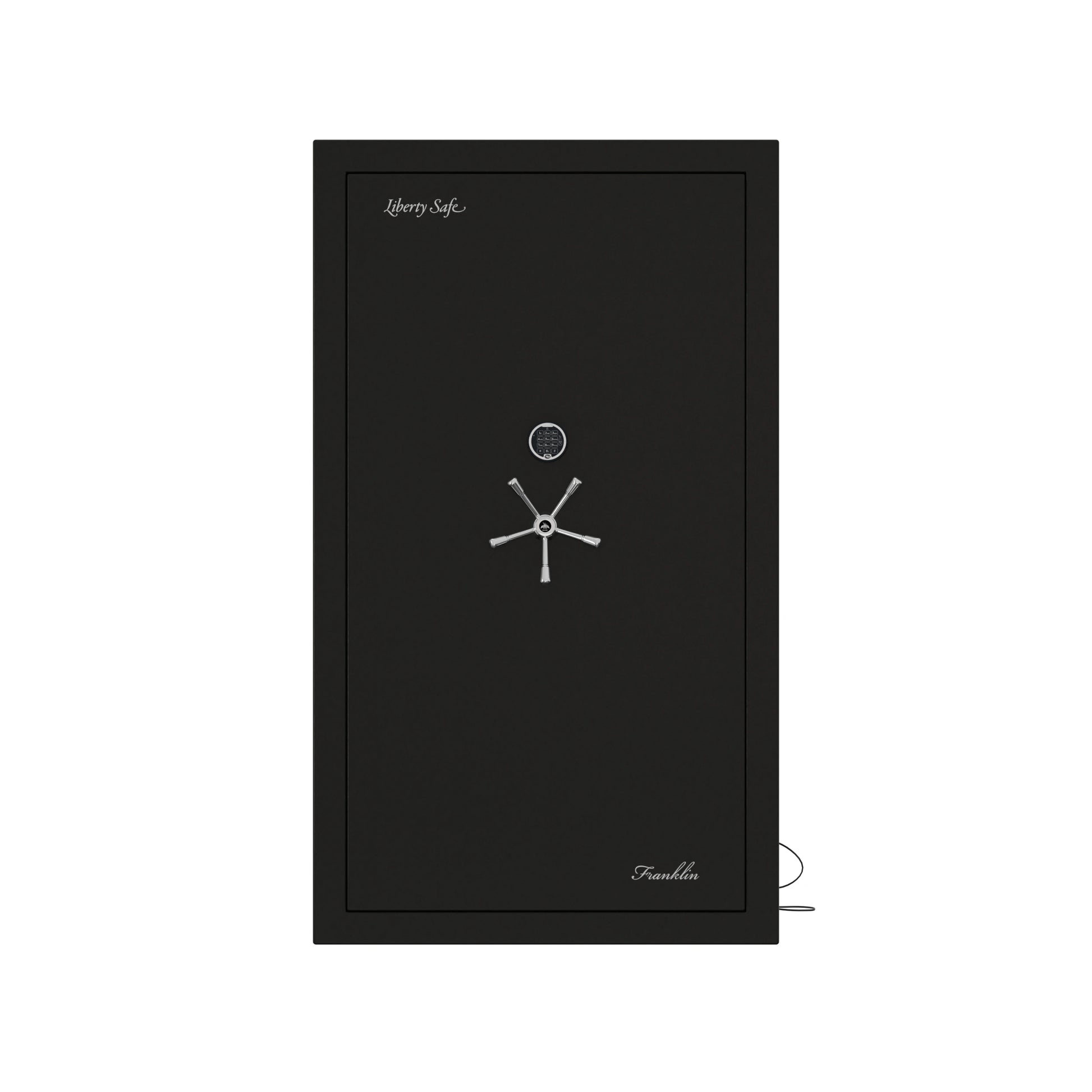

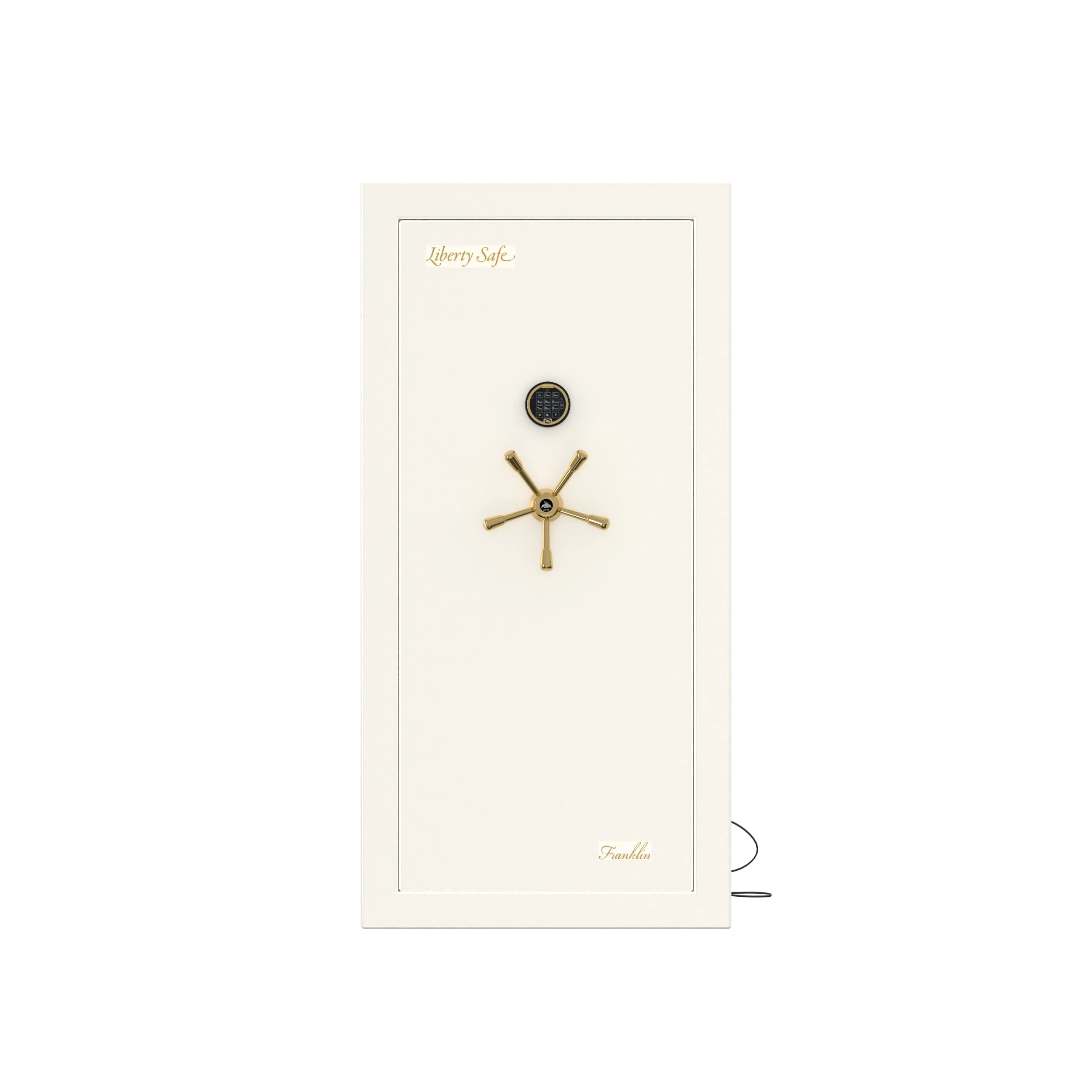

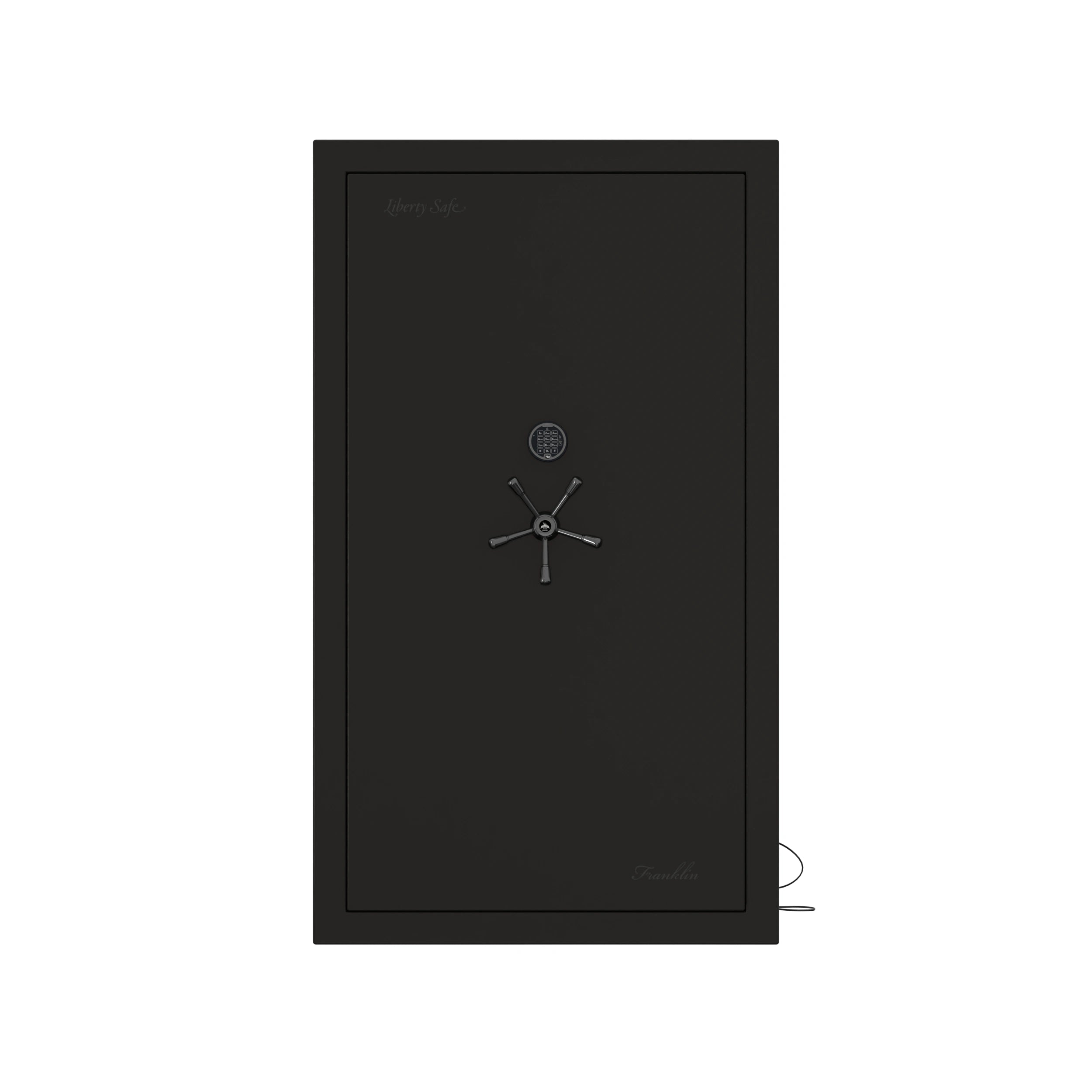

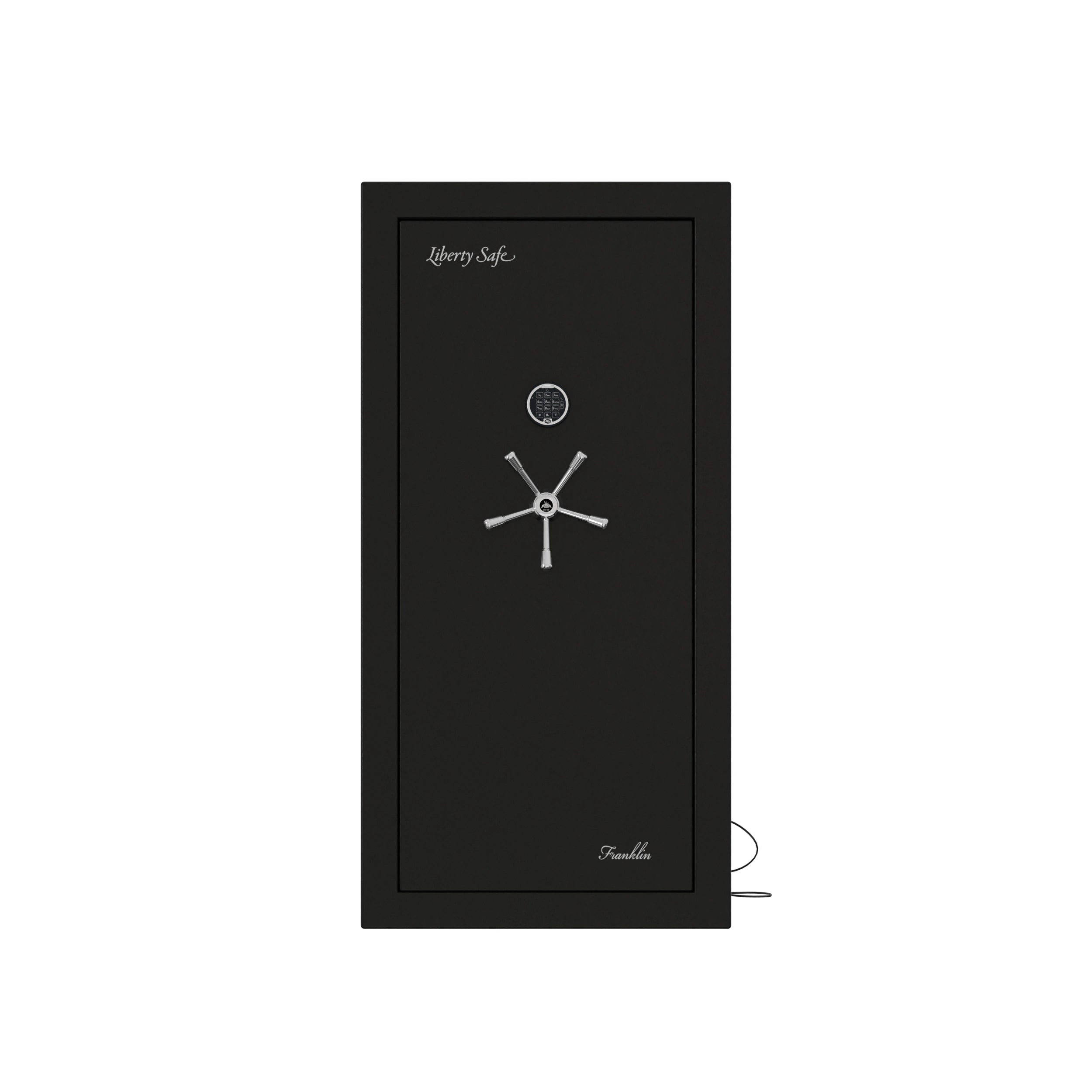

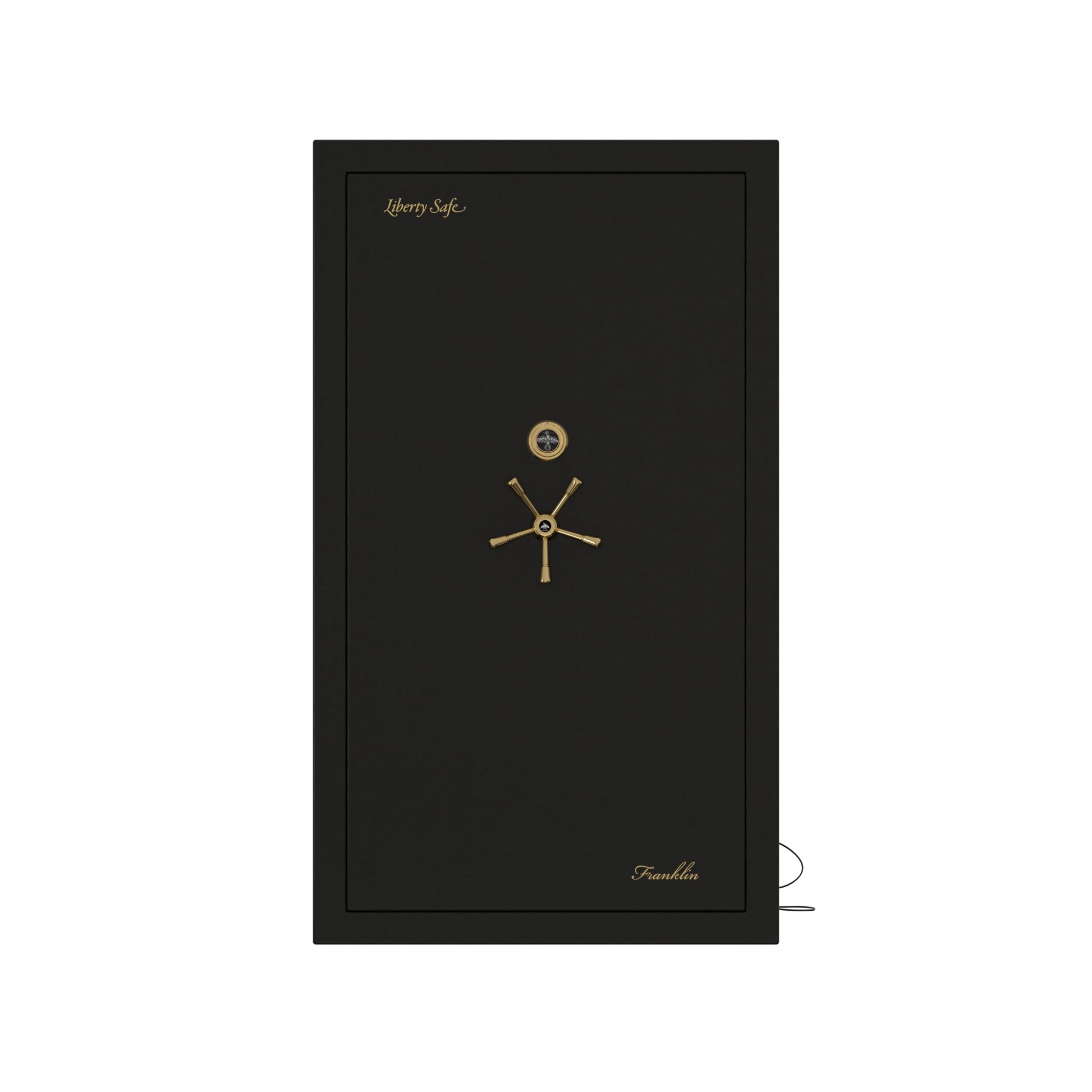

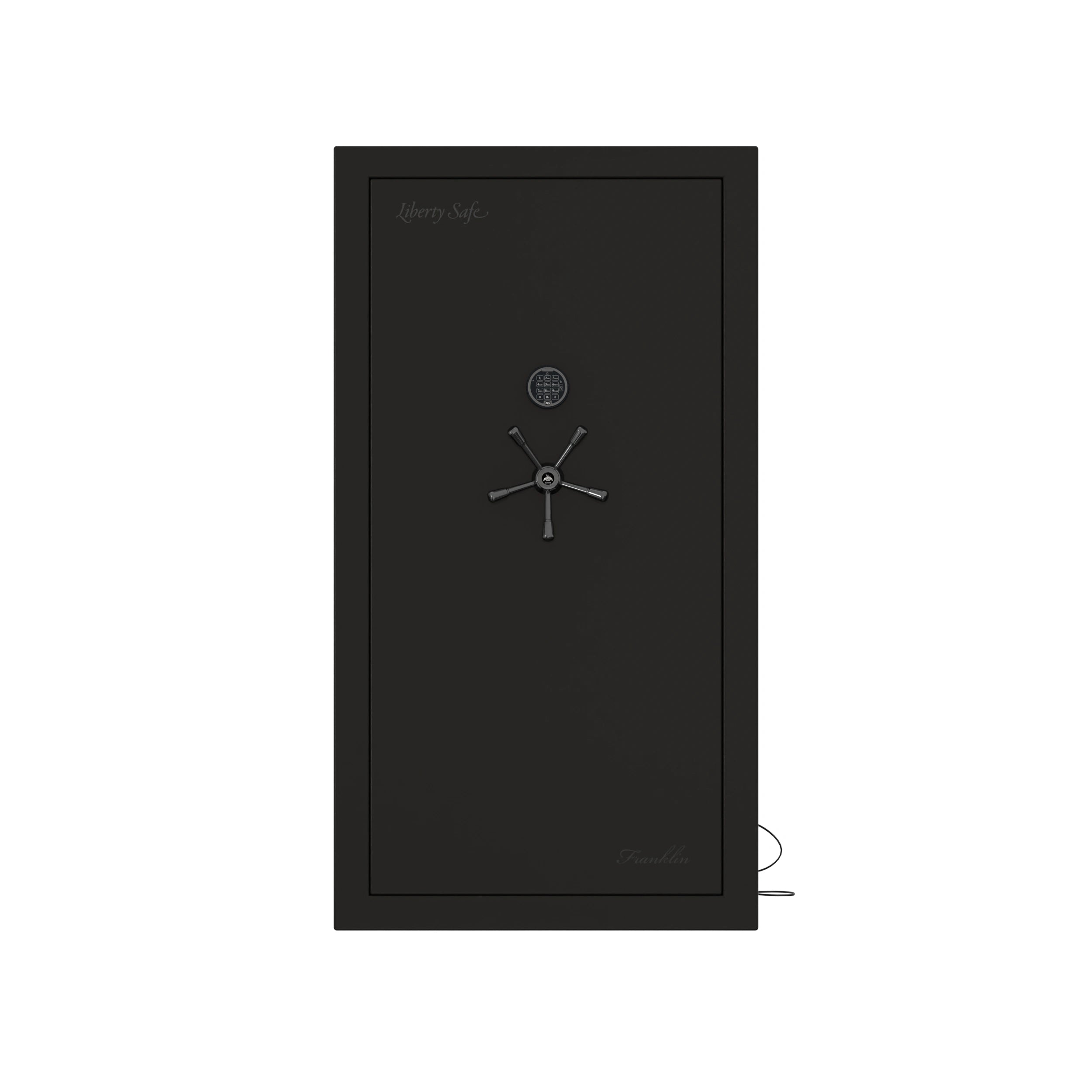

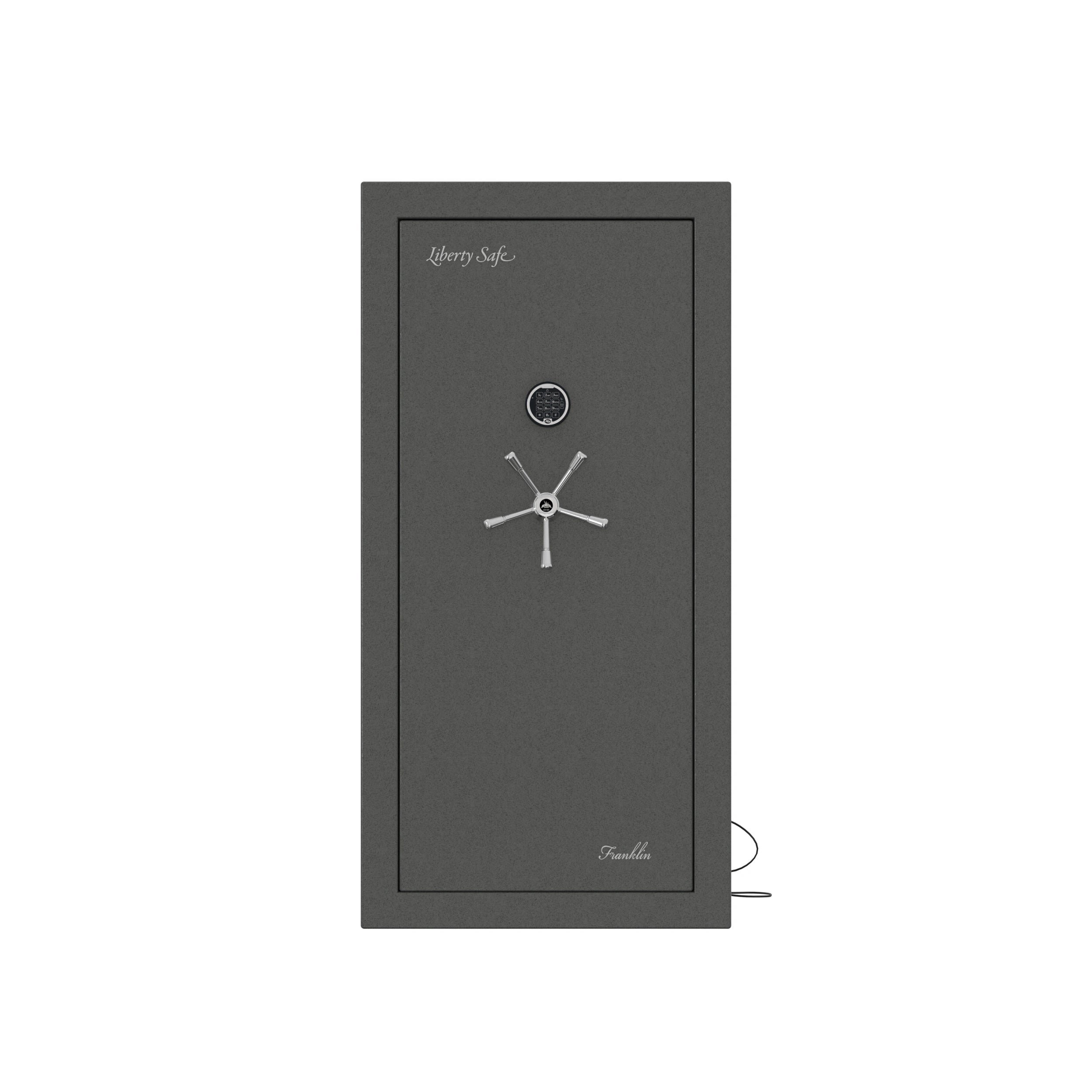

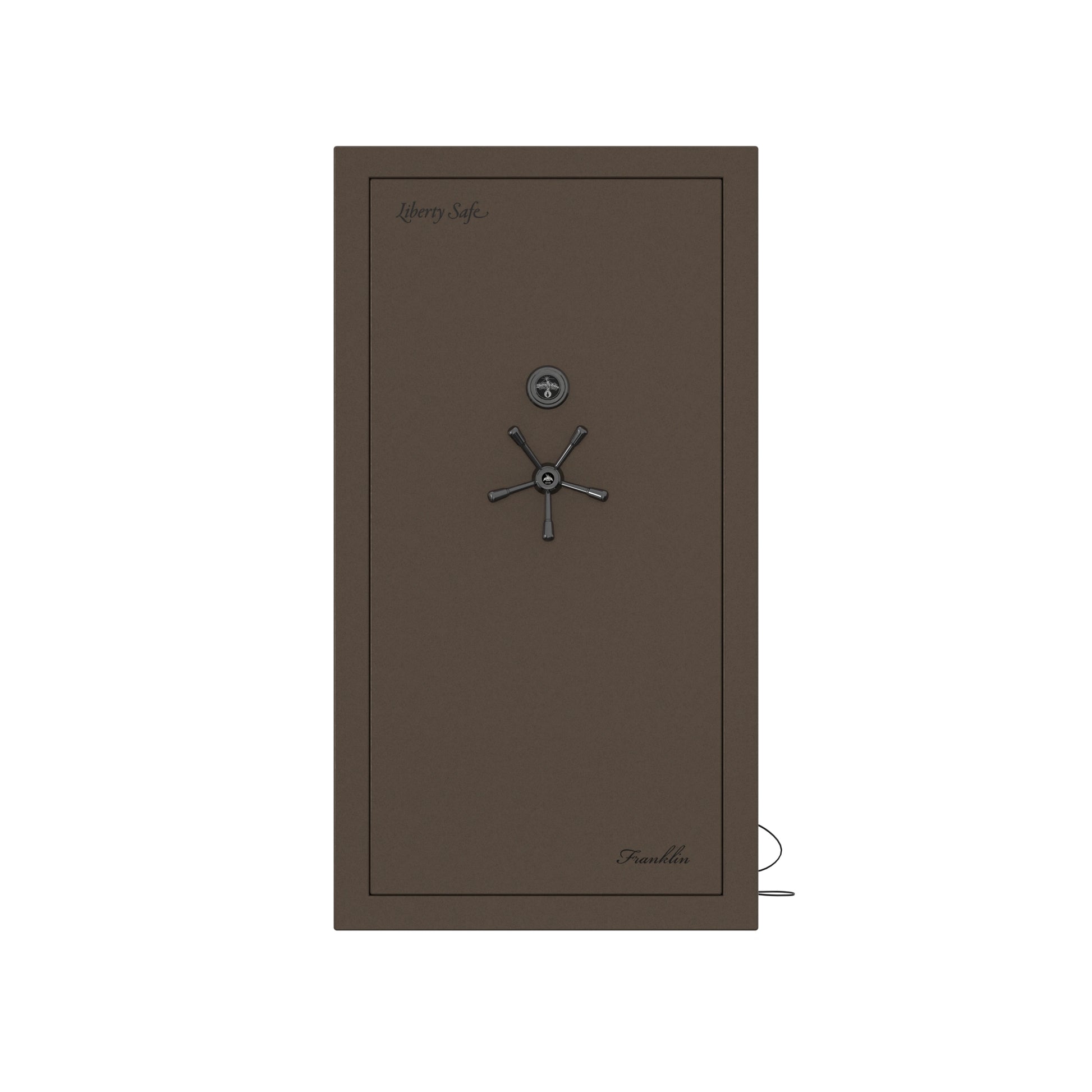

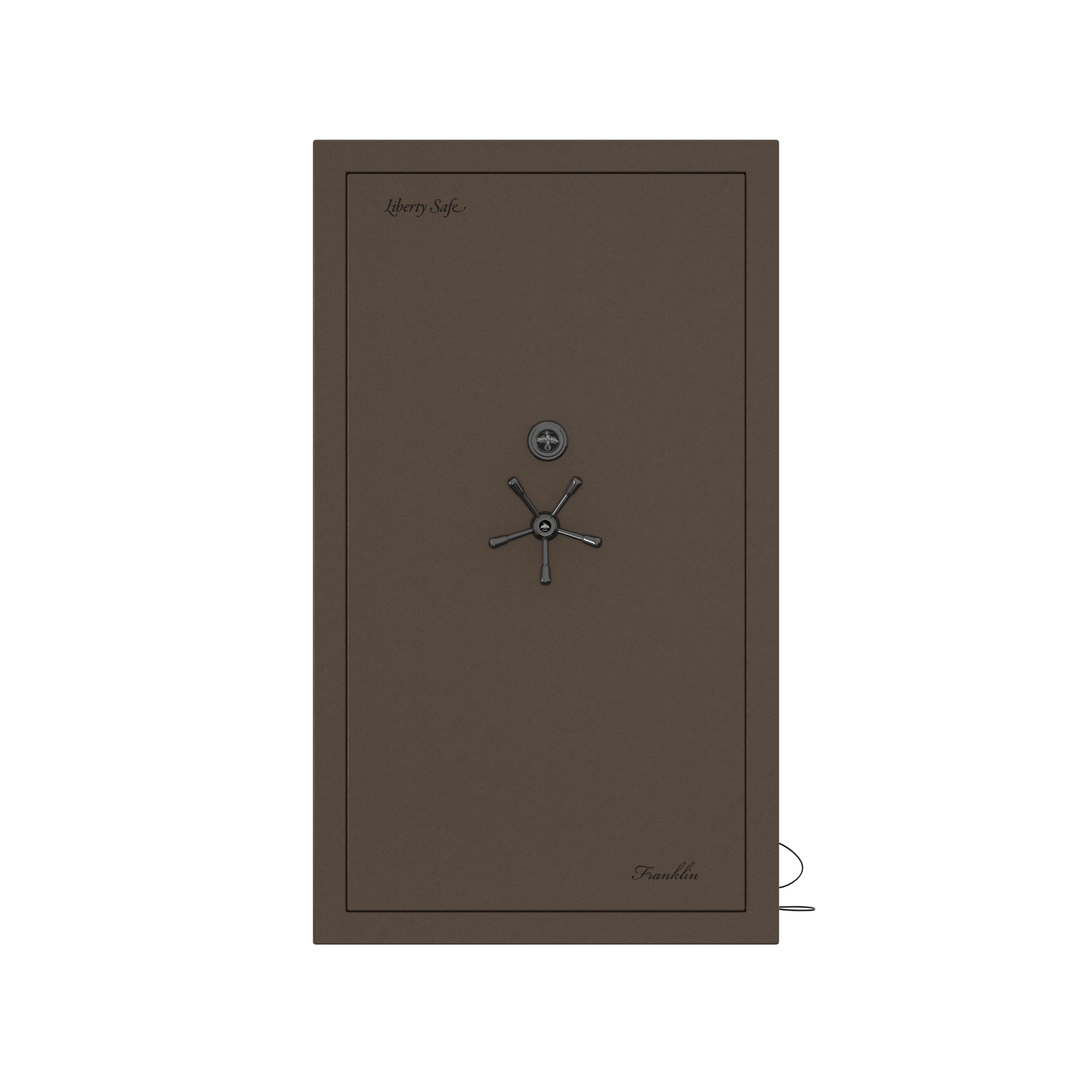

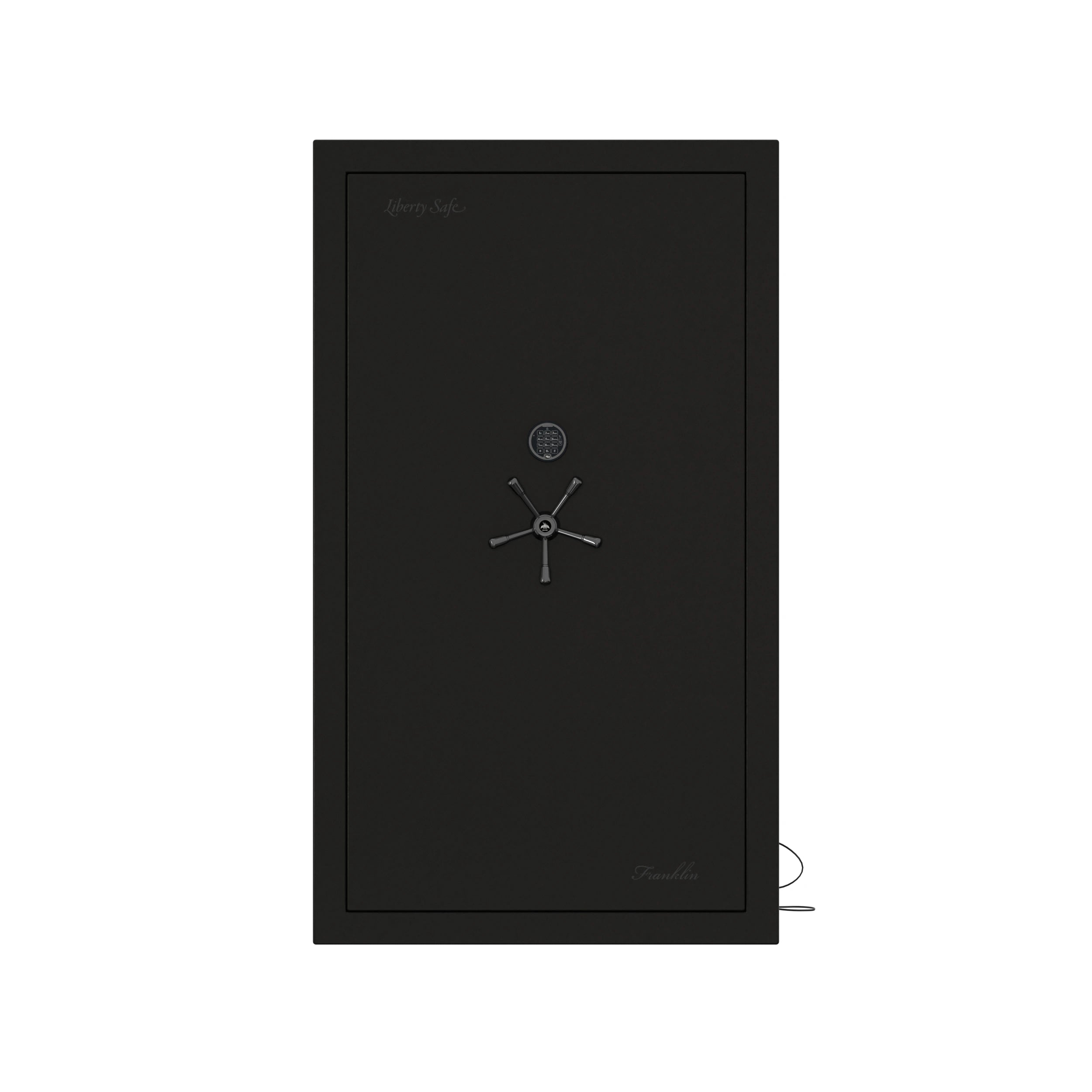

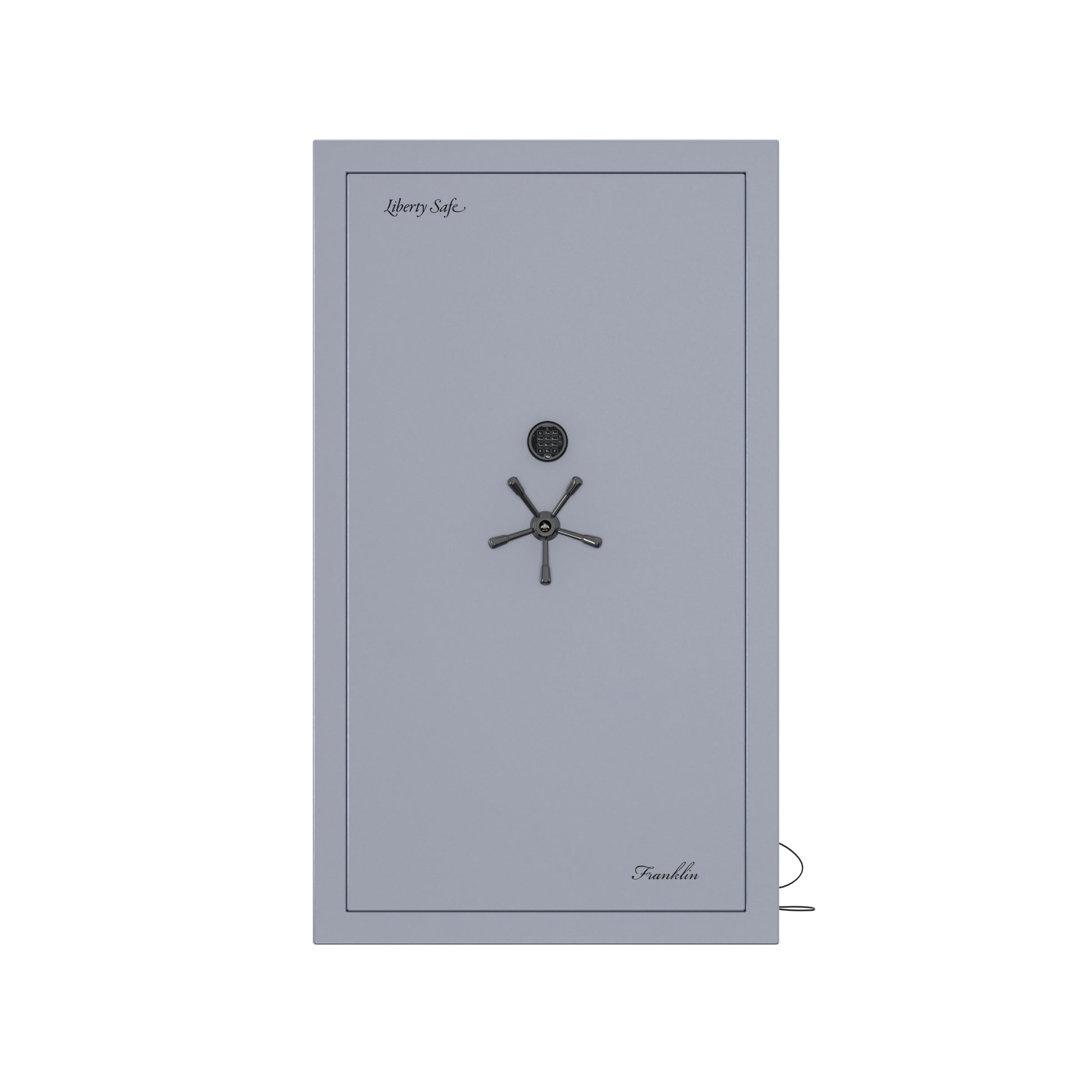

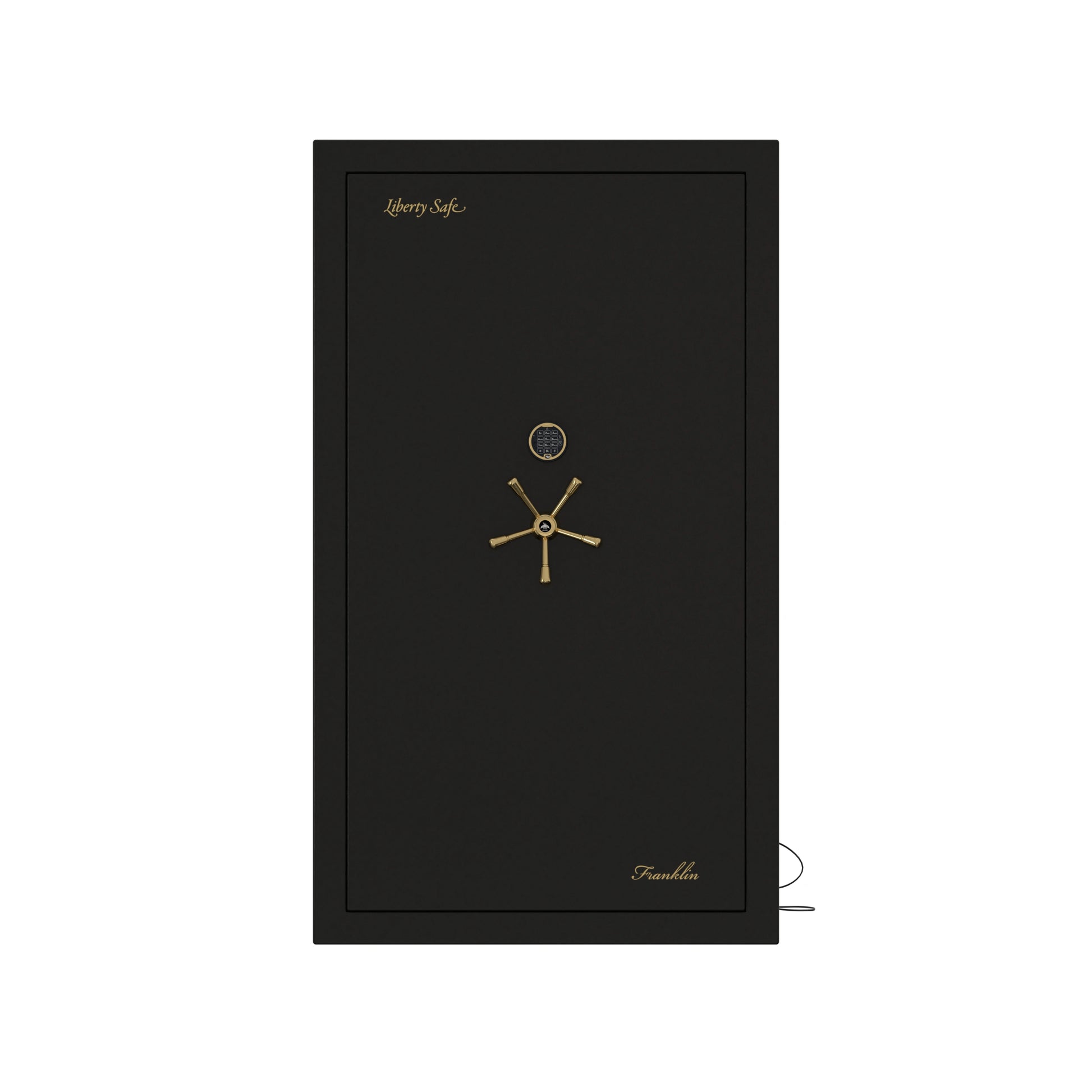

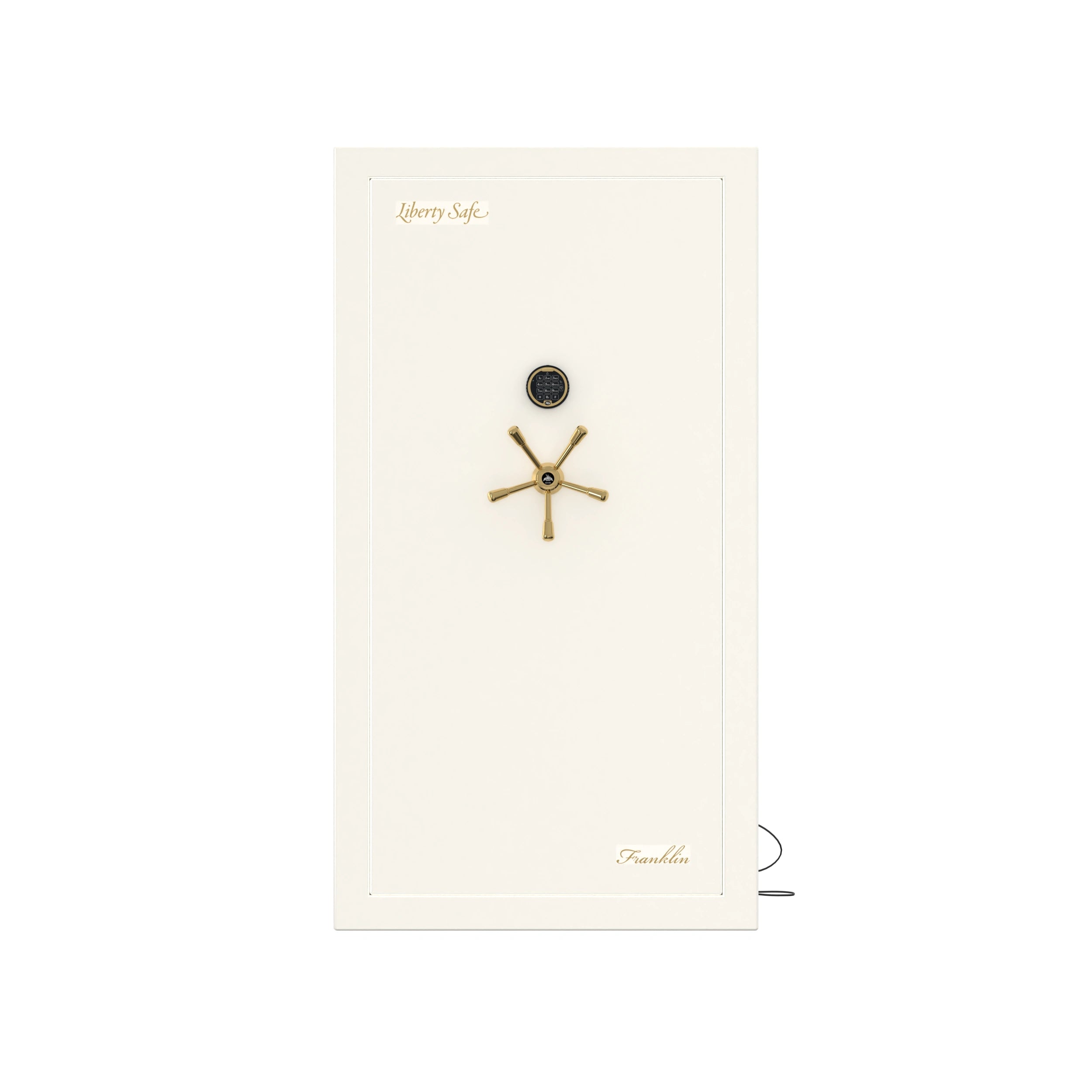

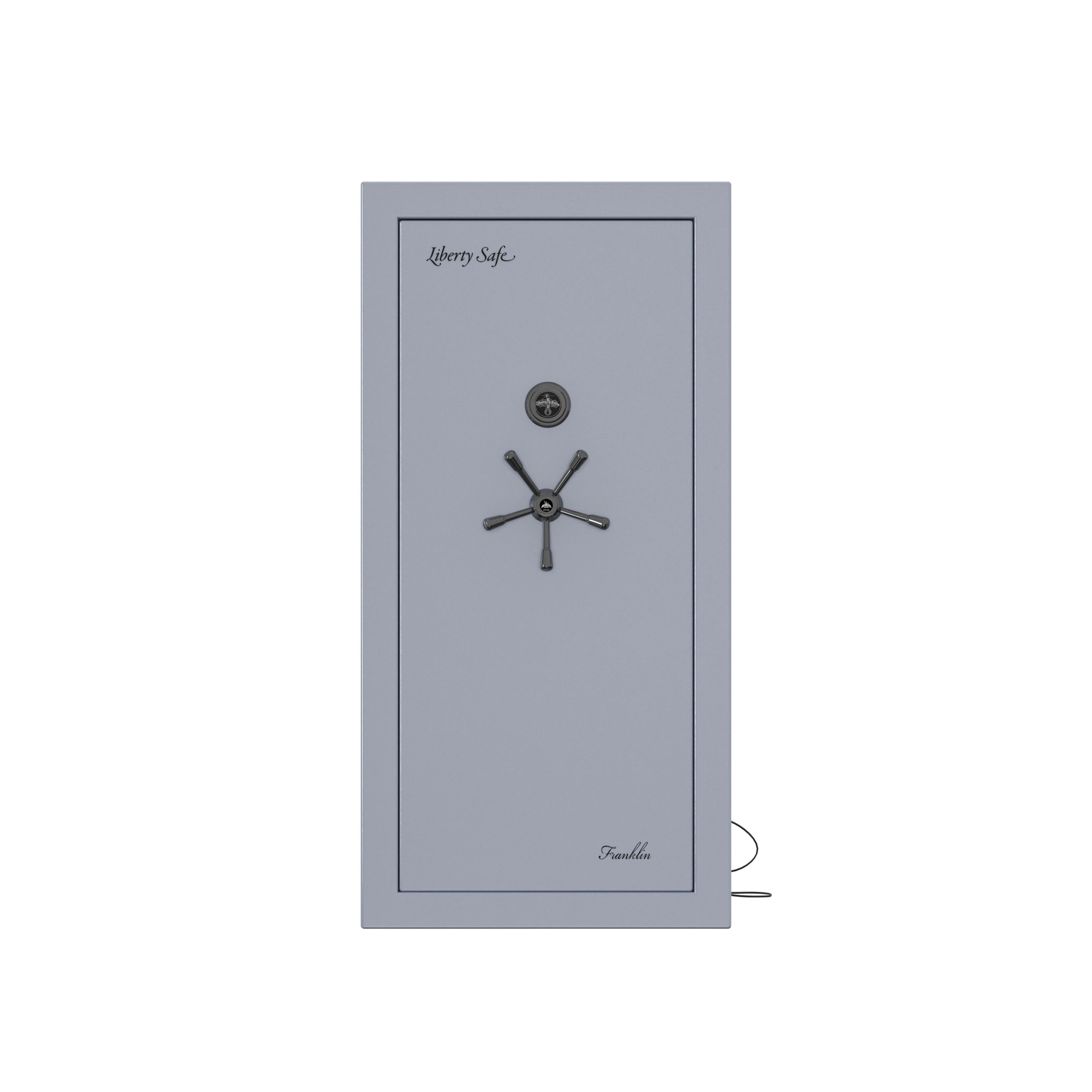

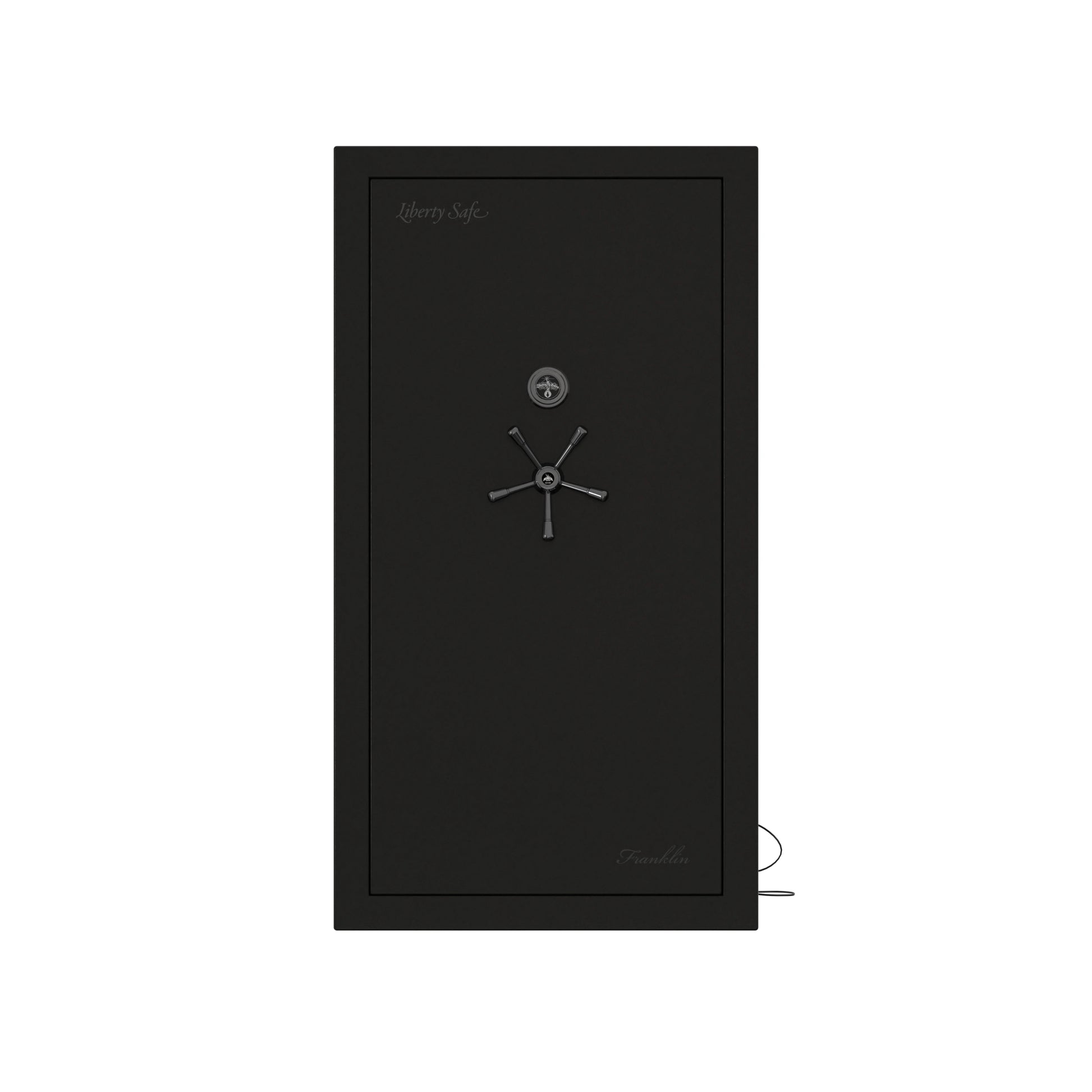

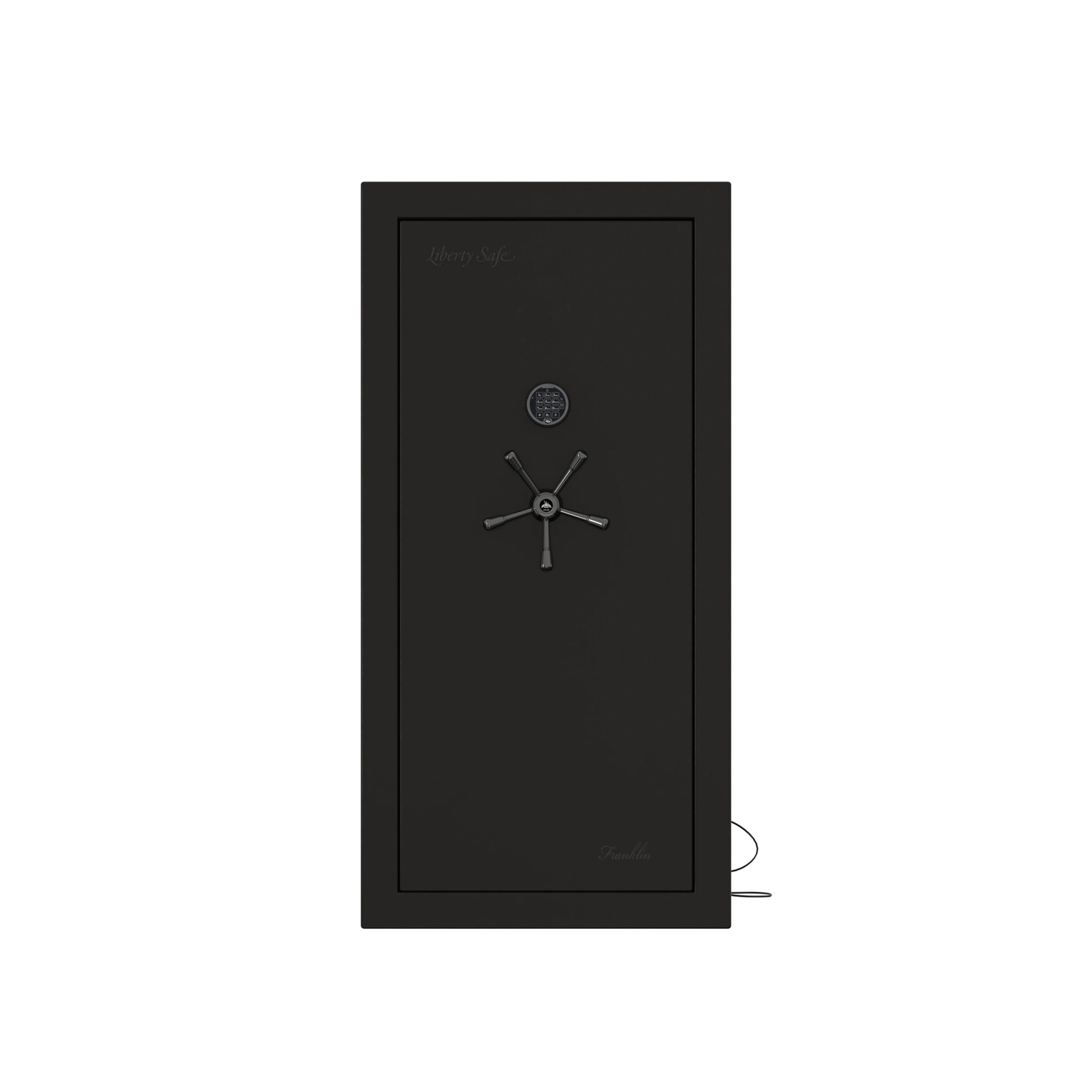

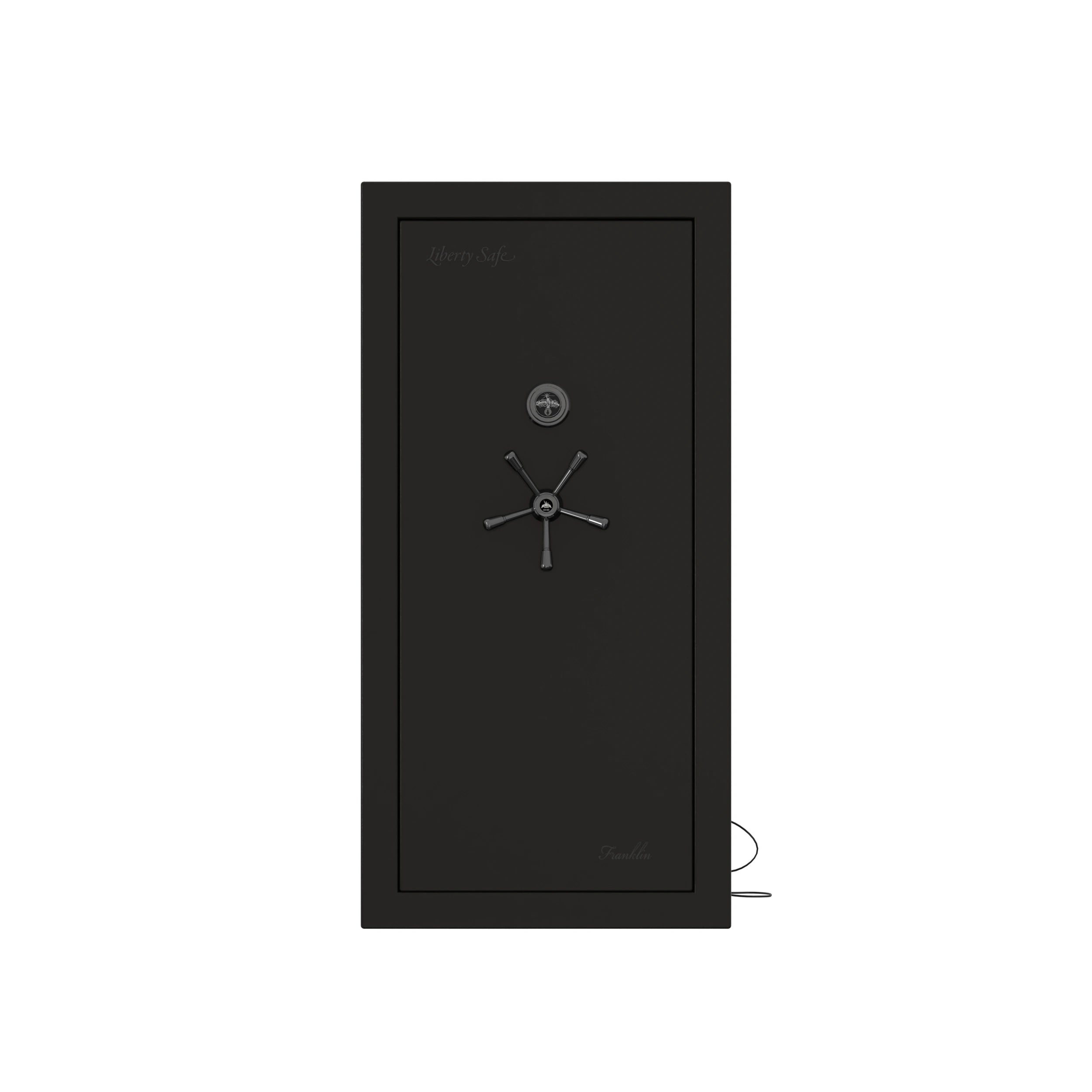

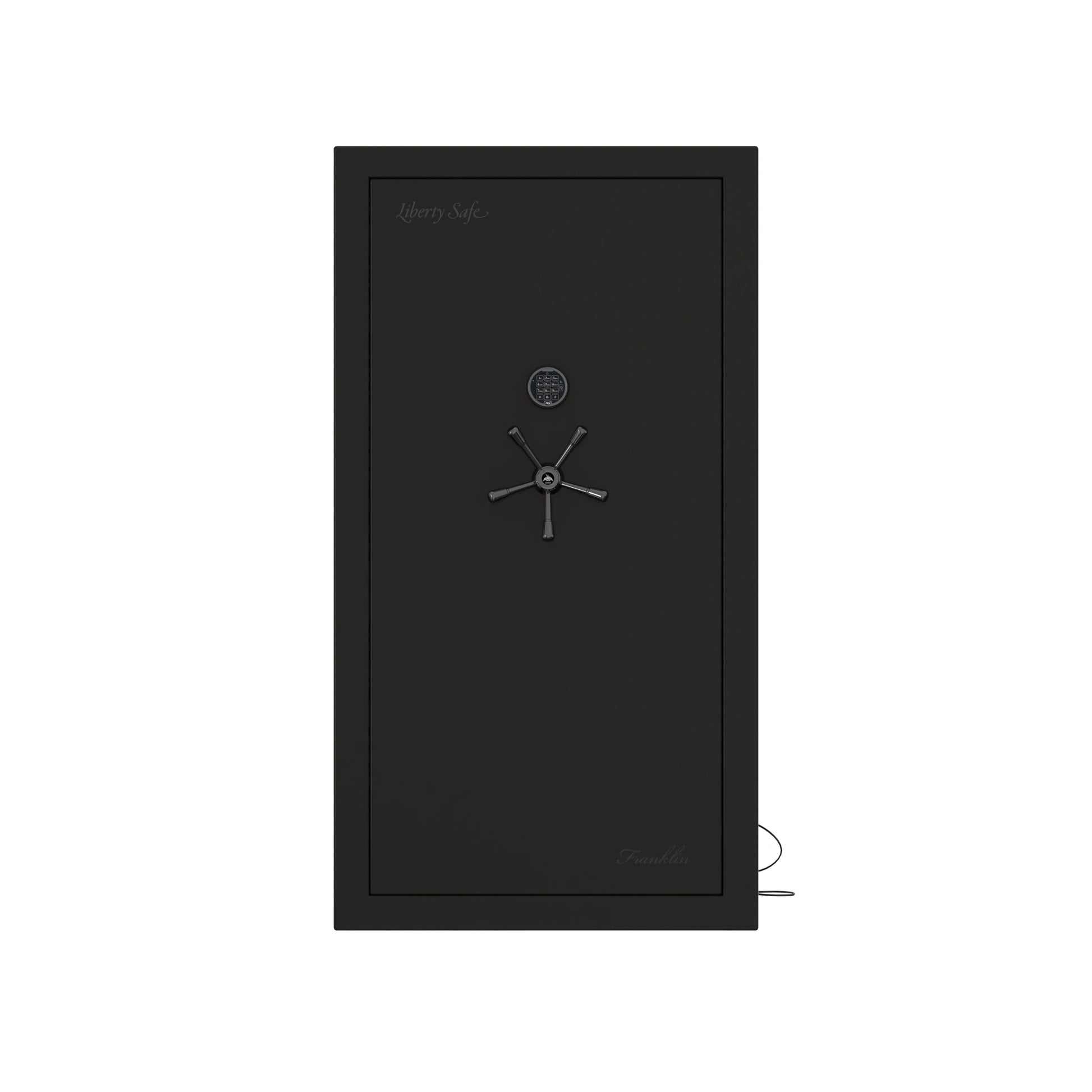

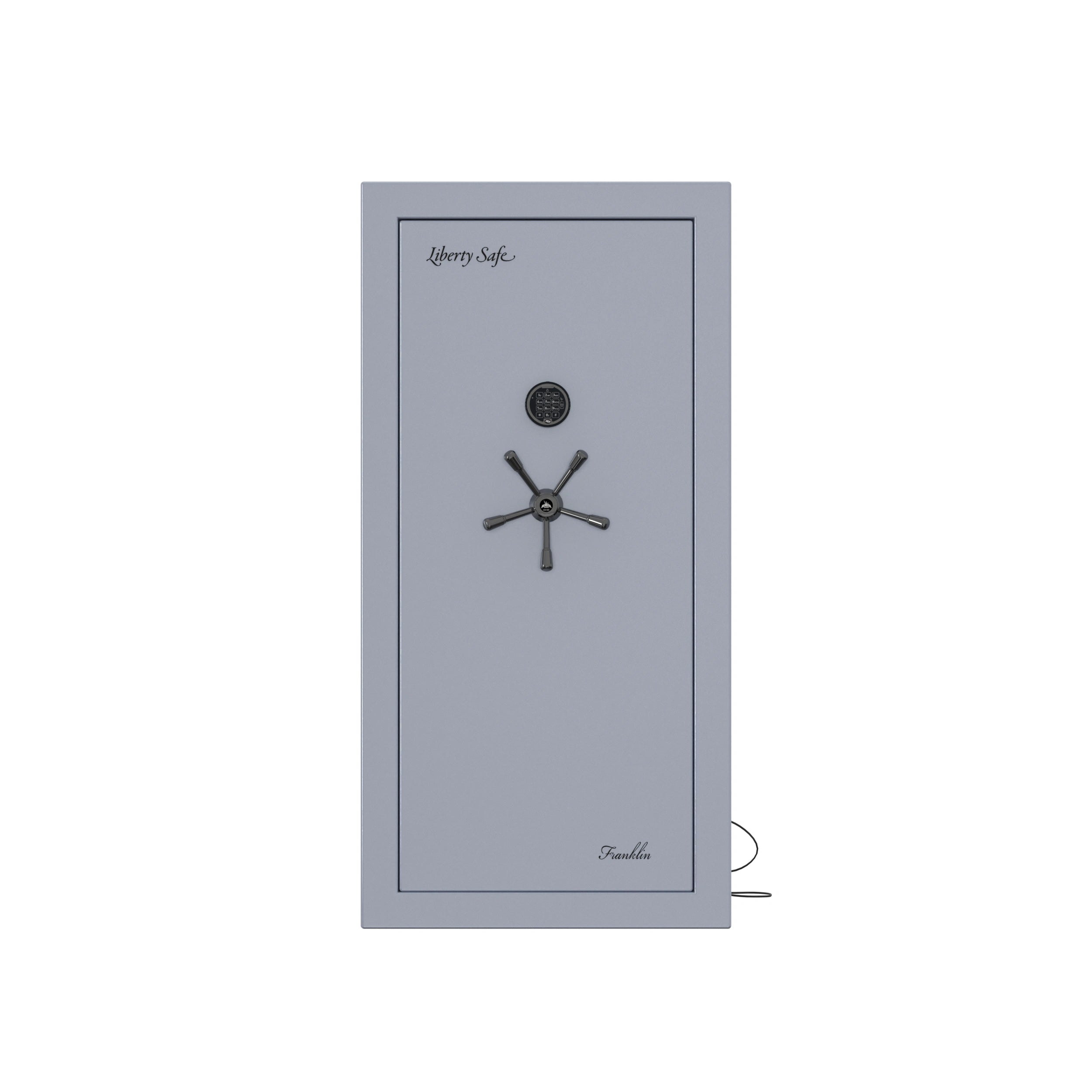

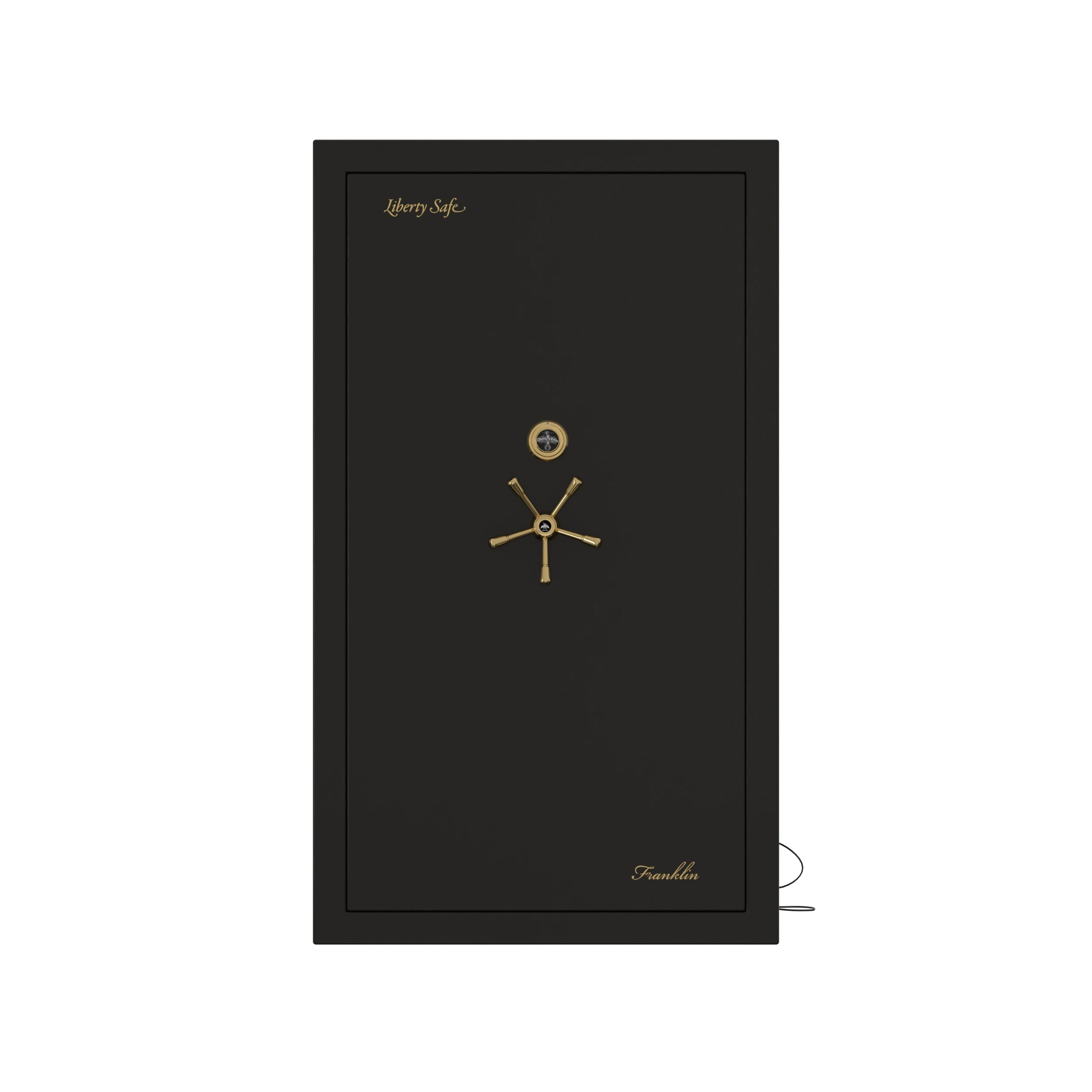

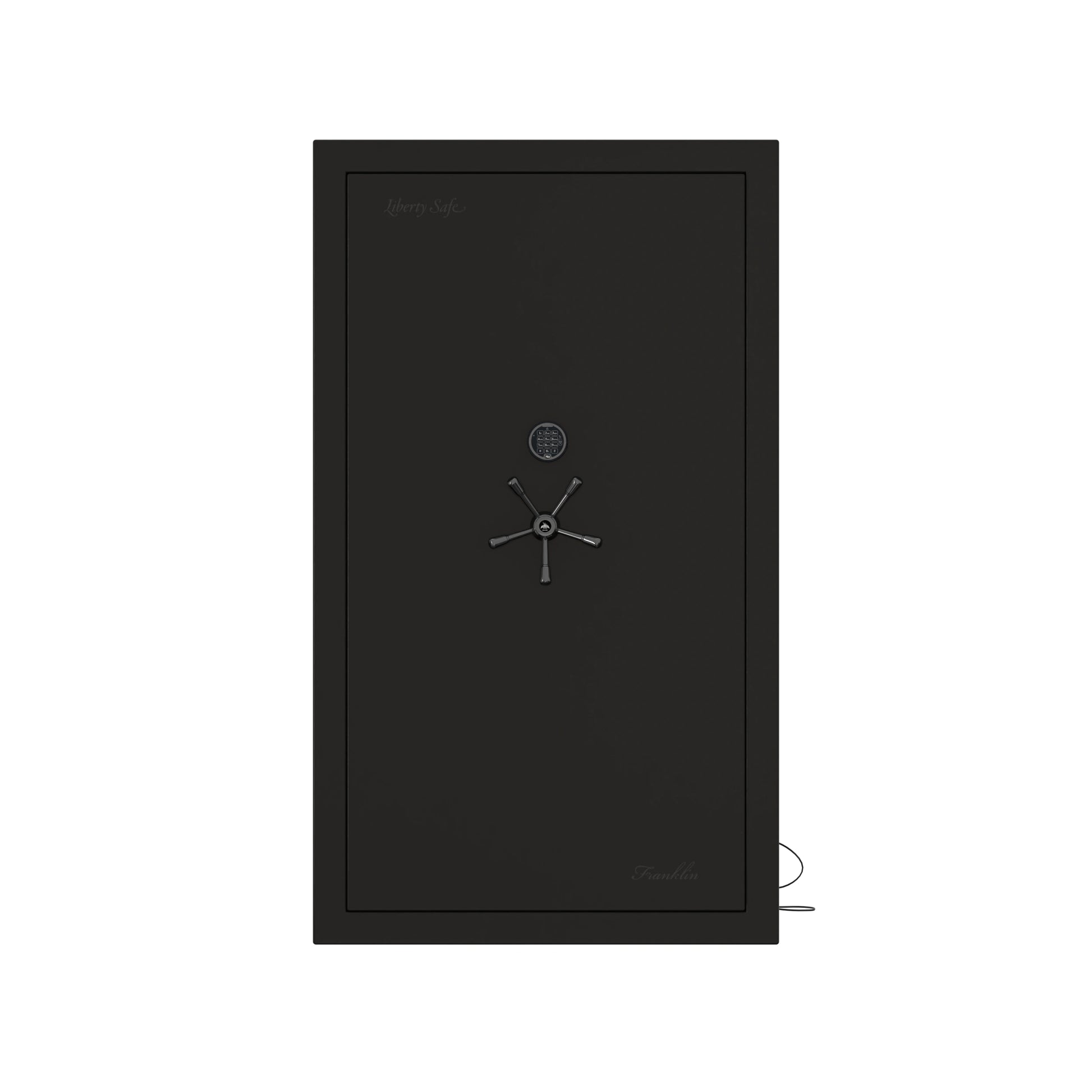

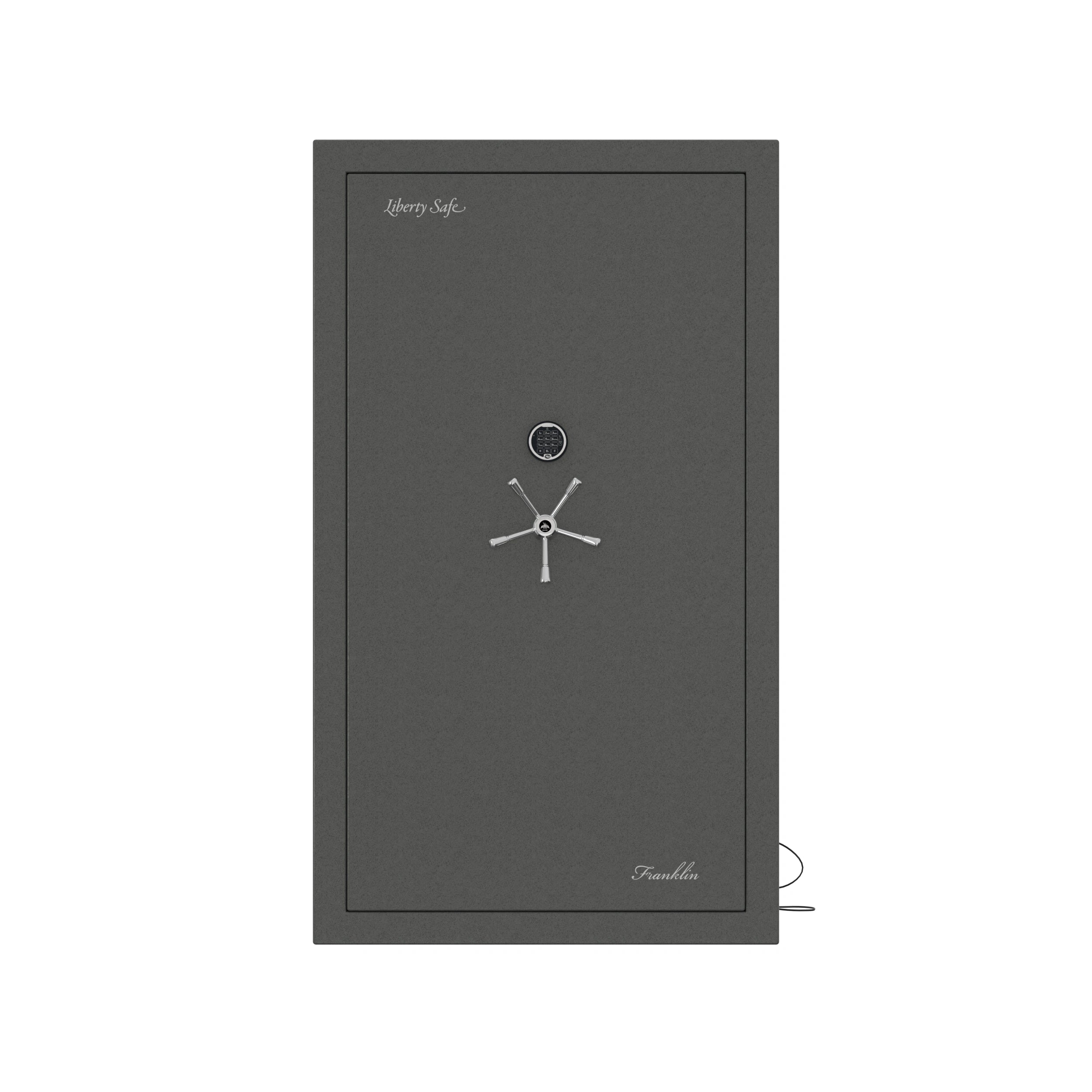

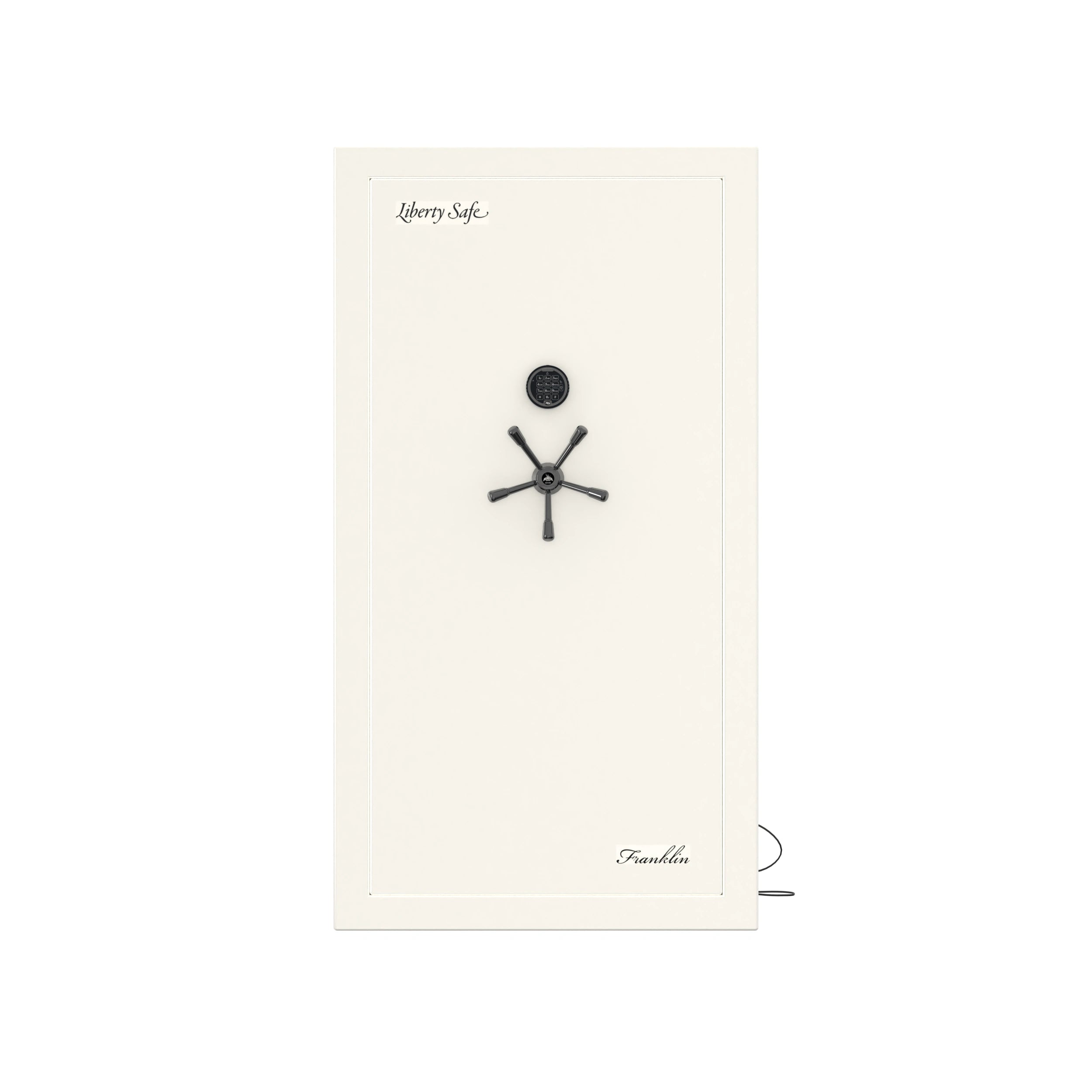

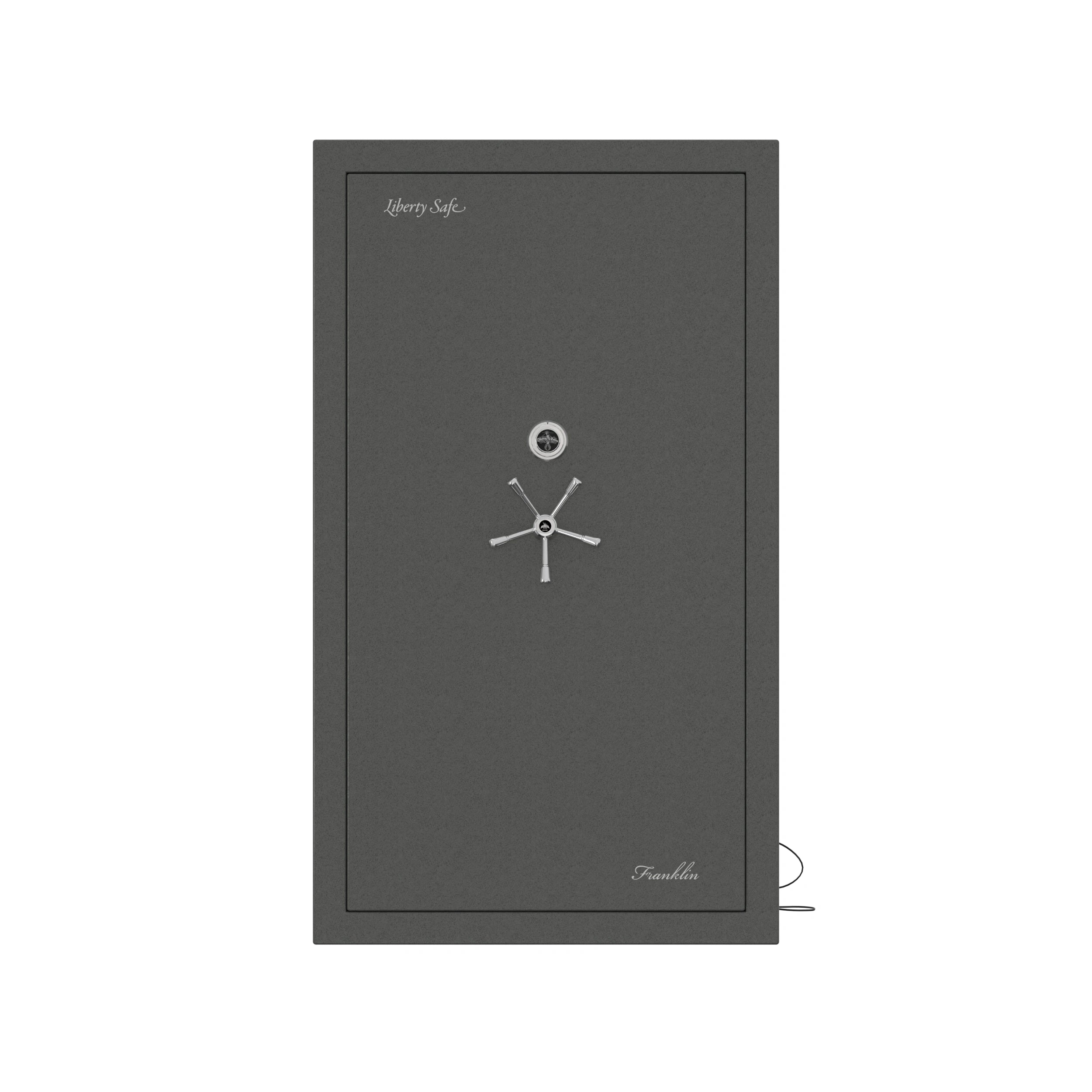

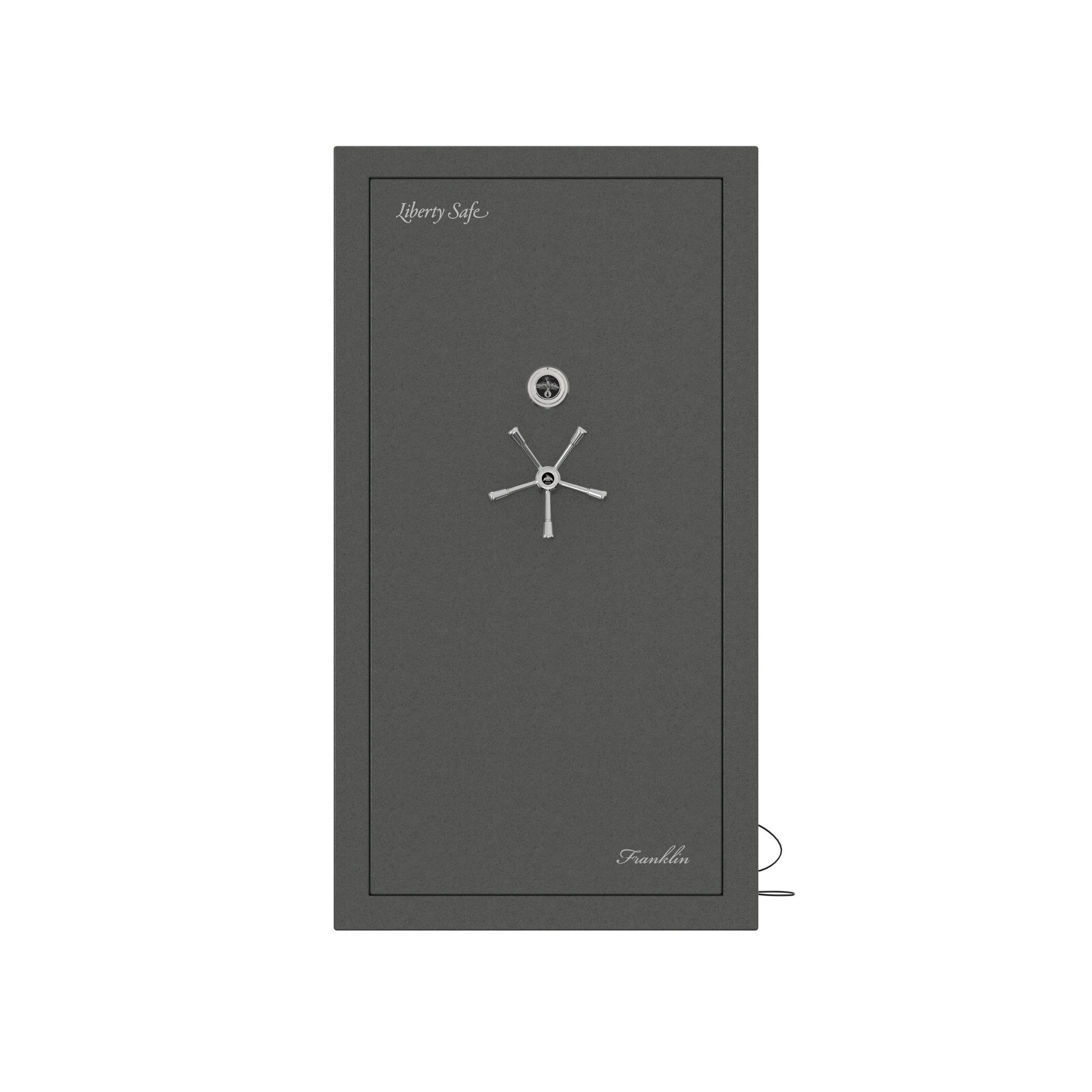

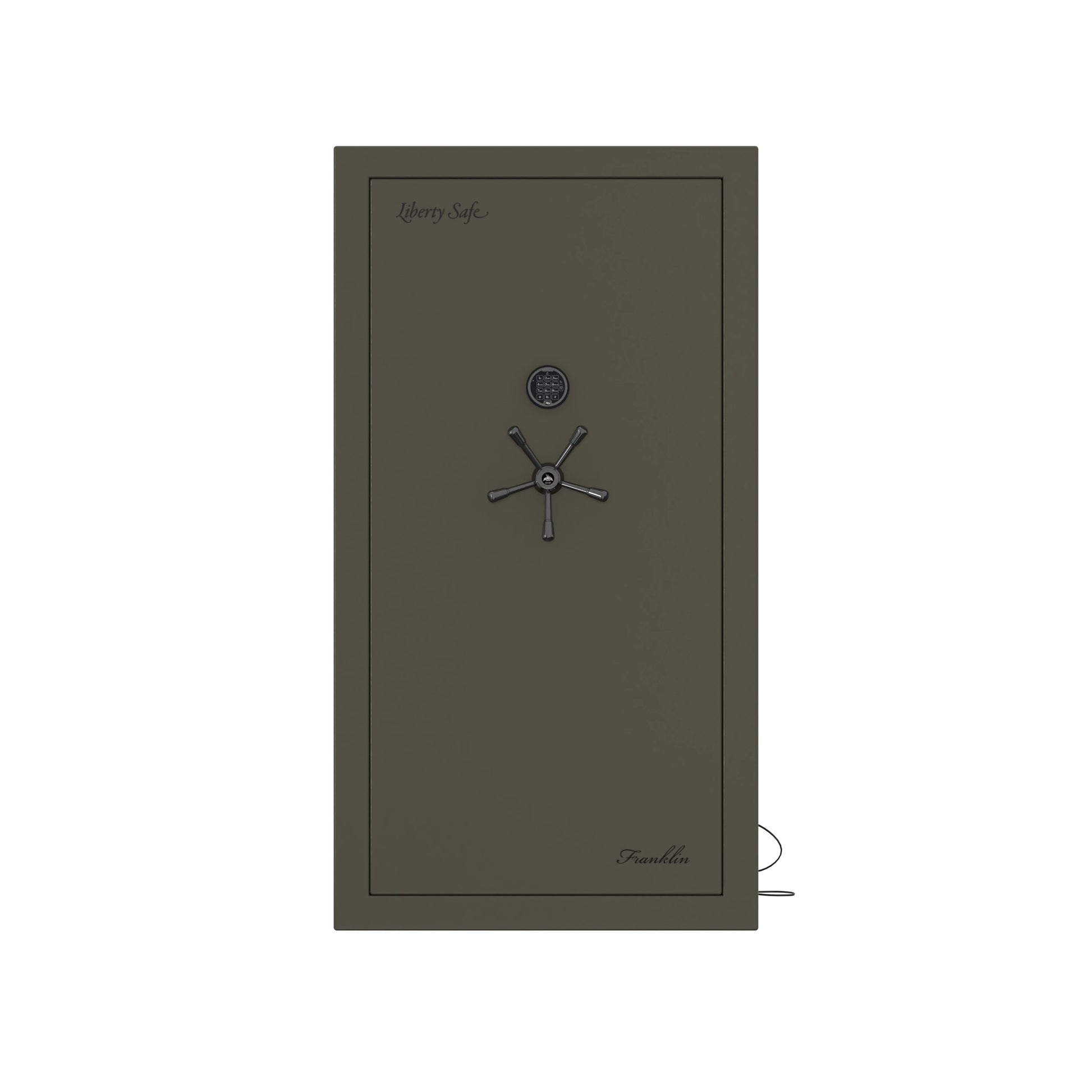

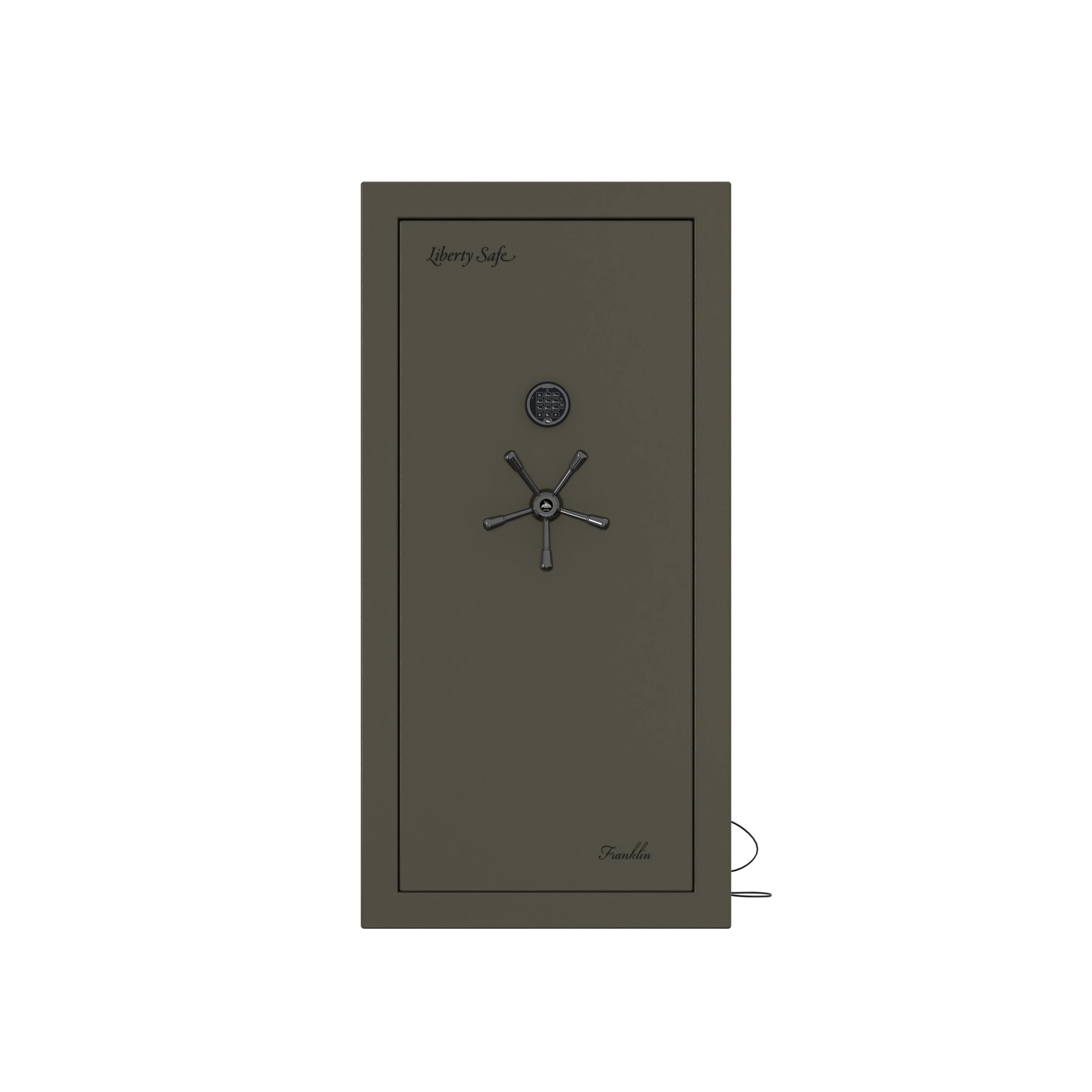

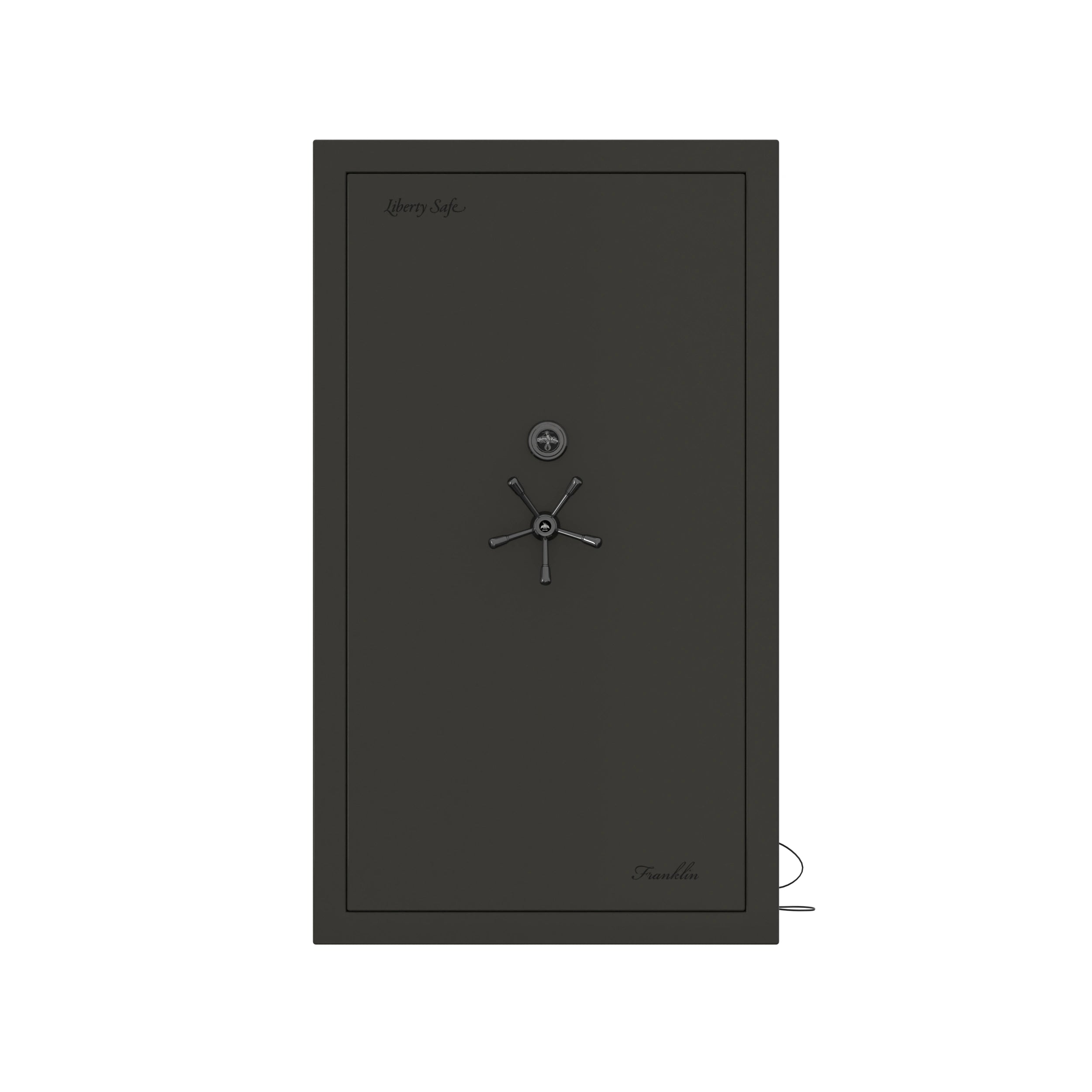

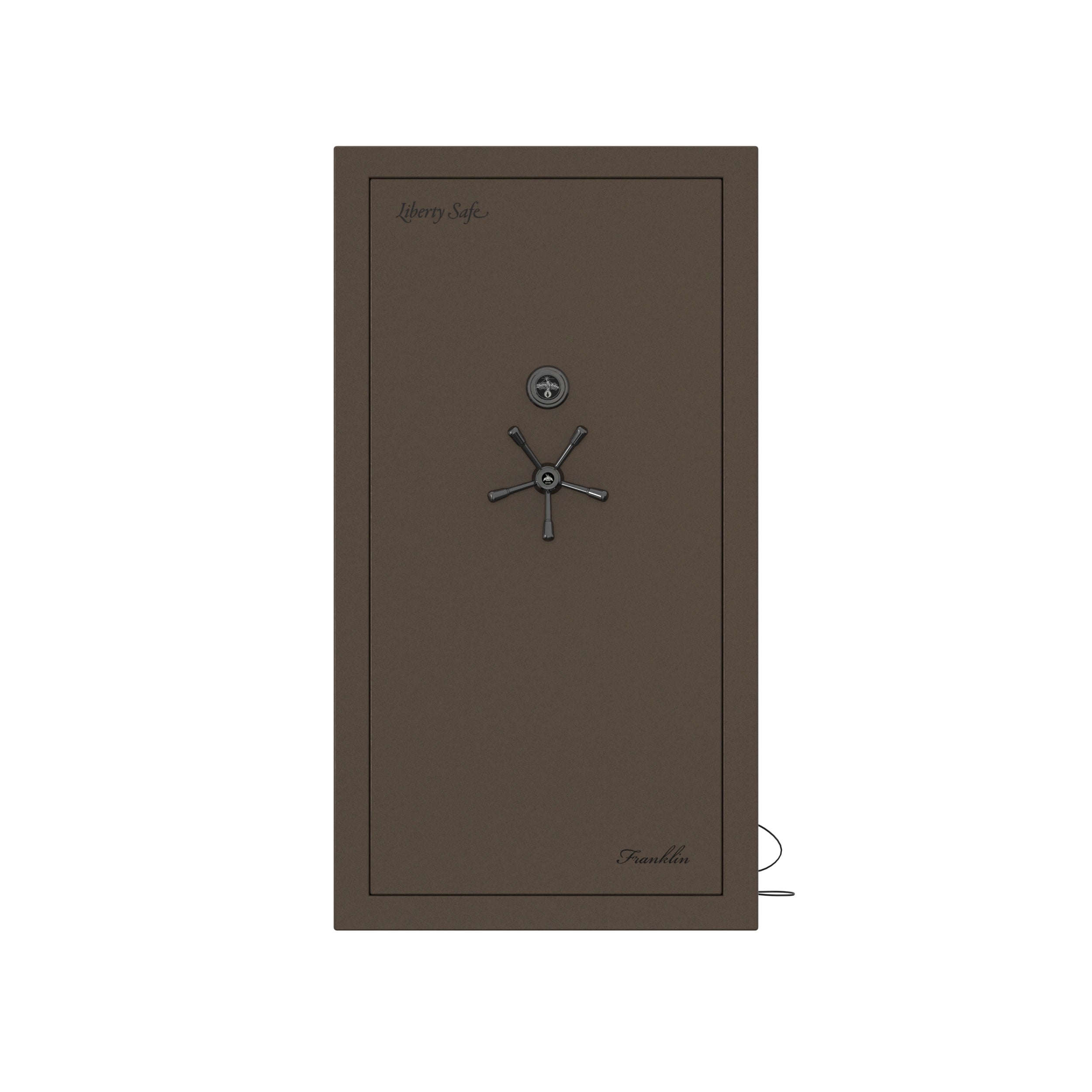

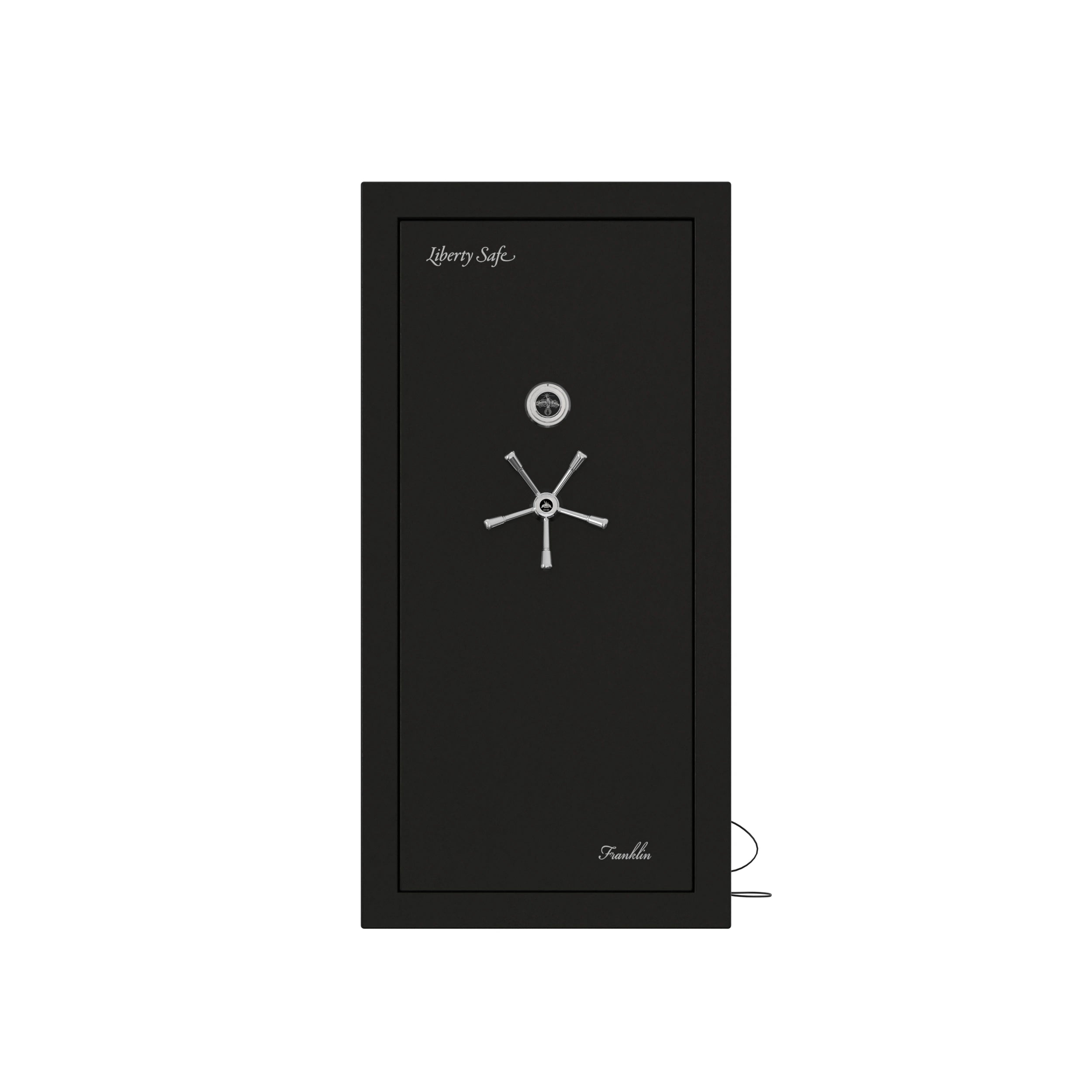

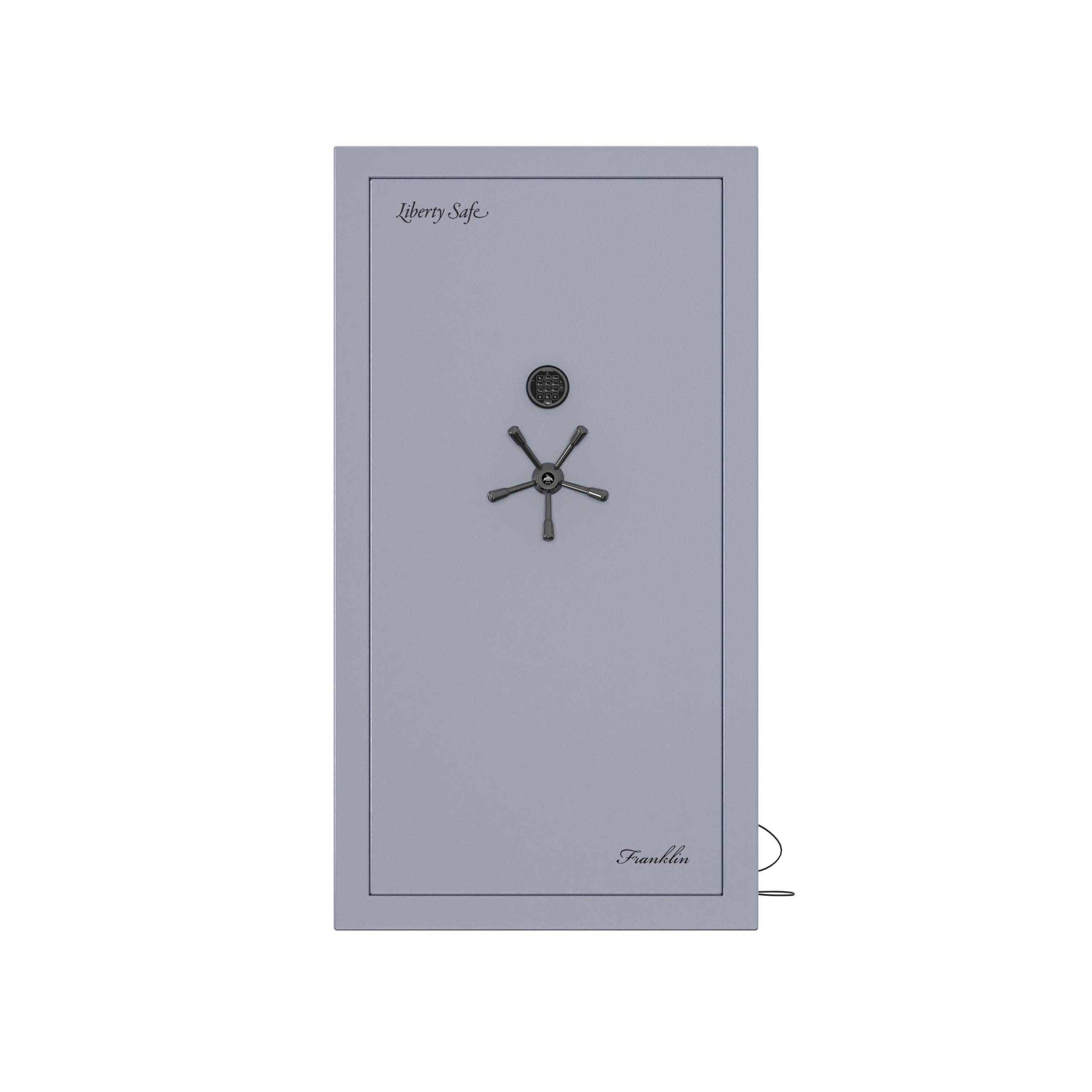

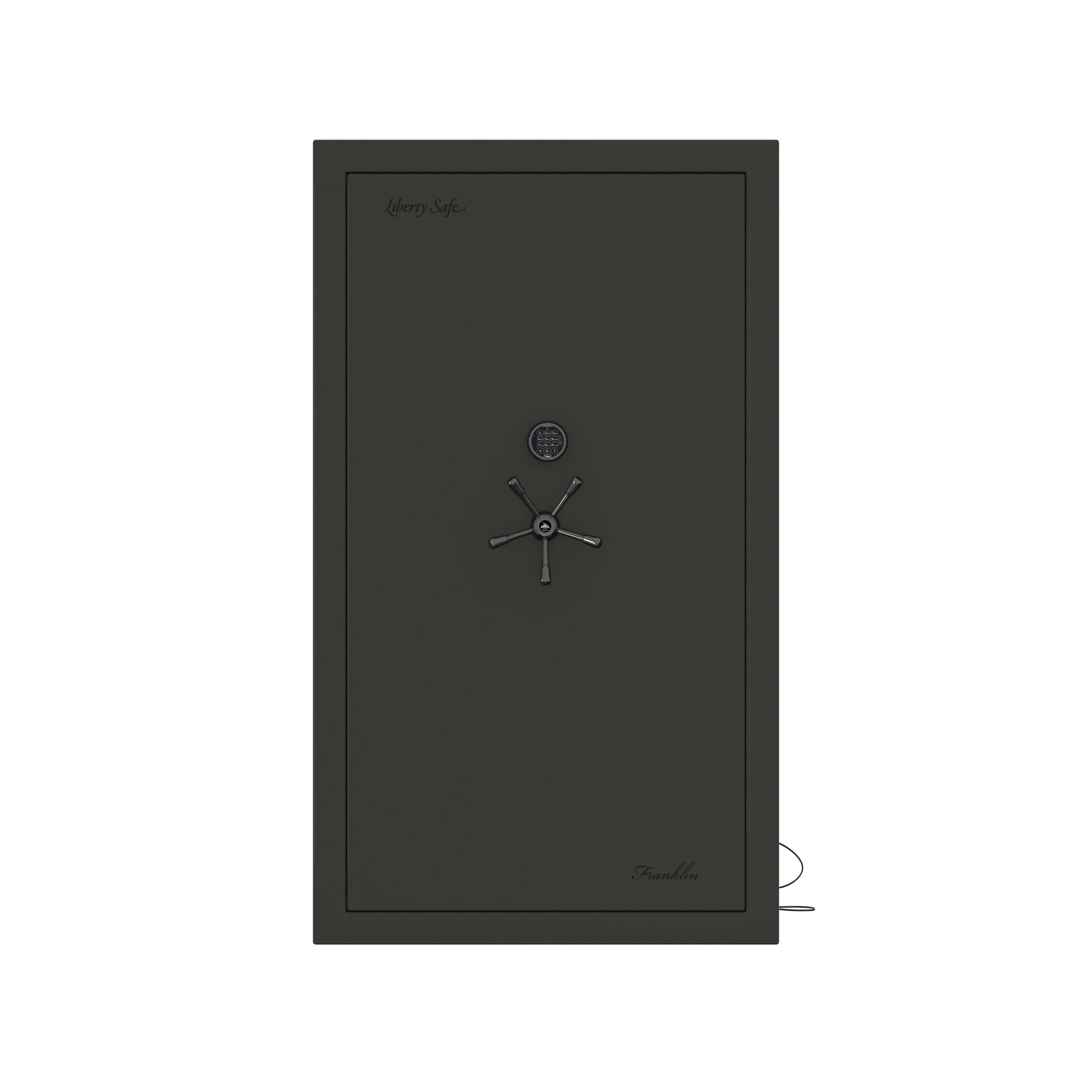

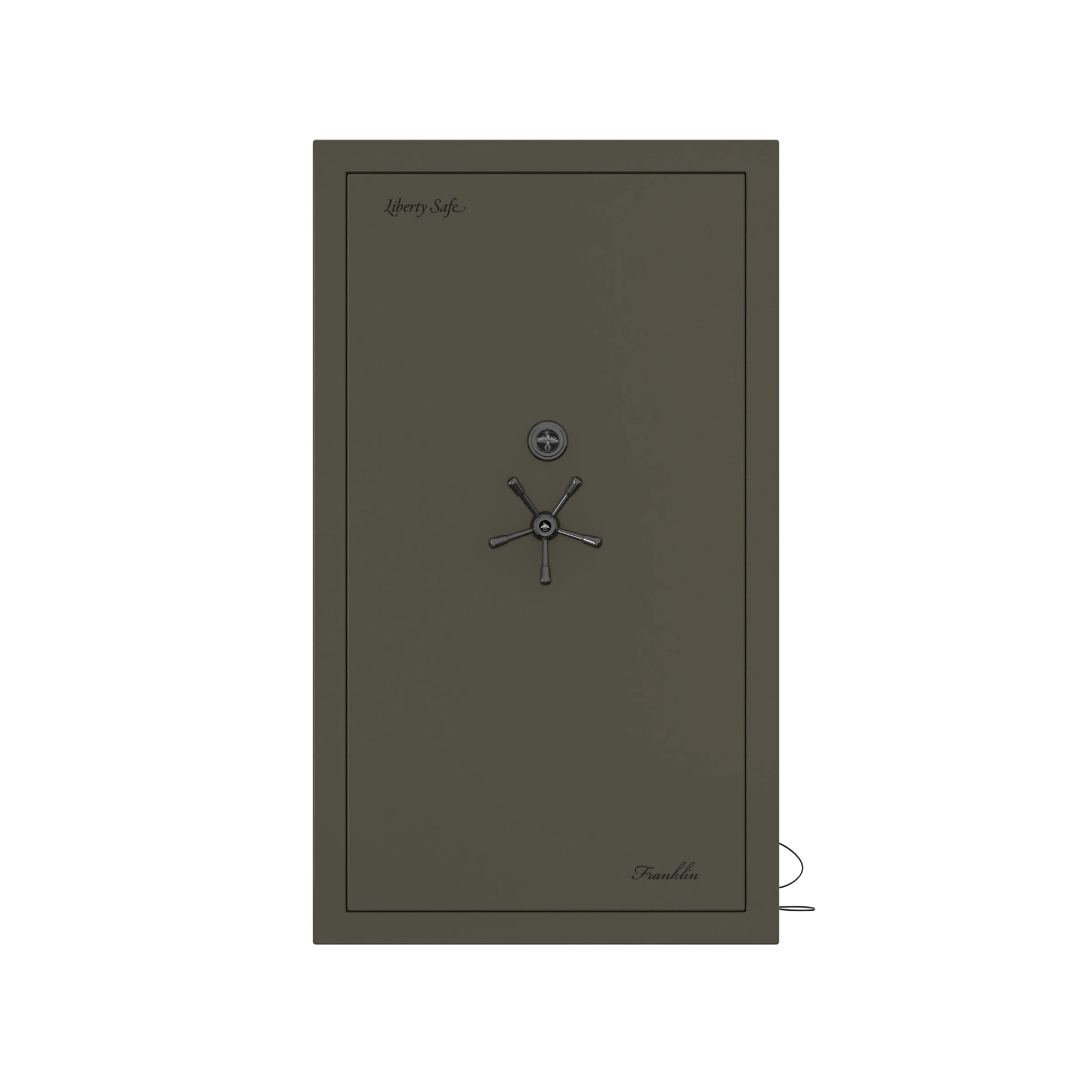

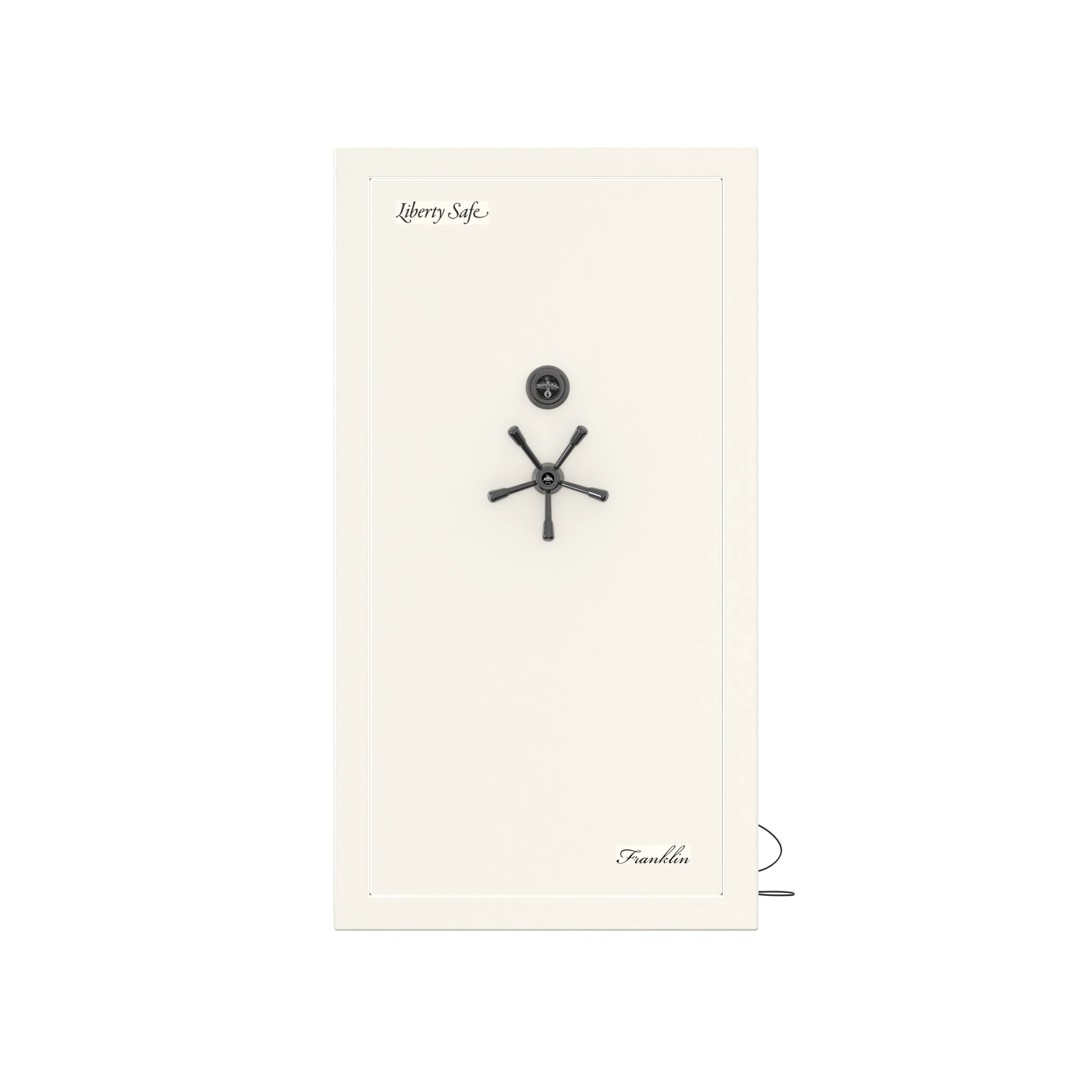

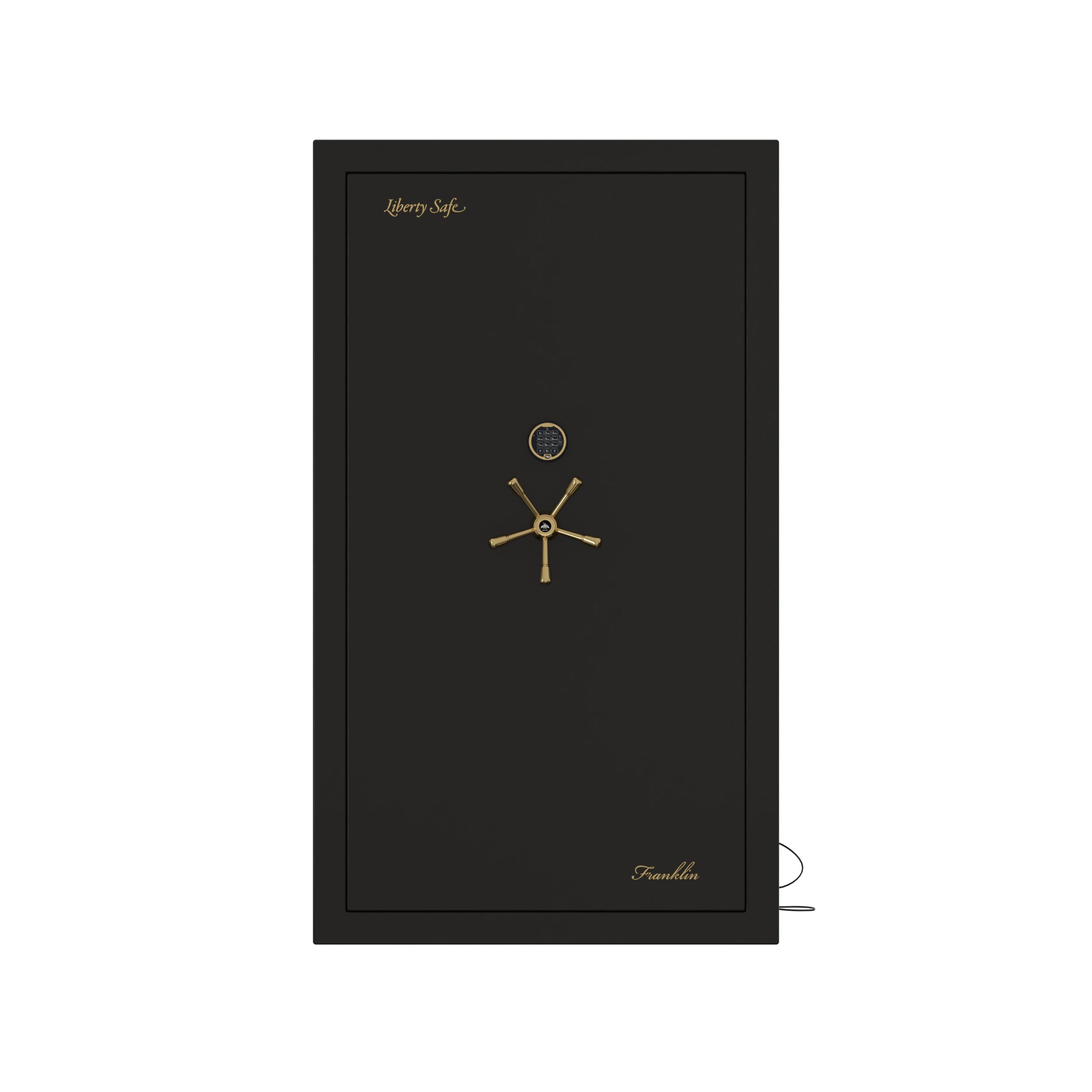

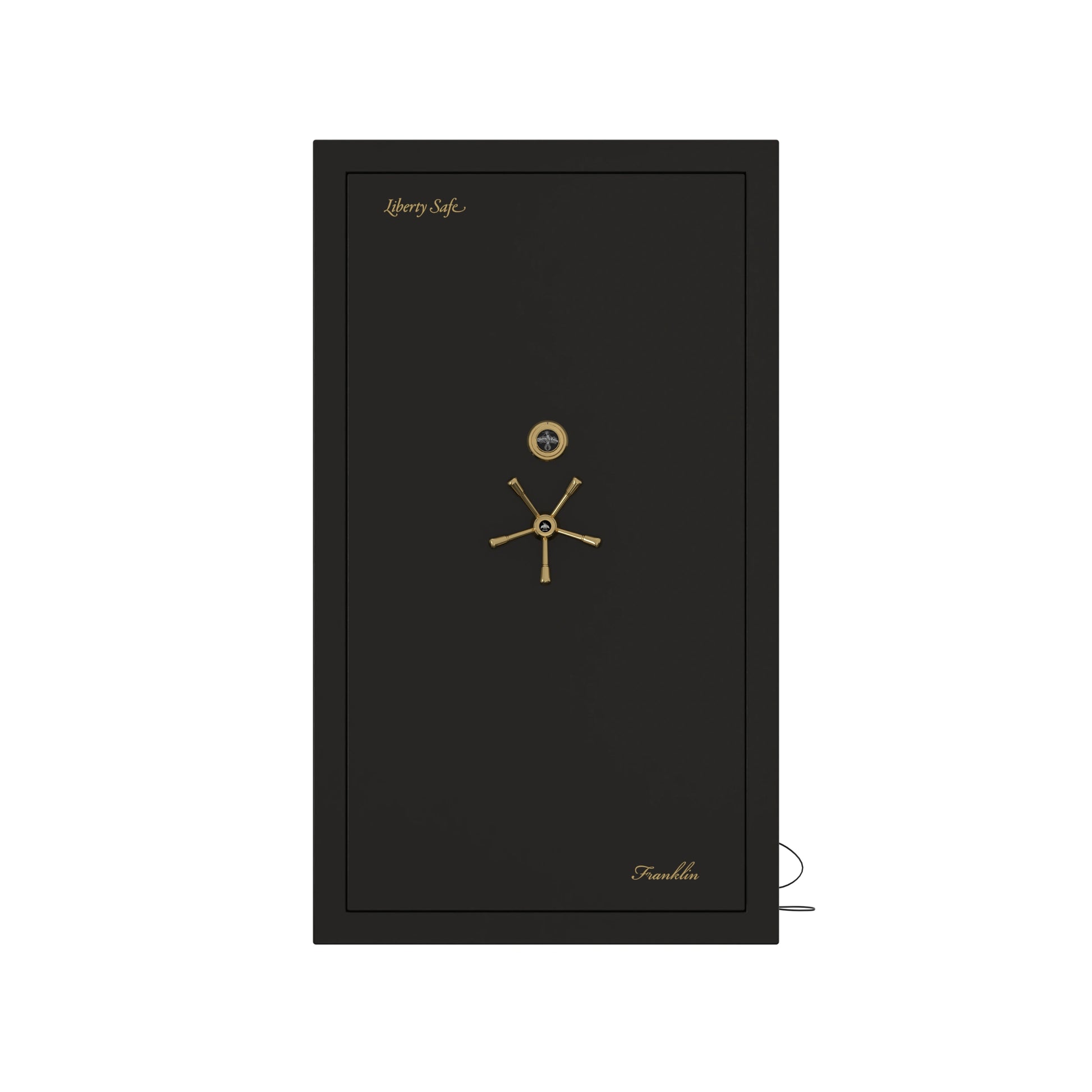

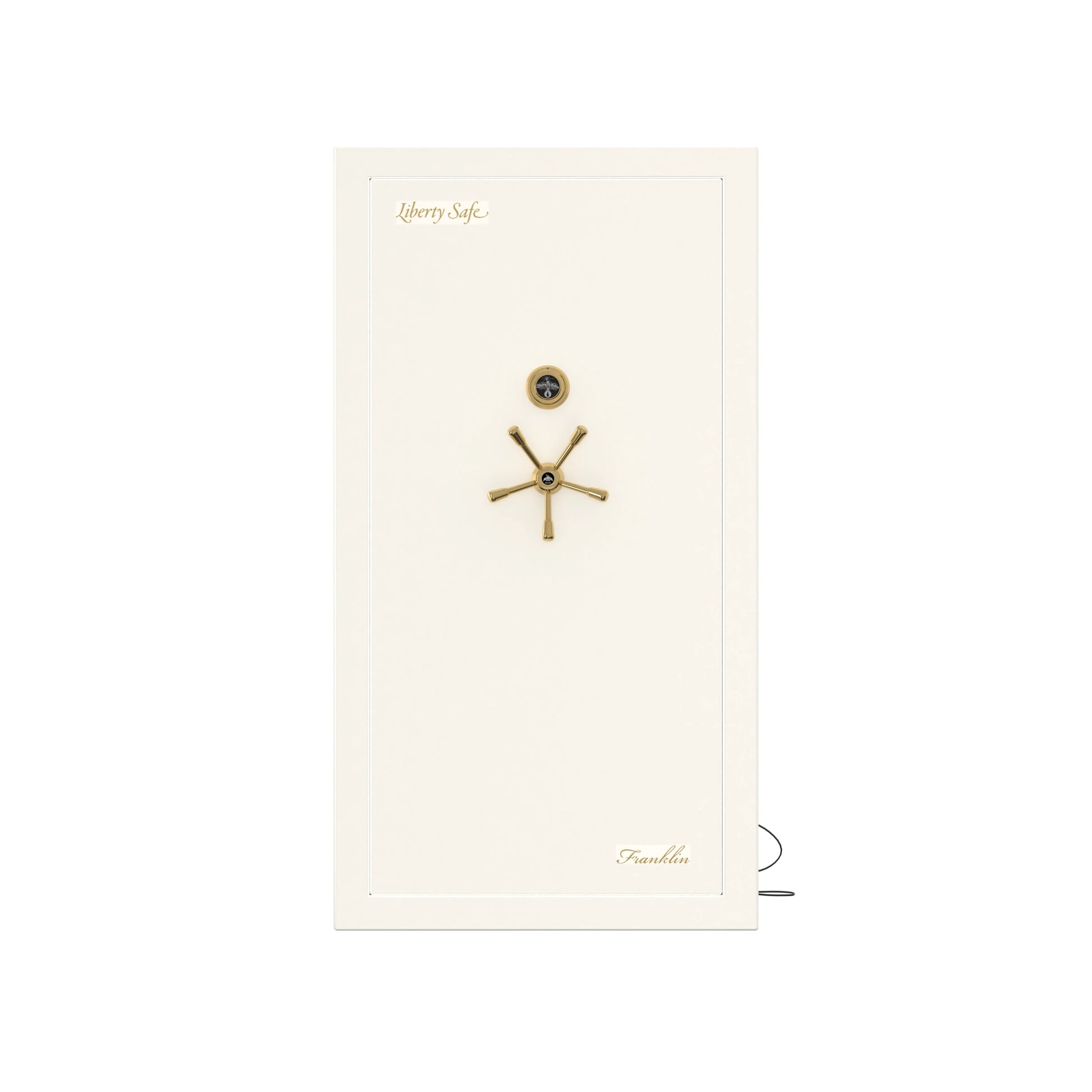

The Franklin Signature™ series represents the pinnacle of style and premium organization in the Franklin line. Crafted in the USA*, this elite gun safe combines our most advanced modular storage system with high-end interior materials. As a 110 min fire safe with premium finishes, the Franklin Signature is designed for those who view safe ownership as a long-term investment in both security and aesthetics.
With a luxurious diamond-stitched interior backwall and door panel, the Franklin Signature™ ensures robust defense against extreme heat and forced-entry threats while serving as a beautiful centerpiece in your home or office.
| |
|
|
|
|
| Safe Size |
29 |
40 |
45 |
50 |
| Long-Gun Storage |
29 |
34 |
45 |
45 |
| Thickness of Steel |
11 Gauge |
11 Gauge |
11 Gauge |
11 Gauge |
| # of Locking Bars |
10 |
13 |
12 |
15 |
| Locking Bar Width |
4" |
4" |
4" |
4" |
| Locking Bar Thickness |
1/4" |
1/4" |
1/4" |
1/4" |
| Ext. Dimensions H x W x D |
60" x 30" x 27.5" |
66.5" x 36" x 27.5" |
60.5" x 42" x 27.5" |
72.5" x 42" x 27.5" |
| Exterior Cubic Feet |
25.7 |
38.1 |
40.4 |
48.1 |
| Int. Dimensions H x W x D |
54.5" x 25.25" x 20.5" |
61.25" x 32.75" x 21" |
55" x 38" x 19" |
67" x 38" x 21" |
| Interior Cubic Feet |
14.5 |
20.9 |
24.8 |
30.1 |
| Minimum Doorway Required |
29.5" |
29.5" |
30" |
29.5" |
| Weight |
760 lbs. |
910 lbs. |
976 lbs. |
1,060 lbs. |
MEASUREMENTS: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.
DIMENSIONS: Dimensions listed are for the safe footprint and are rounded up to the nearest quarter inch. To be sure the safe will fit in your space, add ¼” to the depth for the outlet kit, 1.5” for a plug, and 3” for the handle.
GUN COUNT: Gun capacity may vary depending upon size of guns and scopes.
Liberty reserves the right to change or update product specifications, colors and model sizes at anytime.
Made in the U.S.A. from U.S. and Global Parts.
You don’t have to move a 245+ lb safe on your own. While picking up a safe from a dealer or requesting curbside delivery are options, 98% of Liberty Safe customers choose professional installation for the convenience it provides:
- We automatically route your order to the nearest Liberty Safe Dealer. Depending on the location, Liberty Safe may handle your delivery directly.
- After you place your order, your dealer will reach out within 3 business days to provide an estimated delivery time and answer any questions. You will receive your local dealer's contact information with your order.
- When your safe is ready, the dealer arranges delivery to your home in a discreet, unmarked truck.
- The delivery crew uses specialized equipment to safely place your safe without damaging your home.
- Your safe is leveled and bolted down securely from the inside for maximum security.
- You receive a tutorial on setting the code and operating your safe so you aren’t left with questions.
PLEASE NOTE: DIFFICULT DELIVERIES
- Due to external terrain, stairway types, second- or multi-floor installations, marble/tile/wood floors, etc., additional charges may apply to complete delivery.
- Any additional access costs, such as tolls, ferry fees, bridge fees, or neighborhood/HOA entry fees, may also be added to the delivery total.
- Our Dealers reserve the right to decline installations and deliveries that involve a risk of personal injury or property damage.
Make sure it fits your space
